Quick Details
-
Name:
-
glue dispensing machine
-
Max move speed:
-
400mm/sec(XY)/200mm/sec(Z)
-
Motor system:
-
Japan highly precise micro-stepping motor
-
Application:
-
Dispensing Solder Paste, Hot Melt Glue,UV,Resin etc
-
Power supply:
-
AC220V 50/60Hz 0.5kw
-
Operation system:
-
LCD panel /Handhold programming device
-
Drive mode:
-
Stepping motor+ belt+ precise linear guide rail W
-
Weight:
-
About 35kg
-
warrty:
-
one year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Seamark ZM/zhuomao
-
Weight (KG):
-
79
-
Name:
-
glue dispensing machine
-
Max move speed:
-
400mm/sec(XY)/200mm/sec(Z)
-
Motor system:
-
Japan highly precise micro-stepping motor
-
Application:
-
Dispensing Solder Paste, Hot Melt Glue,UV,Resin etc
-
Power supply:
-
AC220V 50/60Hz 0.5kw
-
Operation system:
-
LCD panel /Handhold programming device
-
Drive mode:
-
Stepping motor+ belt+ precise linear guide rail W
-
Weight:
-
About 35kg
-
warrty:
-
one year

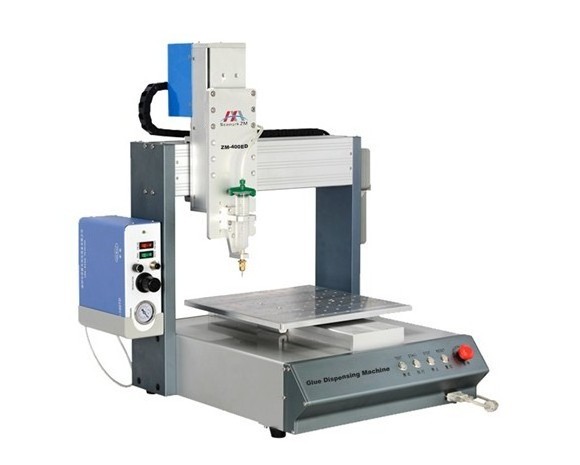

factory price automatic cnc glue dispenser robots ZM-300ED solder paste dispenser
Main Specification:
|
Model |
ZM-300ED |
|
Working Area/mm |
300(X)*300(Y)*100(Z) (Optional) |
|
Size/mm |
490(L)*528(W)*679(H) |
|
Max load Y/Z |
7kg/3kg |
|
Max move speed |
400mm/sec(XY)/200mm/sec(Z) |
|
Drive mode |
Stepping motor+ belt+ precise linear guide rail |
|
XYZ Repeatability |
±0.03mm |
|
Program capacity |
999 parameter files(65535 points can be saved per file) |
|
Operation system |
LCD panel /handhold programming device |
|
Motor system |
Japan highly precise micro-stepping motor |
|
Movement pattern |
Point to point in XYZ axis, Continuous line, arc |
|
I/O ports for extension |
4 inputs/4 outputs |
|
Power supply |
AC220V 50/60Hz 0.5kw |
|
Work condition |
Temperature 0-40°C;humidity 20-90% |
|
Weight |
About 35kg |
Main Configurations/ Structure Parts:
|
Item |
Unit |
QTY |
Remark |
|
Motor |
kit |
3 |
Micro stepping motor |
|
High Precision dispensing valve |
pc |
1 |
Optional |
|
Motion Controller |
kit |
1 |
Developed by ZhuoMao |
|
Automatic Dispensing Software |
kit |
1 |
ZhuoMao independent R&D |
|
Precise Dispensing controller |
kit |
1 |
Optional
|
ZM-300ED upgrade dispensing pressure value(optional):
Glue Dispenser Details Illustration:
Precise Dispensing Controller Operation Buttons
LCD Teach Pendant (Programming ) Glue Dispensing Needles (Dispensing valve Optional)
Liquid glue dispenser ZM-300ED Advantage:
1.LCD teach pendant.
2. Supporting array,graphic browsing,3D arc,common graphic library inserting and group editing
3. MiniSD file memorizer high speed and 2G capacity
4. Automatic gel prevention to prevent glue curing to jam nozzle.
5.Support Auto CAD,Coral Draw,etc to generate formats (such as NC, AI, DXF, JPG, BMP, scanner,etc.)
Available Dispensed Material:
UV glue, instant glue,silica gel, hot melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB black glue, white glue, conductive glue, thermal paste, solder paste, transparent paint, etc.
Application Area:
1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
