Quick Details
-
Voltage:
-
Custom Made
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
D1000xH1200
-
Weight (KG):
-
2080
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Chamber Material:
-
Stainless Steel 304
-
Structure:
-
Vertical or Horizontal
-
Control System:
-
Auto & Manual
-
Operation:
-
PLC Touch Screen
-
Technology:
-
Multi Arc + Sputtering
-
Process:
-
Green
-
color:
-
Gold, Rose Gold, Blue, Gray, Black, Rainbow
-
Working Way:
-
Pumping to Coat
-
Machine Size:
-
Custom Made
Quick Details
-
Machine Type:
-
PVD coating machine, Painting Equipment, Plc Controller Programmable Logic Controller, Coating Equipment, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foxin
-
Voltage:
-
Custom Made
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
D1000xH1200
-
Weight (KG):
-
2080
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Chamber Material:
-
Stainless Steel 304
-
Structure:
-
Vertical or Horizontal
-
Control System:
-
Auto & Manual
-
Operation:
-
PLC Touch Screen
-
Technology:
-
Multi Arc + Sputtering
-
Process:
-
Green
-
color:
-
Gold, Rose Gold, Blue, Gray, Black, Rainbow
-
Working Way:
-
Pumping to Coat
-
Machine Size:
-
Custom Made
Independent production reduces manufacturing costs and gives you the most practical
benefits to the greatest extent.
Products Description
|

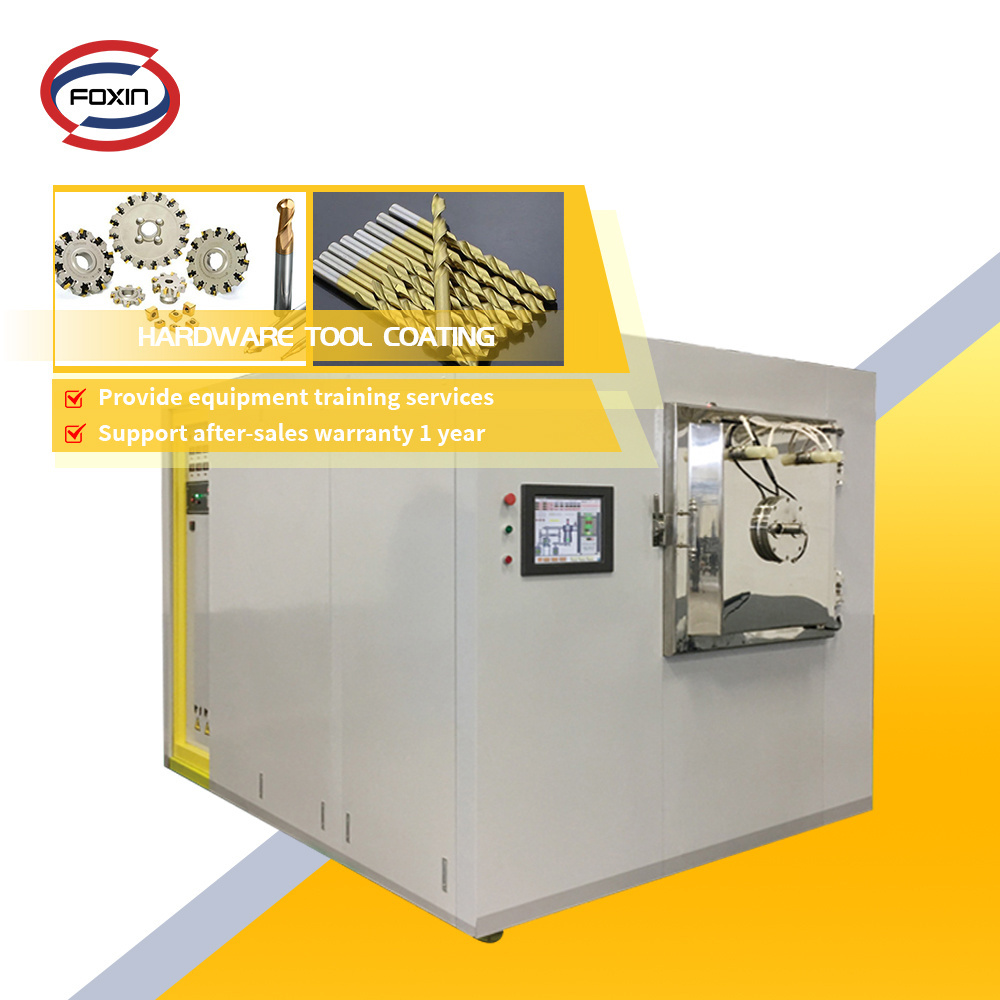

FOXIN-IP Series Multi-Arc Magnetron Coating Equipment Model(Height ≤ 1.3m)
|
|
|
|
|
|
|
||||||
|
Model
|
IP-0710
|
IP-1012
|
IP-1212
|
IP-1412
|
IP-1612
|
IP-1813
|
||||||
|
Vacuum chamber
|
Ф700×H1000mm
|
Ф1000×H1200mm
|
Ф1200×H1200mm
|
Ф1400×H1200mm
|
Ф1600×H1200mm
|
Ф1800×H1300mm
|
||||||
|
Application
|
watch industry, 3C industry, sanitary appliance industry, jewelry industry
|
|
|
|
|
|
||||||
|
|
watch accessories, cell phone accessories, glasses frame, clothes, decorative lighting,sanitary ware, hardware suitcase, glass, ceramic and plastic, etc.
|
|
|
|
|
|
||||||
|
Coating Film
|
Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black, etc.
|
|
|
|
|
|
||||||
|
Vacuum
|
Vertical door structure, equip with air pumping system and water cooling system
|
|
|
|
|
|
||||||
|
Vacuum system
|
Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump
or Molecule Pump(specific model according to customers' requirements)
|
|
|
|
|
|
||||||
|
Vacuum
|
1 set pirani, 1 set cold
cathode, 1 set diaphragm gauge
|
|
|
|
|
|
||||||
|
Supply Type
|
DC power, MF power, pulse power(bias power, arc power)
|
|
|
|
|
|
||||||
|
Ultimate
|
1.0- 6.0×10-4Pa, Non-loading cooling
|
|
|
|
|
|
||||||
|
Arc Source
|
4-6 set
|
6-8 set
|
8-10 set
|
10-12 set
|
14-16 set
|
16-18 set
|
||||||
|
|
200A-300A
|
200A-300A
|
200A-300A
|
200A-300A
|
200A-300A
|
200A-300A
|
||||||
|
Bias Power
|
20KW/1 set
|
20KW/1 set
|
20KW/1 set
|
30KW/1 set
|
40KW/1 set
|
60KW/1 set
|
||||||
|
Magnetron Power Supply
|
1-2 set
|
1-2 set
|
2-3 set
|
2-3 set
|
3-4 set
|
3-4 set
|
||||||
|
Rotation
|
Multi-axis planetary with frequency control(can be
controlled and adjusted)
|
|
|
|
|
|
||||||
|
Baking
Temperature
|
Normal temperature
～
300
℃
to 450
℃
～
600
℃
can be controlled and adjusted(PID temperature
control)
|
|
|
|
|
|
||||||
|
Gas
|
3 or 4 ways working gas flow control and display system matched with auto gas adding system
|
|
|
|
|
|
||||||
|
|
Ar, N
2
, O
2
,
C
2
H
2
,etc.
|
|
|
|
|
|
||||||
|
Cooling
Method
|
Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) ,or cryogenic system.(customers provide)
|
|
|
|
|
|
||||||
|
Controlling
|
Manual, half-auto, auto, touch screen operation, PLC or computer controlled
|
|
|
|
|
|
||||||
|
Air Pressure
|
0.5-0.8MPa
|
|
|
|
|
|
||||||
|
Water
|
≤25℃ ≥0.2MPa
|
|
|
|
|
|
||||||
|
Warning
|
Alarming system will work when hydropenia, over-voltage, circuit break such abnormal situation happens and carry out related protect
|
|
|
|
|
|
||||||
|
Total Power
|
25~65KW
|
45~85KW
|
65~105KW
|
85~115KW
|
95~125KW
|
100~130KW
|
||||||
|
Output
|
Voltage 380V，Frequency 50Hz(equip as customers' national electricity standard)
|
|
|
|
|
|
||||||
|
Occupation
|
15~50m²
|
15~50m²
|
25~55m²
|
25~55m²
|
35~55m²
|
35~55m²
|
||||||
|
Remark
|
Design and produce special machine according to customers' require, can add magnetron sputtering target,MF twins target,etc.
|
|
|
|
|
|
||||||
Our Advantages
Equipment production quality
assurance
-----------------------------------
Except for the vacuum pump, other components are produced in the factory to ensure the quality of the equipment. Imported pump power configuration can be customized.
A number of processing service factories
----------------------------------
In addition to the equipment factory, there are also 3 processing service factories that can improve the problem points of the process of using the equipment.
Excellent after-sales team
--------------------------------
Excellent after-sales team, can send technical engineers to local installation, has service more than 30 countries.
Industry-leading in the
field of expertise
---------------------------------
More than 30 years of experience in the coating industry, and has become an industry leader in the professional field of ion plating.
Application areas
Watch and jewelry industry
Precision tool mold industry
Kitchen and Sanitary Ware
Furniture hardware industry
Ceramic tile industry
Stainless steel plate industry
About us
Foshan Foxin Vacuum Technology Co., Ltd specializes in the R&D,production and sales of various vacuum applications. Committed to providing customized process technology and solutions according to customer needs. including unbalanced magnetron , medium frequency magnetron sputtering ,multi arc-ion sputtering ,multi arc-ion and magnetron ion sputtering,arc evaporation sources equipment and other coating equipment. Widely used in tool cutting tools, military, automotive, lighting, mobile phones,hardware watches, jewelry, ceramics, stainless steel plates, stainless steel products and other industries.
After-sales service
Certifications
Obtained a number of invention patent certificates, ISO9001:2015,
quality management system certification, etc.
Packaging & FAQ
Q1. How about the quality control about your products?
A1. We have the ISO9001 QMS , CE certification.
A1. We have the ISO9001 QMS , CE certification.
All machine will past the internal quality test and field testing.
Q2. Does your company provide after-sale service ?
A2. Yes. We have the field engineer to set-up and debug the machine .
Q2. Does your company provide after-sale service ?
A2. Yes. We have the field engineer to set-up and debug the machine .
After the machine is fully running . we have one year
of quality warranty and full-life maintenance service .
Q3. Can you provide technical support about my work-flow?
A3. Yes . The Foxin have more than 20 years of experience in Vacuum coating territory.
We also have an independent R&D department ,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
A4. No. All machine in Foxin are new .
We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
A5 . Yes . We can supply you all the accessories especially for some consumable material .
A3. Yes . The Foxin have more than 20 years of experience in Vacuum coating territory.
We also have an independent R&D department ,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
A4. No. All machine in Foxin are new .
We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
A5 . Yes . We can supply you all the accessories especially for some consumable material .
