Quick Details
-
Dimension(L*W*H):
-
7830*2680*4170 mm
-
Power:
-
85 KW
-
Product name:
-
Self-loading Concrete Mixer Truck
-
Engine Model:
-
YUCHAI 4105
-
Engine Type:
-
4-cylinder, 4-stroke, turbo-supercharged,water-cooling
-
Drive axle:
-
Special wheel side reductionbridge for 15T mixer
-
Tire:
-
12R22.5 vacuum steel wire tire
-
Overall Dimension (LxWxH):
-
6600x2850x3350
-
Maximum speed:
-
30km/h
-
Gradeability:
-
30°
-
Geometric volume of drum:
-
4.5m³
-
Drum speed:
-
16 rev / min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDJK
-
Weight:
-
7200 kg
-
Dimension(L*W*H):
-
7830*2680*4170 mm
-
Power:
-
85 KW
-
Product name:
-
Self-loading Concrete Mixer Truck
-
Engine Model:
-
YUCHAI 4105
-
Engine Type:
-
4-cylinder, 4-stroke, turbo-supercharged,water-cooling
-
Drive axle:
-
Special wheel side reductionbridge for 15T mixer
-
Tire:
-
12R22.5 vacuum steel wire tire
-
Overall Dimension (LxWxH):
-
6600x2850x3350
-
Maximum speed:
-
30km/h
-
Gradeability:
-
30°
-
Geometric volume of drum:
-
4.5m³
-
Drum speed:
-
16 rev / min
|
Model
|
JBC-35
|
Max. Water suction Volume
|
550 L/min. (self-priming hydraulic water pump)
|
|
Mixing Capacity
|
3.5 m³
|
Water tank Volume
|
2x310 L
|
|
Geometrical Capacity
|
5.3 m³
|
Max. Travel Speed
|
30 km/h
|
|
Concrete Output
|
3.5 m³ / batch, 14 m³ / h
|
Grade ability
|
40°
|
|
Drum Rotating Speed
|
16-20 rpm
|
Min. Turning Radius
|
5300 mm
|
|
Drum Rotating Angle
|
270°
|
Operating Weight
|
7200 kg
|
|
Model
|
YUCHAI 4105
|
Max. Load
|
8400 kg
|
|
Type
|
4-cylinder, 4-stroke, turbo-supercharged,water-cooling
|
Max. Gross Weight
|
15600 kg
|
|
Rated Power
|
85 KW (116HP) @ 2400 rpm
|
Overall Dimension (L×W×H)
|
7830*2680*4170 mm
|
|
Emission Standard
|
Euro II
|
Fuel Tank Volume
|
75 L
|
|
Loading Bucket Capacity
|
0.6 m³
|
Total Hydraulic System Capacity
|
75 L
|
|
Loading Times to Full Drum
|
6 Times
|
Oil Tank Volume
|
16 L
|
|
Discharge chute
|
2 Sets
|
|
|
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

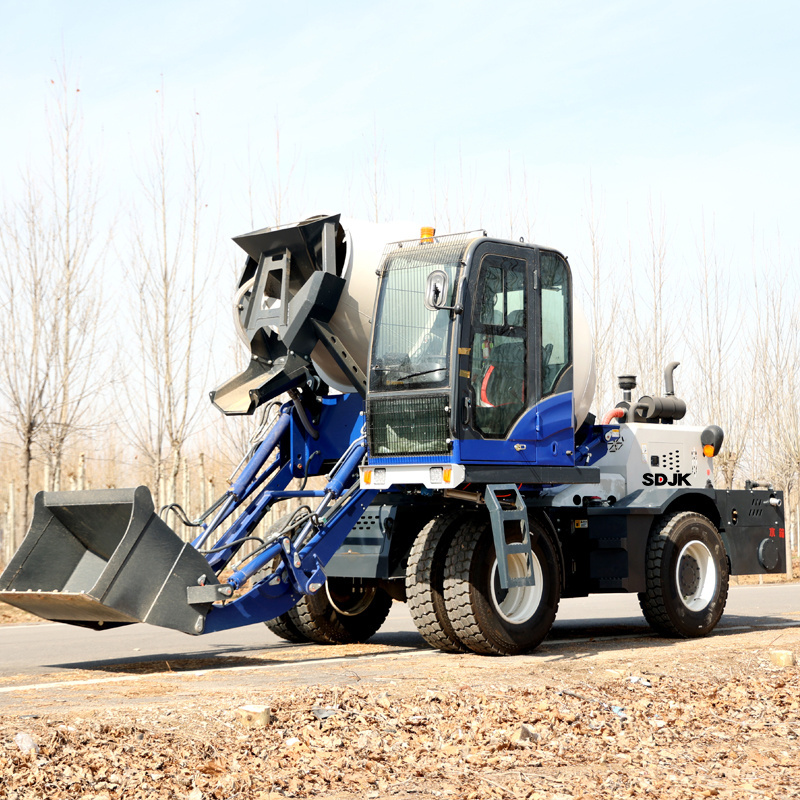

1.JBC-35 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture..
2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
