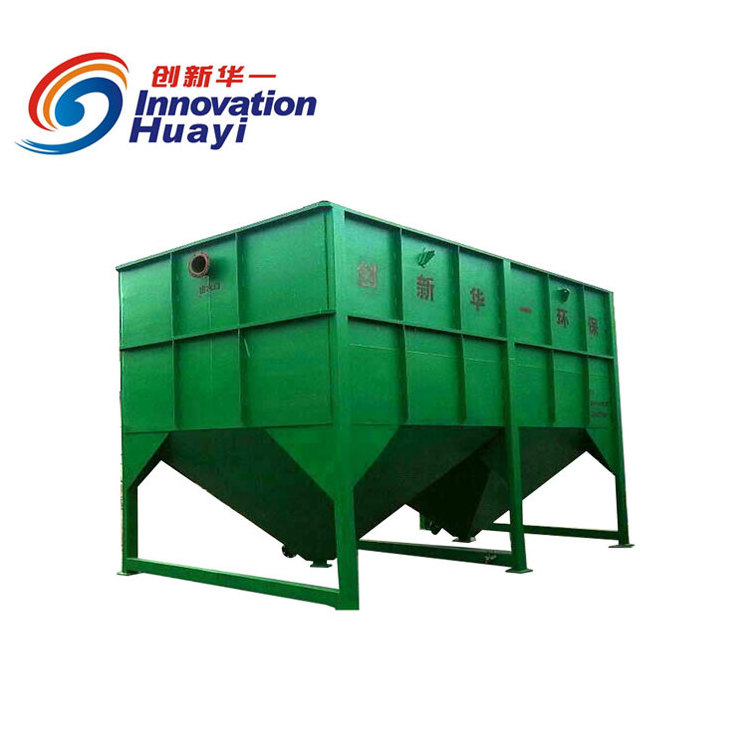

Industrial Water Wastewater Treatment Lamella Settling Clarifier

1-Product Introduction

A sedimentation tank is a high-efficient water treatment solution designed for removing particulates from liquids. Equipped with many inclined plates or tubes, the settling tank provides a large effective settling area for sliding down sludge, sands and other matters. Under gravity, particulates and sands are then collected in the hopper and released. By using the lamella clarifier, the separation efficiency is improved by 50%-60%.

2-Application

1. Electroplating
The sedimentation tank removes at least 90% of metal ions in the electroplating wastewater, including chromium, copper, iron, zinc, nickel and other heavy metal ions. The treated water complies with effluent standard and can be directly released, economical and ecofriendly.
2. Mining
With the application of the lamella clarifier, the turbidity of mining wastewater is lowered from 500-1500 mg/L to 5 mg/L.
3. Dyeing and Printing
For dyeing and printing water treatment, the lamella separator cuts 70%-90% of coloring matters and 50%-70% of COD.
4. Tanning and Food Processing
During the tanning process and food manufacture, a great amount of organic matters are produced. After using the wastewater treatment equipment, the COD removal rate is 50-80%, solid impurities removal rate is over 90% and a large proportion of organic substances are removed.
5. Chemical Engineering
The lamella clarifier helps to get rid of 60%-70% of COD, 60%-90% of coloring matters, enabling the water meeting the effluent standard.

3-Advantage

(1) In comparison to conventional settling tank, the lamella clarifier realizes incredible improvement in wastewater handling capacity.
(2) The sedimentation tank shortens particle sedimentation distance, thus cutting the sedimentation time.
(3) A large settling area is provided, leading to a high processing efficiency. This lamella separator has a surface loading rate of 36m3/m2.h.
(4) The sedimentation tank ensures a high removal rate, short retention time and small floor space.

Model Dimensions (m) Handling capacity (m3/h) Plate/ Tube thickness Weight (t)
