Quick Details
-
Size:
-
14m*3.8m*3.1m
-
Material:
-
stainless steel
-
Warranty:
-
1
-
Type:
-
Car Washer
-
Name:
-
fully-automatic tunnel car washer
-
Voltage:
-
220V/380V
-
Washing System:
-
Foam Washing
-
Washing Speed:
-
1-2min/car
-
Pressure:
-
0.8 Mpa
-
Function:
-
Bottom Spray
-
Water consumption:
-
120L/vehicle
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SM
-
Model Number:
-
SMC(B)
-
Size:
-
14m*3.8m*3.1m
-
Material:
-
stainless steel
-
Warranty:
-
1
-
Type:
-
Car Washer
-
Name:
-
fully-automatic tunnel car washer
-
Voltage:
-
220V/380V
-
Washing System:
-
Foam Washing
-
Washing Speed:
-
1-2min/car
-
Pressure:
-
0.8 Mpa
-
Function:
-
Bottom Spray
-
Water consumption:
-
120L/vehicle
Products Description

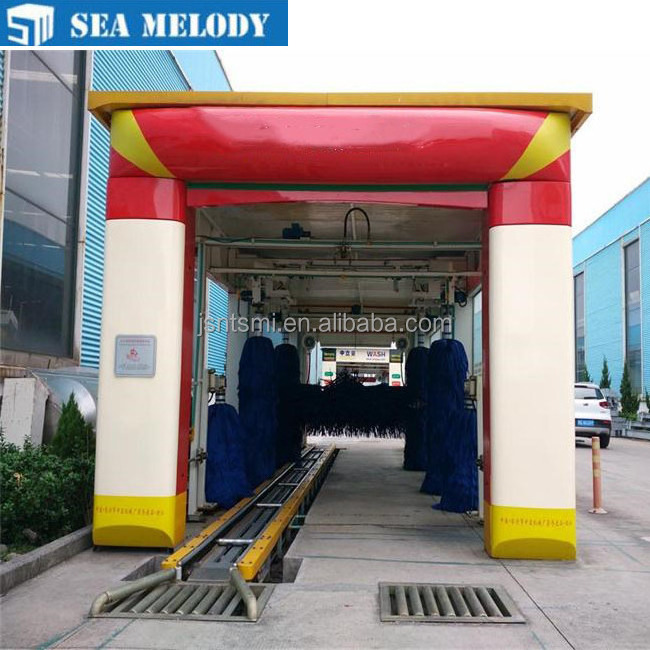

The machine controlled by intelligentized computer with the functions of automatic inspecting, moving spraying, washing, waxing, drying, cleaning wheel and chassis.
Model
|
SMC(B)-741
|
SMC(B)-941
|
SMC(B)-981
|
SMC(B)-1041
|
SMC(B)-1141
|
Big side brush
|
4
|
4
|
4
|
6
|
6
|
Small side brush
|
2
|
2
|
4
|
2
|
4
|
Horizontal brush
|
1
|
1
|
1
|
2
|
1
|
Dry system
|
1
|
1
|
2
|
1
|
1
|
Conveyor length
|
10.92m
|
11.92m
|
13.92m
|
13.94m
|
14.94m
|
Total power consumption
|
30kw
|
31kw
|
48kw
|
33kw
|
35kw
|
Water consumption(per car)
|
100-120L
|
100-120L
|
100-120L
|
100-120L
|
100-120L
|
Compressed air(Mpa)
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
Car types applied for
|
Car&coach
|
Car&coach
|
Car&coach
|
Car&coach
|
Car&coach
|
Max car standard
|
5500*1950*2000
|
5500*1950*2000
|
5500*1950*2000
|
5500*1950*2000
|
5500*1950*2000
|
Area demanded
|
≥19000*4000mm
|
≥20000*4000mm
|
≥22000*4000mm
|
≥22000*4000mm
|
≥23000*4000mm
|
Power requirements
|
380V, 50HZ
|
380V, 50HZ
|
380V, 50HZ
|
380V, 50HZ
|
380V, 50HZ
|
Features
1) Automatic water spaying and waxing system
2) Automatic speed variable moving system
3) Automatic washing system (wider brush)
4) Controlled by intelligentized computer
5) Pneumatic transmission system
6) Automatic dry system
7) Car position indication system
8) Operating system
2) Automatic speed variable moving system
3) Automatic washing system (wider brush)
4) Controlled by intelligentized computer
5) Pneumatic transmission system
6) Automatic dry system
7) Car position indication system
8) Operating system
