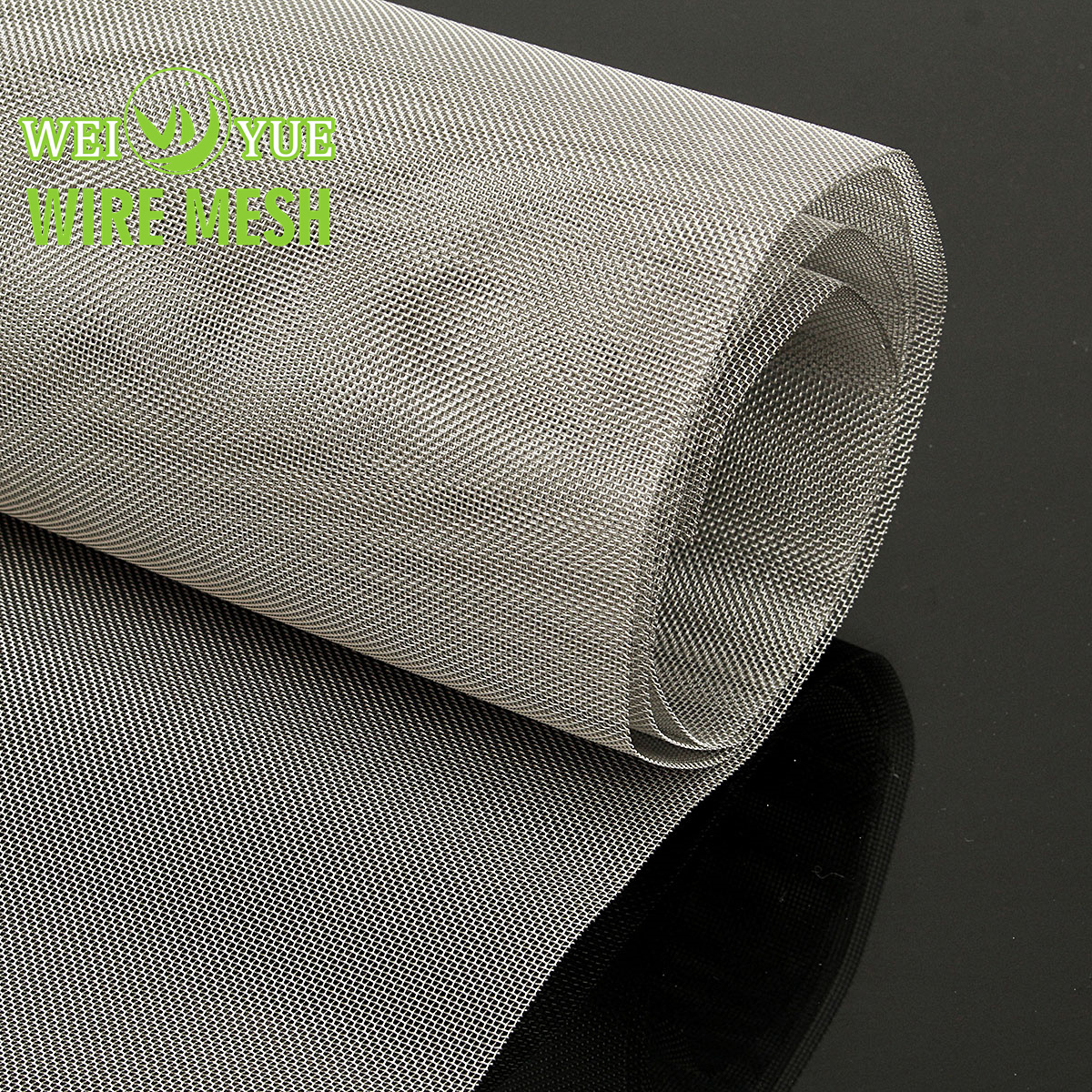

304/316 SS Steel Wire Meshes Filter Screen 20/40/60 80/100 Micron Filter Cloth Stainless Steel Woven Wire Mesh

In plain weave, the warp and weft threads cross at right angles, aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Twill weave

It is made by passing the weft thread over one or more warp threads then under two or more warp threads and so on, with a "step,"or offset, between rows to create the characteristic diagonal pattern. Because of this structure, twill generally drapes well.

Plain dutch weave

In a Plain Dutch Weave, the diameter of the warp wire is larger than the weft.The mesh is formed by weaving a limited number of warps with the maximum number of weft wires woven tightly together, producing a cloth with no readily visible apertures.

Twill Dutch Weave is produced with the weft wires packed together in the same principle as Plain Dutch Weave but with double the number of weft wires woven in an over two, under two pattern.The weft wires overlie each other creating a sinuous path of filtration. The cloth is very robust with a smooth surface and the finer weft wires and smaller pore sizes provide excellent flow characteristics.The finest filtration rates are obtained with this type of weave.
