Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CWD QIAO QXM
-
Model Number:
-
90R
-
Size:
-
1/8"-6"
-
Thread:
-
BS NPT DIN
-
Standards:
-
BS EN10242 VS 143&1256 ISO7/1
-
Tensile strength:
-
≥330N/MM
-
Working Pressure:
-
1.6Mpa
-
Test Pressure:
-
2.4Mpa
-
Hardness:
-
≤HB180
-
Media:
-
water oil air gas
-
Material:
-
malleable iron
-
Surface treatment:
-
Hot dipped Galvanized
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
beaded
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
CWD QIAO QXM
-
Model Number:
-
90R
-
Size:
-
1/8"-6"
-
Thread:
-
BS NPT DIN
-
Standards:
-
BS EN10242 VS 143&1256 ISO7/1
-
Tensile strength:
-
≥330N/MM
-
Working Pressure:
-
1.6Mpa
-
Test Pressure:
-
2.4Mpa
-
Hardness:
-
≤HB180
-
Media:
-
water oil air gas
-
Material:
-
malleable iron
-
Surface treatment:
-
Hot dipped Galvanized
1. Various sizes, adapt to different use environment, provide you with more choices.
2. Adequate-net weight, no cutting comers.
3. Except for standard weight, other optional weight series are available. Heavy and light.
4. Strict standards. By the ruler calibration. International testing standards.
5. Hardness <180. Fine workmanship 100%.
6. These fittings are widely connected to the pipes with water, oil, air, coal gas etc. as media.
2. Adequate-net weight, no cutting comers.
3. Except for standard weight, other optional weight series are available. Heavy and light.
4. Strict standards. By the ruler calibration. International testing standards.
5. Hardness <180. Fine workmanship 100%.
6. These fittings are widely connected to the pipes with water, oil, air, coal gas etc. as media.

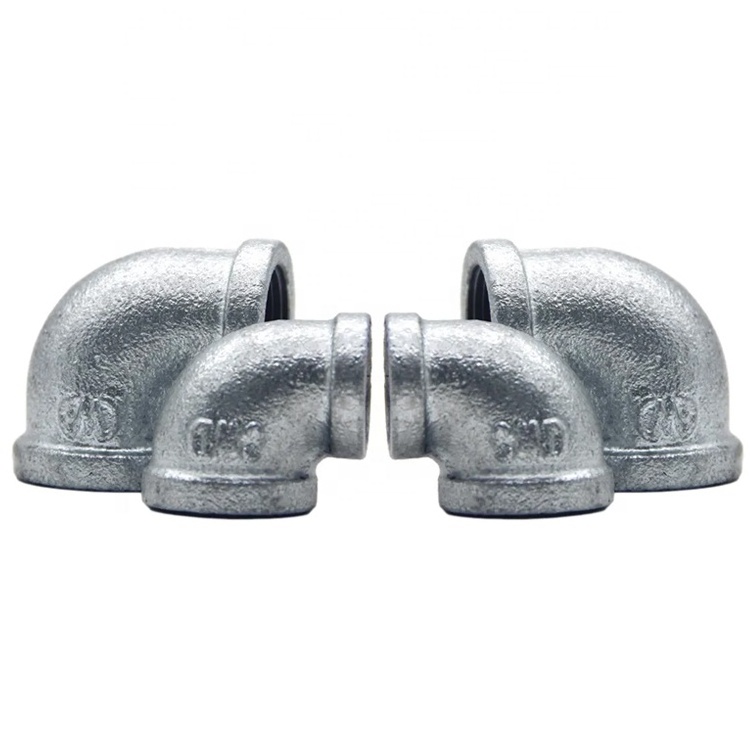

Product Description
|
Tensile strength
|
≥300 N/MM
|
|
Test pressure
|
2.4 Mpa
|
|
Size
|
1/8"- 6"
|
|
Surface
|
Black, Hot Dipped Galvanized
|
|
Working pressure
|
1.6 Mpa
|
|
Brand
|
QIAO, QXM, CWD
|
|
Thread
|
BS NPT DIN Threads
|
|
Tape
|
Banded, Beaded,Plain
|
|
Hardness
|
≤HB180
|
