Quick Details
-
EINECS No.:
-
2020/6/29
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tunsing
-
Model Number:
-
DS8610
-
Type:
-
hot melt adhesive tpu film
-
Color::
-
Milky white translucent
-
Release Protection::
-
Glassine Release Paper
-
Material::
-
TPU
-
Thickness::
-
0.0125mm-0.15mm
-
Conventional Width::
-
1380mm
-
Conventional Length::
-
100 yards/roll
-
Melting Range::
-
55-75℃
-
Liquidity Index:
-
37±10g/10mins (ASTM D1238-04)
-
Hardness::
-
97±3
-
Activation Temperature::
-
77-116℃
Quick Details
-
CAS No.:
-
DS8610
-
Other Names:
-
adhesive for shoes
-
MF:
-
2021/6/29
-
EINECS No.:
-
2020/6/29
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tunsing
-
Model Number:
-
DS8610
-
Type:
-
hot melt adhesive tpu film
-
Color::
-
Milky white translucent
-
Release Protection::
-
Glassine Release Paper
-
Material::
-
TPU
-
Thickness::
-
0.0125mm-0.15mm
-
Conventional Width::
-
1380mm
-
Conventional Length::
-
100 yards/roll
-
Melting Range::
-
55-75℃
-
Liquidity Index:
-
37±10g/10mins (ASTM D1238-04)
-
Hardness::
-
97±3
-
Activation Temperature::
-
77-116℃

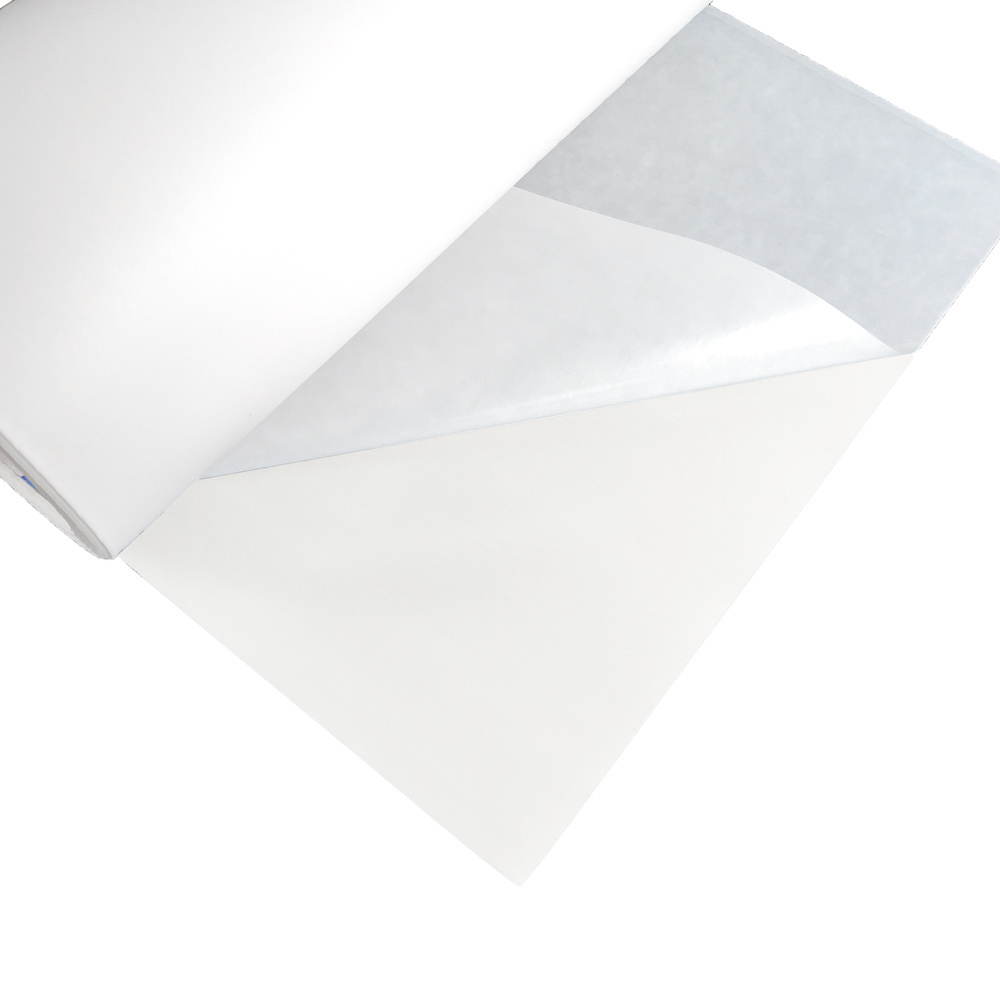

Glue Tpu Hot Melt Adhesive Film For Textile Fabric
Product Description
Product:
DS8610
Description:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has low use temperature, easy processing and excellent cold resistance.
Description:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has low use temperature, easy processing and excellent cold resistance.
Application:
DS8610 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
DS8610 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Physical Characteristics:
|
Colour
|
Milky white translucent
|
Release Protection
|
Glassine Release Paper
|
|
Proportion
|
1.20±0.02g/cm³
|
Thickness
|
0.0125mm-0.15mm
|
|
Opening time
|
5min
|
Width
|
5mm-1480mm
|
|
Liquidity Index
|
37±10g/10mins （ASTM D1238-04）
|
Conventional Thickness
|
0.05mm,0.08mm,0.10mm
0.12mm, 0.15mm |
|
Hardness
|
97±3 （Shore A）
|
Conventional Width
|
1380mm
|
|
Melting Range
|
55-75℃ (Tunsing DSC 214)
|
Conventional Length
|
100 yards
|
|
Activation Temperature
|
77-116℃ （Tunsing）
|
Finished Product
|
1380mm*100yards/roll
|
Recommended Bonding Conditions:
|
First Lamination
|
|
Second Implanting
|
|
||
|
Mechanical Mold Temperature
|
90℃-110℃
|
Mechanical Mold Temperature
|
90℃-130℃
|
||
|
Hot Pressing Time
|
5-15 seconds
|
Hot Pressing Time
|
8-25 seconds
|
||
|
Pressure
|
0.3-0.6mpa
|
Pressure
|
0.3-0.6mpa
|
||
1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
2. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.
Note: The seller hereby declares that Tunsing will refuse to accept the assurance of the components of the manufacturing process.Tunsing firmly believes that the information content is reliable. However, the claims for possible problems will not be guaranteed for the components of a particular process. Before use, the manufacturer must determine the suitability of the product for the items to be used. The user must bear the risks and possible problems in the various manufacturing stages of testing and use. The Seller and
the manufacturer shall not be liable for any direct injury, loss, damage or misuse.
