Quick Details
-
Power:
-
24v/3kw
-
Min. Lifting Height:
-
100mm
-
Table Size:
-
2270x1120
-
Overall Dimensions:
-
2270x1120*2480mm
-
Weight:
-
2430 kg
-
Application:
-
Aerial Work
-
Voltage:
-
Local Voltage
-
Material:
-
High-duty Steel Structure
-
Usage:
-
Higher Level
-
Platform:
-
Anti-skid
-
Lifting speed:
-
3-6m/min
-
Feature:
-
Hydraulic Stair Lift
-
Use:
-
Work High
-
Control methods:
-
Control Panels
-
Keywords:
-
automatic mobile electrical elevator
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Quentin
-
Power:
-
24v/3kw
-
Min. Lifting Height:
-
100mm
-
Table Size:
-
2270x1120
-
Overall Dimensions:
-
2270x1120*2480mm
-
Weight:
-
2430 kg
-
Application:
-
Aerial Work
-
Voltage:
-
Local Voltage
-
Material:
-
High-duty Steel Structure
-
Usage:
-
Higher Level
-
Platform:
-
Anti-skid
-
Lifting speed:
-
3-6m/min
-
Feature:
-
Hydraulic Stair Lift
-
Use:
-
Work High
-
Control methods:
-
Control Panels
-
Keywords:
-
automatic mobile electrical elevator

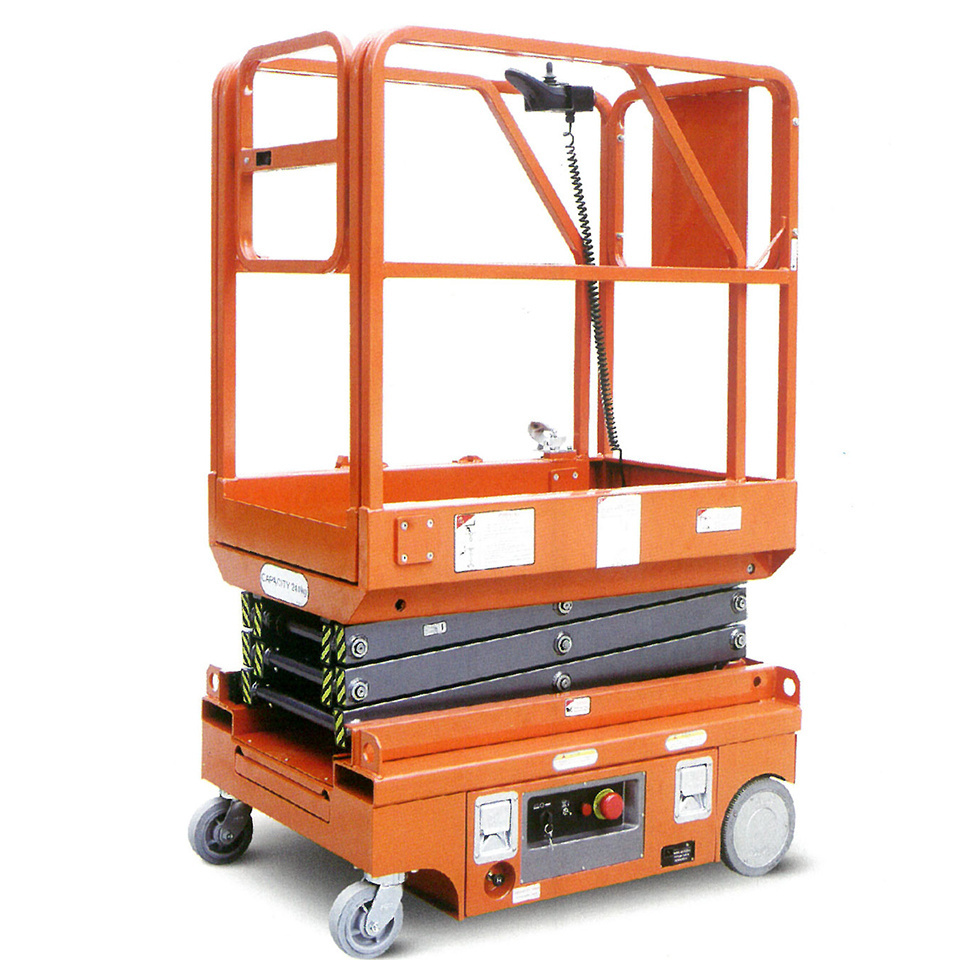

10m Hydraulic automatic mobile electrical elevator price
Production description
A. I t can be controlled without leaving the elevator.
B. I t has moving and turning drive function.
C. Move flexibility, to make the aerial work more convenient.
D. I t has imported hydraulic system, explosion-proof tube and emergency device
E. Durable ground, it is not easy to stick debris.
Features
A. Metal structure with strength anti-rust and anti-corrosion ability.
B. Short turning radius: Tire ’ s outer radius is 1.98m, the inner radius is 0m.
C. American Trojan battery with 225Ah, it can be used more than 8 hours.
D. American Delta Tech control system, fault self-diagnosis technology anti-collision sensing device.
E. Reliability, the waterproof rating of main electrical components with IP65 grade.
F. Safety, the level switch can ensure the safety of machine and personnel.
G. Double revolving door structure is convenient to maintenance.
H. No pollution and low noise, it can achieve the standards of environmental protection.
Product Configuration
|
Proportional control |
Au Automatic breaking system
|
Buzzer |
Extended platform |
|
Automatic pothole protection system |
Emergency descent system |
Speaker
|
Charging Protection System |
|
Platform with lock |
Emergency stop button |
Work Schedule |
Strobe lamp |
|
The full walk |
Pipe explosion protection system |
Safe maintenance bracing piece |
|
|
Seamless tire |
Fault Diagnosis System |
Standard transport truck hole |
|
|
4 × 2 drive |
Tilt protection system |
Folding fence |
|
|
Parameter |
Unit |
HY-JCPT0808HD |
HY-JCPT1008HD |
HY-JCPT1012HD |
HY-JCPT1212HD |
HY-JCPT1412HD |
|
Safety working capacity |
Kg | 380 | 230 | 450 | 320 | 230 |
|
Extending platform safety working capacity |
kg | 113 | 113 | 113 | 113 | 113 |
|
Max. Working height |
m | 7.8 | 9.8 | 9.8 | 11.8 | 13.8 |
| Max. Platform height | m | 6.0 | 8.0 | 8.0 | 10.0 | 12 |
|
Overall length |
mm | 2480 | 2480 | 2480 | 2480 | 2480 |
|
Overall width |
mm | 810 | 810 | 1150 | 1150 | 1150 |
|
Overall height (Unfolding fence) |
mm | 2210 | 2340 | 2340 | 2470 | 2590 |
|
Overall height (Folding fence) |
mm | 1750 | 1880 | 1860 | 1990 | 2170 |
| Working platform size | mm | 2270*810 | 2270*810 | 2270*1120 | 2270*1120 | 2270*1120 |
|
Platform extend size |
mm | 900 | 900 | 900 | 900 | 900 |
|
Min height (Closing) |
mm | 100 | 100 | 100 | 100 | 100 |
|
Min height (Open) |
mm | 19 | 19 | 19 | 19 | 19 |
|
Wheelbase |
mm | 1870 | 1870 | 1870 | 1870 | 1870 |
|
Min turning radiu ( inner wheel) |
mm | 0 | 0 | 0 | 0 | 0 |
|
Min turning radiu ( outner wheel ) |
mm | 2100 | 2100 | 2200 | 2200 | 2200 |
|
Lifting power |
V/kw | 24/3 | 24/3 | 24/3 | 24/3 | 24/3 |
|
Device working speed ( Closing) |
km/h | 3.5 | 3.5 | 3.5 | 3.5 | 4 |
|
Device working speed ( Open ) |
km/h | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
|
Lifting speed |
Sec | 24/54 | 28/40 | 28/38 | 45/36 | 84/38 |
|
Battery |
V/Ah |
4x6/210 |
4x6/210 |
4x6/210 |
4x6/210 |
4x6/210 |
|
Charger |
V/A |
24/25 |
24/25 |
24/25 |
24/25 |
24/25 |
|
Maximum gradeability |
% |
25 |
25 |
25 |
25 |
25 |
|
Maximum allowable angle |
° | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
|
Tire |
mm |
φ 381x127 |
φ 381x127 |
φ 381x127 |
φ 381x127 |
φ 381x127 |
|
Overall weight |
Kg |
1840 |
2020 |
2180 |
2430 |
2760 |
| Packaging | International standard packaging: Wooden case packaging |
| Delivery days | 15-20 days from payment |
1. Service concept: Attention to contract, guarantee quality, on-time delivery and keeping promises.
2. Presale service: Free techinical advice, to meet the needs of customers.
3. Sale service: Free on-site installation service and operating guidance for user.
4. After-sale service: Free 1 year warranty, 48 hours door-to door maintenance with cost price.
5. Quick responses: 24-hours hotline, to solve your problem in the shortest time.
