Quick Details
-
Warranty:
-
2 years, 1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aicrane
-
Model Number:
-
Aicrane
-
Product name:
-
used marine boat 5 ton ~ 200 ton anchor handling towing winch
-
Color:
-
Customer Requirement
-
Certification:
-
BV ABS DNV etc
-
Material:
-
Q235B/Q345B
-
Structure:
-
single or double drum
-
driving type:
-
electric or hydraulic
-
Usage:
-
boat or offshore
-
Package:
-
Plywood Cases
-
Configuration:
-
domestic or international famous brand
Quick Details
-
Power Source:
-
Electric,Hydraulic,Hand
-
Application:
-
BOAT
-
Capacity:
-
10~3000KN
-
Warranty:
-
2 years, 1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aicrane
-
Model Number:
-
Aicrane
-
Product name:
-
used marine boat 5 ton ~ 200 ton anchor handling towing winch
-
Color:
-
Customer Requirement
-
Certification:
-
BV ABS DNV etc
-
Material:
-
Q235B/Q345B
-
Structure:
-
single or double drum
-
driving type:
-
electric or hydraulic
-
Usage:
-
boat or offshore
-
Package:
-
Plywood Cases
-
Configuration:
-
domestic or international famous brand
Widely used marine boat 5 ton ~ 200 ton anchor handling towing winch with CCS BV DNV
|
We need you confirm below information when you send inquiry to us : [Noted:tell me your email and whatsapp or skype] 1.Your need quantity?(Set) 2.FOB price or CIF price?(If need CIF price,kindly tell us your nearest sea port) 3.Driven type?(Electric or Hydraulic or Diesel) 4.Working loading capacity?(Ton) or Pull force?(KN) 5.Working speed?(m/min) 6.Rope diameter?(mm) 7.Rope capacity?(m) 8.Power supply?(Voltage---50Hz/60Hz---3Phase) 9.Any other special requirements? |
Different types towing winch can be customized design as below :
- Towing winch driven type: Electric ,hydraulic,Diesel
- Drum No.: Single drum ,double drum
- Loading capacity: 5 ~ 300T
- Working speed: 2 ~ 15 m/min
- Rope capacity: 50 ~ 2000 m
- Rope diameter: ø21.5 ~ ø120 mm
Our hydraulic towing winch can be customized design according to clients' demands as below:
- Driven type:Hydraulic
- Loading capacity:10 ~ 200T
- Working speed:5 ~ 10 m/min
- Rope diameter:ø26mm ~ ø68mm
- Rope capacity:200 ~ 1500 m
Our electric towing winch can be customized design according to clients' demands as below:
- Driven type:Electric
- Loading capacity:10 ~ 300T
- Working speed:2 ~ 15 m/min
- Rope diameter:ø25 ~ ø120 mm
- Rope capacity:50 ~ 2000 m
- Power supply:220v/380v/400v440v,50/60Hz,3phase
Our diesel towing winch can be customized design according to clients' demands as below:
- Driven type:Diesel
- Loading capacity:5 ~ 60T
- Working speed:5 ~ 15 m/min
- Rope diameter:ø21.5 ~ ø64mm
- Rope capacity:100 ~ 500 m
|

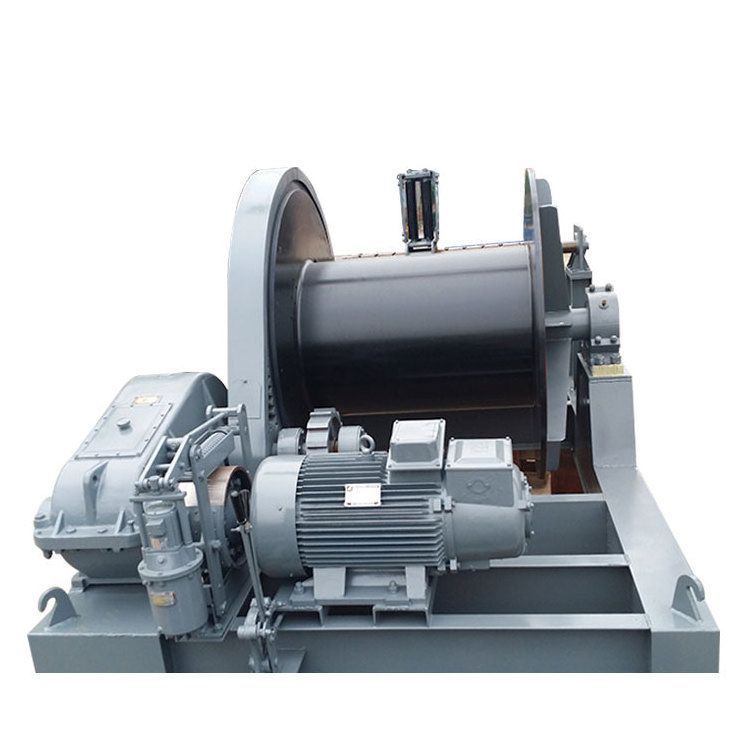

Towing winch / tugger winch is the main equipment for tugboat and tow barges, which is one of the large capacity winches from 1 ton to 300 ton.The winch usually with electric type,hydraulic type,diesel winch, with single drum or double drum. The rope capacity is from 100m to 1500m. The towing winch is widely used in harbors, shipyard, port, etc. Our factory can be customized design electric towing winch,hydraulic towing winch,diesel towing winch according to different clients' specific requirements and all towing winch have passed CCS,BV,CE,ABS,DNV ,CUTR,etc. international certificates. |
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor power |
| KN | m/min | m | mm | KW | |
| EL-16 | 160 | 7.5 | 500 | 28 | 45 |
| EL-20 | 200 | 7.5 | 500 | 30 | 55 |
| EL-25 | 250 | 7.5 | 550 | 32 | 75 |
| EL-32 | 320 | 7.5 | 600 | 36 | 90 |
| EL-40 | 400 | 5 | 750 | 40 | 90 |
| EL-50 | 500 | 5 | 750 | 52 | 110 |
| EL-63 | 630 | 5 | 850 | 54 | 110 |
| EL-80 | 800 | 5 | 1000 | 58 | 132 |
| EL-100 | 1000 | 5 | 1000 | 64 | 180 |
| EL-125 | 1250 | 5 | 1200 | 70 | 220 |
| EL-130 | 1300 | 5 | 1200 | 72 | 220 |
| EL-160 | 1600 | 4 | 1500 | 82 | 220 |
| EL-200 | 2000 | 4 | 1500 | 90 | 250 |
| EL-250 | 2500 | 4 | 1500 | 102 | 300 |
| EL-300 | 3000 | 4 | 1500 | 110 | 360 |
