YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers globally.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIXIST
-
Model Number:
-
YPM-8205-06-U
-
Wavelength Range:
-
800-1650nm, 800-1650nm
-
Model:
-
YPM-8205-06-U
-
Dimension:
-
62 * 62 * 85mm
-
Data Collection Code:
-
USB directly connect to computer
-
Measuring power range:
-
100nW-2W
-
Integrating Sphere Diameter:
-
2 in
-
Integrating sphere material:
-
PTFE
-
Calibration uncertainty:
-
≤±5%
-
Linearity:
-
≤±0.5%
Quick Details
-
Warranty:
-
1 year
-
Size:
-
62 * 62 * 85mm
-
Weight:
-
0.5Kg, 0.5Kg
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIXIST
-
Model Number:
-
YPM-8205-06-U
-
Wavelength Range:
-
800-1650nm, 800-1650nm
-
Model:
-
YPM-8205-06-U
-
Dimension:
-
62 * 62 * 85mm
-
Data Collection Code:
-
USB directly connect to computer
-
Measuring power range:
-
100nW-2W
-
Integrating Sphere Diameter:
-
2 in
-
Integrating sphere material:
-
PTFE
-
Calibration uncertainty:
-
≤±5%
-
Linearity:
-
≤±0.5%
PRODUCT OVERVIEW

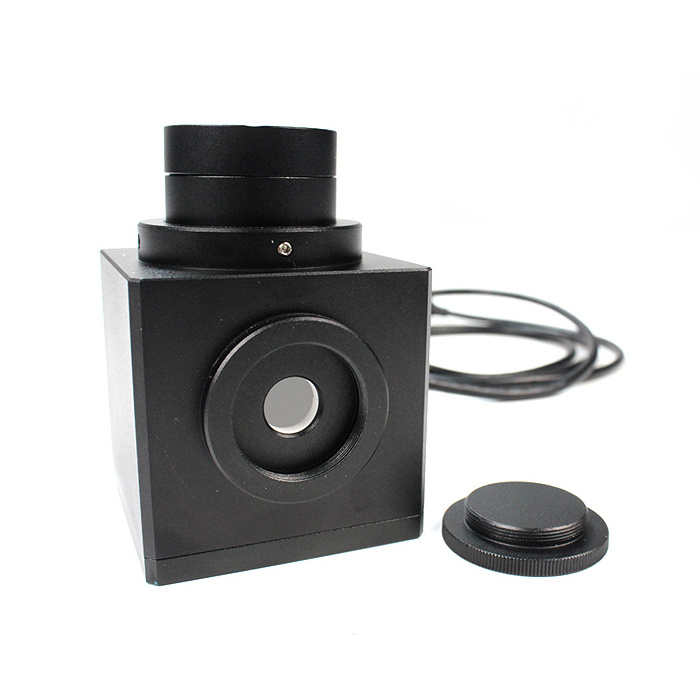

YPM-8205-06 integrating sphere power detector is an indium gallium arsenic integrating sphere detector covering 800nm to 1650nm band with power measurement range of 1uW - 2W. Two data acquisition methods are available: DB15 with meter display and USB direct connection to PC.
The YPM-8205-06-U detector uses USB communication and can be directly connected to a PC for data acquisition without a meter. The PC needs to install the optical power measurement software, which can realize the functions of real-time data acquisition, data analysis and power monitoring. In addition, the USB type photoelectric detector can easily form a multi-channel power acquisition system, which can collect and display data from multiple detectors simultaneously via USB Hub.
Digital communication
The detector completes the data acquisition and processing, and uses digital communication with the optical power meter head to reduce external interference.
Measurement of free-space light or optical fiber
The integrating sphere detector allows users to measure free-space light, as well as our fiber optic splice adapters (FC or SMA) or bare fiber clips to measure the laser transmitted over the fiber.
Calibration data
The calibration data is stored electronically in the corresponding detector. The corresponding calibration report is provided to the customer together with the detector at the time of shipment. The report lists the wavelength response of the detector in relation to the spectrum at 10 nm intervals over the corresponding wavelength range. If you have an additional optional attenuator, the electronic storage and calibration report will also contain another set of corresponding calibration data. We offer a paid calibration service and recommend that the detector be calibrated once a year to ensure accurate measurements.
Customized service
We can provide customized services according to user requirements.
PRODUCT SPECIFICATIONS
|
Model
|
YPM-8205-06-U
|
|
Data acquisition method
|
USB direct connection to computer
|
|
Detector material
|
InGaAs Indium Gallium Arsenic
|
|
Wavelength range
|
800-1650nm
|
|
Measurement power range
|
100nW-2W
|
|
Maximum average power density
|
5W/cm^2
|
|
Integrating Sphere Diameter
|
2 inches
|
|
Integrating sphere material
|
PTFE
|
|
Integrating sphere inlet hole
|
12mm
|
|
Integrating sphere pre-measurement hole
|
SMA905 interface
|
|
Integrating sphere fixing hole
|
M4 / M6
|
|
Calibration uncertainty
|
≤±5%
|
|
Linearity
|
≤±0.5%
|
|
Uniformity
|
≤±2%
|
|
NEP(W/√HZ)
|
1.2E-13 W/√HZ
|
|
Response time
|
0.2us
|
|
Interface type
|
USB
|
|
Cable length
|
1.5m
|
|
Dimension
|
62 x 62 x 85mm
|
|
Weight
|
0.5Kg
|
|
Operating temperature,relative humidity
|
5℃ - 50℃ ，<70% RH
|
DIMENSION
