Quick Details
-
Product name:
-

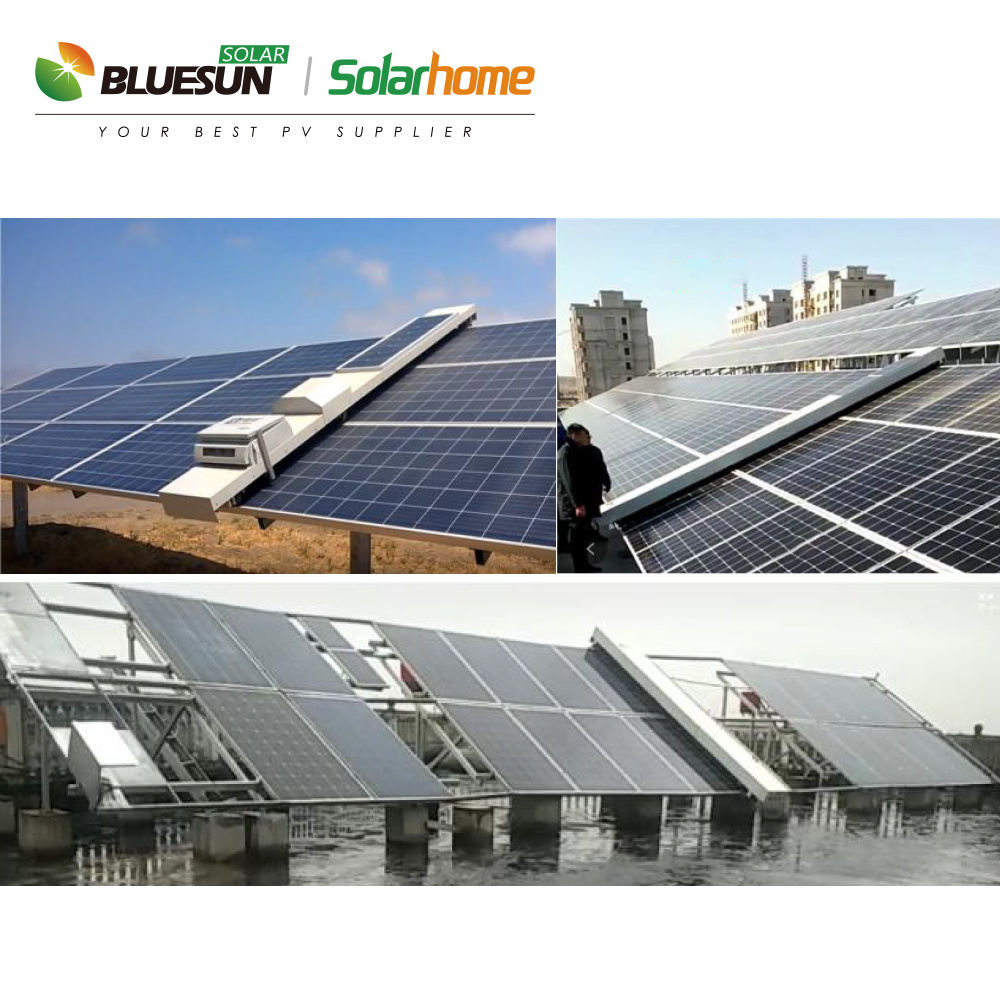

Solar Panel Cleaning Robot
-
Application:
-
Industrial, commercial, residential
-
Communication:
-
Wirelss
-
WEIGHT:
-
30-60kg
-
Battery:
-
Lithium Battery 24V/15AH
-
Traveling speed:
-
12m/min
-
Obstacle crossing:
-
30 degrees
-
Function:
-
PV Module Clean
-
Number of charges:
-
2000 times
-
Cleaning Mode:
-
Dry clean
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Bluesun Solar
-
Model Number:
-
BSM-910
-
Product name:
-
Solar Panel Cleaning Robot
-
Application:
-
Industrial, commercial, residential
-
Communication:
-
Wirelss
-
WEIGHT:
-
30-60kg
-
Battery:
-
Lithium Battery 24V/15AH
-
Traveling speed:
-
12m/min
-
Obstacle crossing:
-
30 degrees
-
Function:
-
PV Module Clean
-
Number of charges:
-
2000 times
-
Cleaning Mode:
-
Dry clean
Product Description
Why we need clean solar panels?
The dust accumulation of the module will reduce reduce the power generation of modules, easily damage pv modules, increase safety risks, and reduce its life.
Advantages Of Cleaning Robot
Traditional cleaning VS PV robot cleaning
Compared with traditional labor
: the cleaning efficiency is increased by 2.5 times, and the cleaning effect is 2 times;
Compared with mobile cleaning : the cleaning efficiency is increased by 1.5 times, and the cleaning effect is equivalent.
Compared with mobile cleaning : the cleaning efficiency is increased by 1.5 times, and the cleaning effect is equivalent.
Return on investment calculation
Example: 1MW distributed project, according to the 10-year usage, the benefit is as following:
On-grid electricity price: 0.72 yuan/kWh
First-year power generation: 1.05 million kWh
Power generation gain: 1.05 million kWh*15%=15.75 million kWh
Power generation income: 157,500 kWh*0.72 yuan / kWh = 113,400 yuan / year
Product Parameter
|
Technical Parameter
|
|
|
|
Applicable power station
|
Rooftop power station. Fishing-light complementary power station. Agricultural-light complementary power station, Ground power station
|
|
|
Driving media
|
Edge rail or PV panel aluminum profile edge
|
|
|
Machine weight
|
30-60Kg
|
|
|
Machine length
|
Customized base on solar array width
|
|
|
Working temperature
|
-20-60℃
|
|
|
Type of brush
|
Anti-static nylon brush with outer diameter 120mm
|
|
|
Safety of PV panels
|
The brush does not scratch the surface of the component, and the robot does not crush the component
|
|
|
Reducing mechanism
|
Gearbox deceleration
|
|
|
Cleaning Length
|
Maximum 400m (800m back and forth)
|
|
|
Cleaning Width
|
2-6m
|
|
|
Climbing Angle
|
<30°C
|
|
|
Speed of movement
|
12m/min
|
|
|
Component dislocation up and down
|
<20mm
|
|
|
Storage battery
|
24V/15Ah
|
|
|
Number of Charges
|
2000 time
|
|
|
Type of motor
|
24VDC DC brush motor
|
|
|
Central Control Board
|
MCU Control
|
|
|
Electrical Performance Standards
|
Compatibility with electronic, safety and environmental standards
|
|
|
Work pattern
|
Automatic/manual/wireless remote control, with self-test, fault feedback, parameter setting function
|
|
|
Wireless communications
|
ZIGBEE communication, support upper management software
|
|
|
Waterless cleaning
|
anhydrous design with brush
dry brush
|
|
|
Independent operation
|
Robot self-starting at preset time
|
|
