- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GXCOM
-
Model Number:
-
TS8208P-2G(150W)
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
PoE Standard: IEEE02.3af/at Device Type:
-
Device Type:
-
Switch - 8 Ports - Unmanaged
-
Uplink port:
-
1*1GE Uplink RJ45
-
PoE Standard:
-
IEEE02.3af/at
-
Whole Power:
-
150W
-
Power Pin:
-
Both 1/2+,3/6- and 4/5+7/8-
-
Input:
-
Input:AC100-240V 50/60Hz
-
Certification:
-
CE FCC RoHS
-
Manufacturer:
-
GXCOM Technology
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
20Gbps
-
Brand Name:
-
GXCOM
-
Model Number:
-
TS8208P-2G(150W)
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
PoE Standard: IEEE02.3af/at Device Type:
-
Device Type:
-
Switch - 8 Ports - Unmanaged
-
Uplink port:
-
1*1GE Uplink RJ45
-
PoE Standard:
-
IEEE02.3af/at
-
Whole Power:
-
150W
-
Power Pin:
-
Both 1/2+,3/6- and 4/5+7/8-
-
Input:
-
Input:AC100-240V 50/60Hz
-
Certification:
-
CE FCC RoHS
-
Manufacturer:
-
GXCOM Technology
-
Warranty:
-
1 Year
Product Description

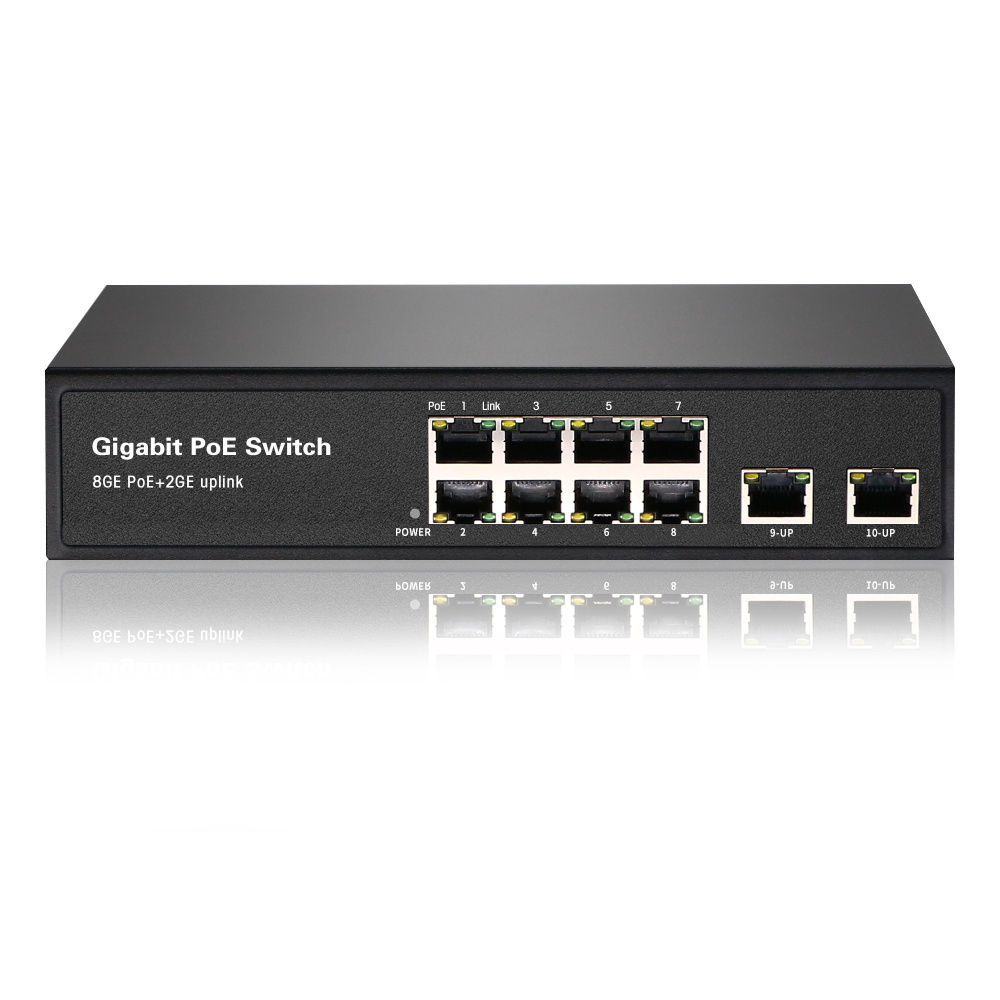

OEM ODM built-in 150W power 10/100/1000Mbps full gigabit 8 ports
PoE Switch with 2GE uplink port
for IP Camera
Introduction
The 8 ports Standard POE switch provides power and data to wireless access point and IP camera, using Power over Ethernet(PoE) over a single Cat-5 cable. The 8 Ethernet ports can be used for any 10/100 Mbps link and also can supply industry-standard IEEE 802.3af/At power. Advanced Auto detection gives power only to 802.3af/at powered devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the standard automatically determines PoE requirements, speed, duplex, and cable type using Auto detection.
The 8 ports Standard POE switch provides power and data to wireless access point and IP camera, using Power over Ethernet(PoE) over a single Cat-5 cable. The 8 Ethernet ports can be used for any 10/100 Mbps link and also can supply industry-standard IEEE 802.3af/At power. Advanced Auto detection gives power only to 802.3af/at powered devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the standard automatically determines PoE requirements, speed, duplex, and cable type using Auto detection.
Main Features
8*10/100/1000mbps POE port ; 2*10/100/1000mbps uplink port
100m Distance
Vlan support
Support IEEE802.3AF/AT
Whole Power:150W
All port supported by MDI/MDIX auto flip and self negotiation
Supply 8*10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
Each port max. power supply reached 30W.
Application
Wireless Access Point
IP Camera
IP Phone
Computer Networks
Specification
|
Product
|
8 Port PoE+2G full giga POE Switch (Built-in)
|
|
Model
|
TS8208P-2G
|
|
1000M POE Port
|
1 to 8 support IEEE802.3AF/AT Standard
|
|
UP link port
|
9th_ 10th port support 1000Mbps
|
|
Output Power
|
15.4W/30W IEEE802.3af/at
|
|
Power Pin
|
Both 1/2+、3/6- and 4/5+7/8-
|
|
Whole Power
|
150W
|
|
POE Protocol
|
IEEE 802.3af/IEEE 802.3at
|
|
POE Type
|
End-span
|
|
Power Distance
|
≤150m
|
|
Network Standard
|
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
|
Network Medium
|
100/1000BASE-TX: 5 class and above non shielded twisted pair
|
|
Data Distance
|
≤150m
|
|
Switch Capability
|
20Gbps
|
|
Forwarding Mode
|
Store and forward
|
|
Forwarding Rate
|
100Mbps:14880pps
1000Mbps:14800pps |
|
MAC Address
|
MAC address table 8K
|
|
Port Function
|
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
LED Indicator
|
Each port occupied 1 LINK/ACT.1000Mbps,
POE Status Indicator, Whole power indicator |
|
Working Environment
|
Working temperature：0°-- 55°C
|
|
Input
|
AC 100-240V 50/60HZ
|
|
Weight
|
1.8kg
|
|
Size
|
210mm*140mm*45mm(L*W*H)
|
Details Images
Product Usage
Packing&Shipping
bubble box, carton
Company Introduction
FAQ
Q1.Can we get a sample?
Yes,normally we have to charge for samples,but it’s refundable regarding the confirm batch order.Meanwhile,we're providing flexible customization service.
Yes,normally we have to charge for samples,but it’s refundable regarding the confirm batch order.Meanwhile,we're providing flexible customization service.
You can send your private logo and company name.
Q2.Can you offer a better price?Any discount?
Yes,surely. We’re source factory and providing reasonable price. T
Q2.Can you offer a better price?Any discount?
Yes,surely. We’re source factory and providing reasonable price. T
he price is up to the product,quantity and requirement.
Q3.Do you have MOQ?
For stock products,we don't have MOQ.
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM is specialized in good OEM/ODM service to our customers.
11+ years
Q5.How about the payment terms?
T/T,L/C,Paypal,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
There are express like as DHL,UPS,FedEx,Airfreight and Seafreight.
Q7.Lead time?
Normally,we keep available stock for hot items. Ready to ship.
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
Q3.Do you have MOQ?
For stock products,we don't have MOQ.
For custom product,we ask for low MOQ.
Q4.OEM,ODM Severice is available?
Yes,GXCOM is specialized in good OEM/ODM service to our customers.
11+ years
Q5.How about the payment terms?
T/T,L/C,Paypal,western union(Deposit and Balance,full paid before shipment.)
Q6.Can you take care for the shipment?
Yes,surely GXCOM will give you different shipping proposal for selecting.
There are express like as DHL,UPS,FedEx,Airfreight and Seafreight.
Q7.Lead time?
Normally,we keep available stock for hot items. Ready to ship.
Sample order, 5-10 working days; Batch order, 10-25 working days regarding to actual order quantity .
Q8.What is your warranty period?
Warranty period is 12 months. This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
