Quick Details
-
Brand Name:
-
FENGYU
-
Model Number:
-
PMD75
-
Supply / Output:
-
4...20 mA
-
Accuracy:
-
0,15%
-
Main wetted parts:
-
Alloy C276 316L
-
Certificates:
-
ATEX FM IECEx
-
Pressure range:
-
-100kPa ~ 0 ~ 5KPa ... 100MPa
-
Pressure type:
-
Differential
-
POWER:
-
24V
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Germany
-
Brand Name:
-
FENGYU
-
Model Number:
-
PMD75
-
Supply / Output:
-
4...20 mA
-
Accuracy:
-
0,15%
-
Main wetted parts:
-
Alloy C276 316L
-
Certificates:
-
ATEX FM IECEx
-
Pressure range:
-
-100kPa ~ 0 ~ 5KPa ... 100MPa
-
Pressure type:
-
Differential
-
POWER:
-
24V

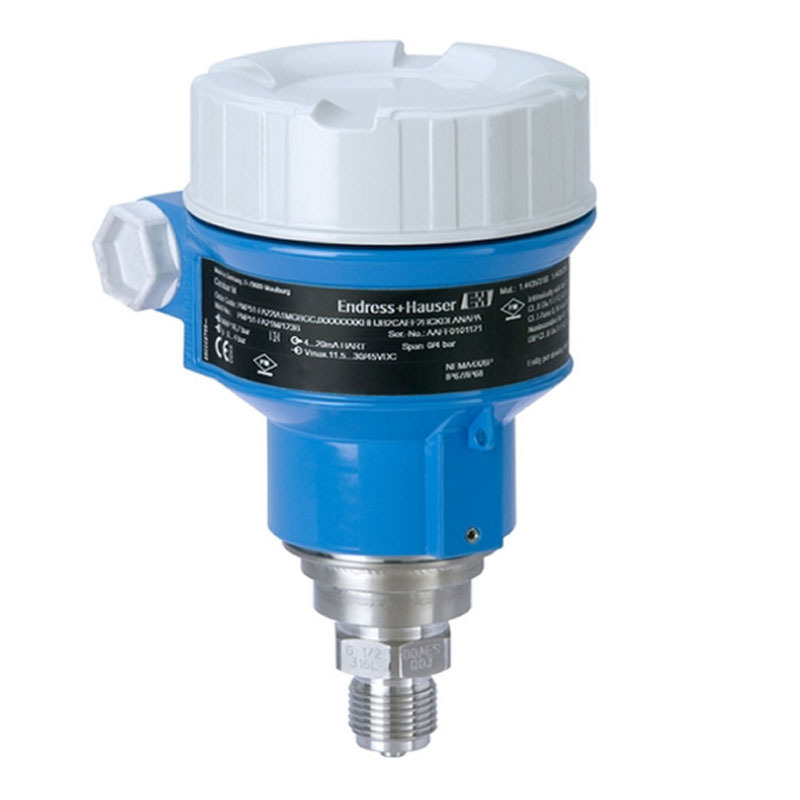

Endress+Hauser Absolute &Gauge Pressure Digital Pressure Transmitter PMP51 PMP71
Endress and Hauser Pressure Transmitter Cerabar S PMC71 is a high – accuracy digital and intellectual product meet the market needs of Chinese mainland. This series of product adopt sensor chip with highest performance and are designed incorporating with monolithic computer technology and sensor digital conversion technology, of which core component adopts 24–bit AD MCU micro – processor to ensure high quality of the transducer relying on its strong function and high – speed operation capacity.
Benefits:
-
Process connections: ¼” - 18 NPT, RC ¼”
-
Temperature: -40 to +85°C (-40 to +185°F)
-
Measuring ranges: +0.25mbar to +40bar (+0.0036psi to +600psi)
-
Accuracy: ±0.075%, "Platinum" ±0.05% (optional)
-
ATEX, FM, CSA, NEPSI, TIIS, IEC Ex, GL, ABS, 3-A, SIL3, WHG
|
Technical Data |
||||||||||
|
Measuring range |
-100kPa ~ 0 ~ 5KPa … 100MPa |
|||||||||
|
Overloading capacity |
Two times of FS pressure (where over pressure for 100MPa is designed with 1.1 times of FS pressure) |
|||||||||
|
Pressure type |
Gauge pressure or absolute pressure |
|||||||||
|
Medium to be measured |
The gas or liquid compatible with 316 stainless steel |
|||||||||
|
Overall accuracy |
±0.05% FS |
± 0.075% FS |
± 0.1% FS |
± 0.25% FS |
||||||
|
Long-term stability |
Typical: ± 0. 0 1% FS / year |
Maximum: ± 0. 0 2% FS / year |
||||||||
|
Zero point temperature drifting |
Typical: ± 0.005% FS |
Maximum: ± 0.01% FS / ℃ |
||||||||
|
Sensitivity temperature drifting |
Typical: ± 0.005% FS |
Maximum: ± 0.01% FS / ℃ |
||||||||
|
Range of operating temperature |
-40 ~ 85 ℃ |
|||||||||
|
Range of compensating temperature |
-10 ~ 60 ℃ |
|||||||||
|
R ange of ambient temperature |
-20~60 ℃ |
|||||||||
E+H Proline Promag 50PElectromagnetic flowmeter
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your enquiries in fluent English.
3. All our products have 1-year warranties.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.
E+H Proline Promag 50PElectromagnetic flowmeter
1.we can produce acoording to your requirments,OEM,ODM
2.we can supply ex-factory price as manufacturer,to help you defeat your opponent.
3.after payment we can deliver to you soon
4.we have ISO9001 certification and patent certification.
