Quick Details
-
Engine Brand:
-
HONDA
-
Travel Speed:
-
0-6.5km/h
-
Grade Ability:
-
35%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FURD
-
Dimension(L*W*H):
-
2100*1000*1650mm
-
Drum diameter:
-
540mm
-
Marketing Type:
-
1 Ton Asphalt Roller
-
Drive Type:
-
Hydraulic transmission
-
Vibration Model:
-
Hydraulic vibration
-
Nominal Amplitude:
-
0.5mm
-
Vibration Frequency:
-
70HZ
-
Water Tank:
-
60L
-
Hydraulic Oil Tank:
-
35L
-
Steel Wheel Size:
-
Dia540mm*800mm*2
-
After Warranty Service:
-
Online support
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
11HP/13HP
-
Weight:
-
1 Ton
-
Engine Brand:
-
HONDA
-
Travel Speed:
-
0-6.5km/h
-
Grade Ability:
-
35%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FURD
-
Dimension(L*W*H):
-
2100*1000*1650mm
-
Drum diameter:
-
540mm
-
Marketing Type:
-
1 Ton Asphalt Roller
-
Drive Type:
-
Hydraulic transmission
-
Vibration Model:
-
Hydraulic vibration
-
Nominal Amplitude:
-
0.5mm
-
Vibration Frequency:
-
70HZ
-
Water Tank:
-
60L
-
Hydraulic Oil Tank:
-
35L
-
Steel Wheel Size:
-
Dia540mm*800mm*2
-
After Warranty Service:
-
Online support
Product Description

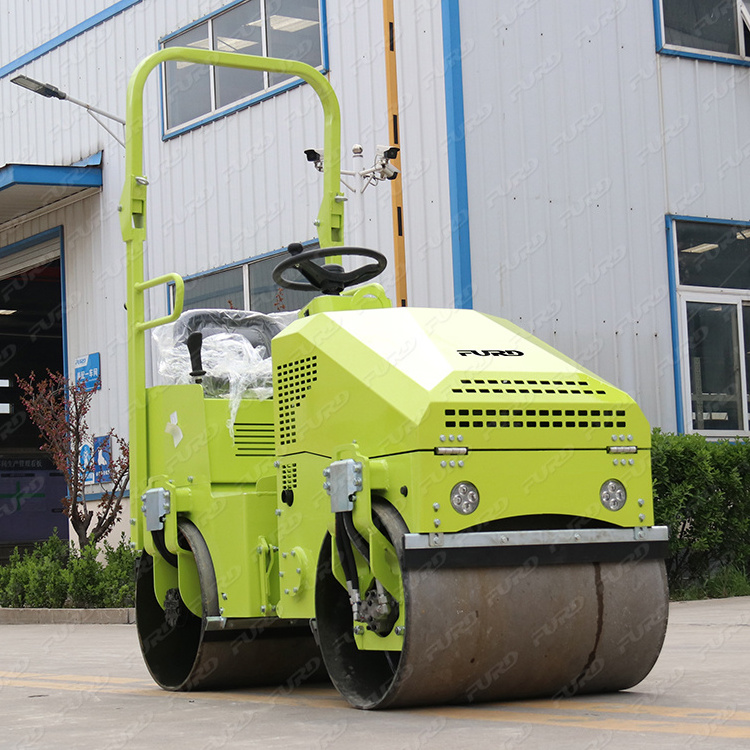

1 ton 28KN Ride-on Diesel Engine Road Roller for Construction Works
FURD 1000 kg full hydraulic road roller, easy to operate, easy to maintain and easy on the operator, FURD asphalt compaction equipment is built for the daily grind without the daily grief. With dual-drum drive technology, high vibration force up to 28 KN, impressive maneuverability and standard features you won’t find elsewhere, this easy machines are hard to beat.
Main Feature:
(1)
Full hydraulic travel and vibration drive.
(2)
Uses famous brand diesel or gasoline engine, superior performance, powerful driving force.
(3)
Adopt international brand variable piston pump, hydraulic system and stable performance.
(4)
International brand hydraulic motor, double wheels drive walking, front wheel vibration.
(5)
Front and rear double Led high efficiency lighting lamp, will be more convenient for the night construction.
Technical Parameter
|
Model
|
FYL-890
|
|
Walk Speed
|
0-6.5Km/h
|
|
Gradeability
|
35%
|
|
Drive Type
|
Hydraulic Transmission
|
|
Vibration Control
|
Hydraulic Vibration
|
|
Static Linear Load
|
56N/cm
|
|
Nominal Amplitude
|
0.5mm
|
|
Vibration Frequency
|
70Hz
|
|
Exciting Force
|
28KN
|
|
Water Tank
|
60L
|
|
Hydraulic Oil Tank
|
35L
|
|
Engine Model
|
Air Cooled Diesel Engine CF192/Honda Gasoline Engine GX390
|
|
Power
|
10.9HP/13HP
|
|
Steel Wheel Size
|
540mm*800mm*2
|
|
Dimension
|
2000*850*2180mm
|
|
Working Weight
|
1000Kg
|
|
Starting Mode
|
Hand and Electric
|
Application Scenario
Packing & Delivery
Packaging Details:
LCL Packing: Wooden Case;
FCL Packing: Pallet;
FURD can make packing according to customer's requirements.
LCL Packing: Wooden Case;
FCL Packing: Pallet;
FURD can make packing according to customer's requirements.
Sea Port: Qingdao, Shanghai, Tianjin, Ningbo, Guangzhou
