Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
onegol
-
Model Number:
-
50A
-
Product Name:
-

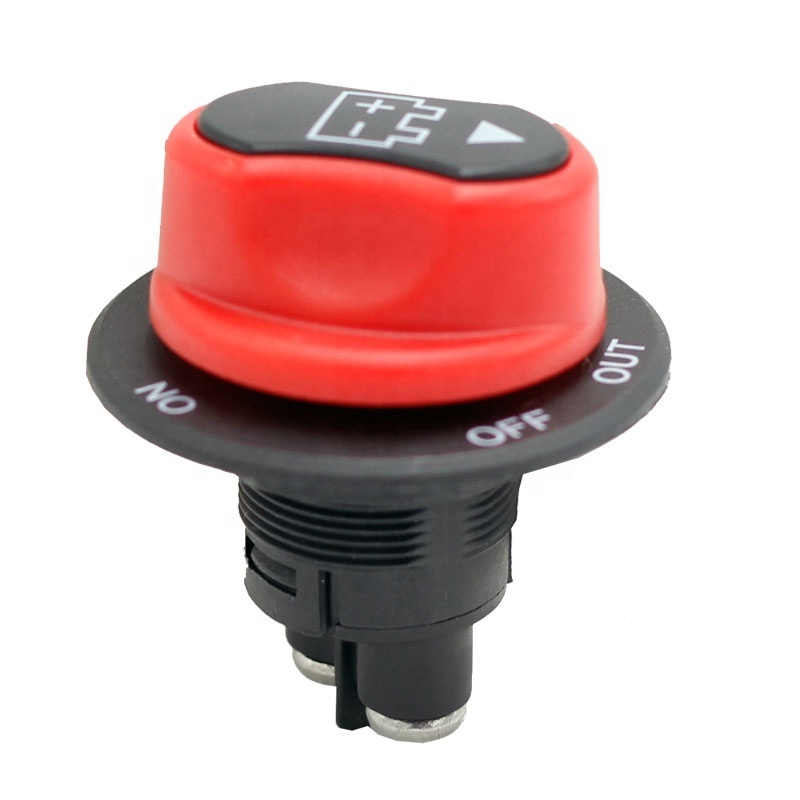

50A Heavy Duty Battery Isolator Switch
-
Voltage:
-
Max.50V DC
-
Continuous Rating:
-
50A/100A/200A/300A
-
Customization:
-
Logo & Pacaking
-
Certificate:
-
CE/ROHS
-
Gross Weight:
-
0.05KG
-
Usage:
-
Car/Boat
-
Insulation Resistance:
-
DC 500V 100M ohm Min
-
Contact Resistance:
-
50m ohm Max.
-
Switch Function:
-
2P SPST OFF-ON
Quick Details
-
Number of Pole:
-
2
-
Rated Current:
-
50A
-
Rated Voltage:
-
12
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
onegol
-
Model Number:
-
50A
-
Product Name:
-
50A Heavy Duty Battery Isolator Switch
-
Voltage:
-
Max.50V DC
-
Continuous Rating:
-
50A/100A/200A/300A
-
Customization:
-
Logo & Pacaking
-
Certificate:
-
CE/ROHS
-
Gross Weight:
-
0.05KG
-
Usage:
-
Car/Boat
-
Insulation Resistance:
-
DC 500V 100M ohm Min
-
Contact Resistance:
-
50m ohm Max.
-
Switch Function:
-
2P SPST OFF-ON
Specification
50A 100A 200A 300A CAR BATTERY KILL SWITCH ON/OFF BATTERY ISOLATOR SWITCH MASTER POWER DISCONNECT SELECTOR SWITCH
【Premium Quality,Durable】Made of premium ABS and metal material, 12V-48V battery disconnect switch is sturdy, not easy to aging and abrasion resistant, to ensure maximum strength and durability for long lasting usage.
*【Waterproof & Protective Cover】This waterproof power disconnect cut off switch is designed with a waterproof cover on the top can better protect the key hole. Professional characteristics, high reliability. Compact size, sleek modern appearance, easy to install and wire.
*【Waterproof & Protective Cover】This waterproof power disconnect cut off switch is designed with a waterproof cover on the top can better protect the key hole. Professional characteristics, high reliability. Compact size, sleek modern appearance, easy to install and wire.
|
Product Name
|
50A 100A 200A 300A CAR BATTERY KILL SWITCH ON/OFF BATTERY ISOLATOR SWITCH MASTER POWER DISCONNECT SELECTOR SWITCH
|
|
Color
|
Black + Red
|
|
Continuous Rating
|
100 Amps 32VDC Max.
|
|
Intermittent Rating
|
150 Amps
|
|
Cranking Rating
|
500 Amps 5 sec.
|
|
Contact Resistance
|
50m ohm Max
|
|
Insulation Resistance
|
DC 500V 100M ohm Min
|
|
Dielectric Strength
|
AC 1000V 1 minute, DC 2000V 1 minute
|
|
Operation Temperature
|
-30℃ ～+60℃
|
|
Switch Function
|
2P SPST OFF-ON
|
