Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
THJX
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
20 kg
-
Product name:
-
Stainless steel mesh belt
-
Packing:
-
Wooden Boxes
Quick Details
-
Power:
-
0.75/1.5/2.2 KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
THJX
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
20 kg
-
Product name:
-
Stainless steel mesh belt
-
Packing:
-
Wooden Boxes
Products Description

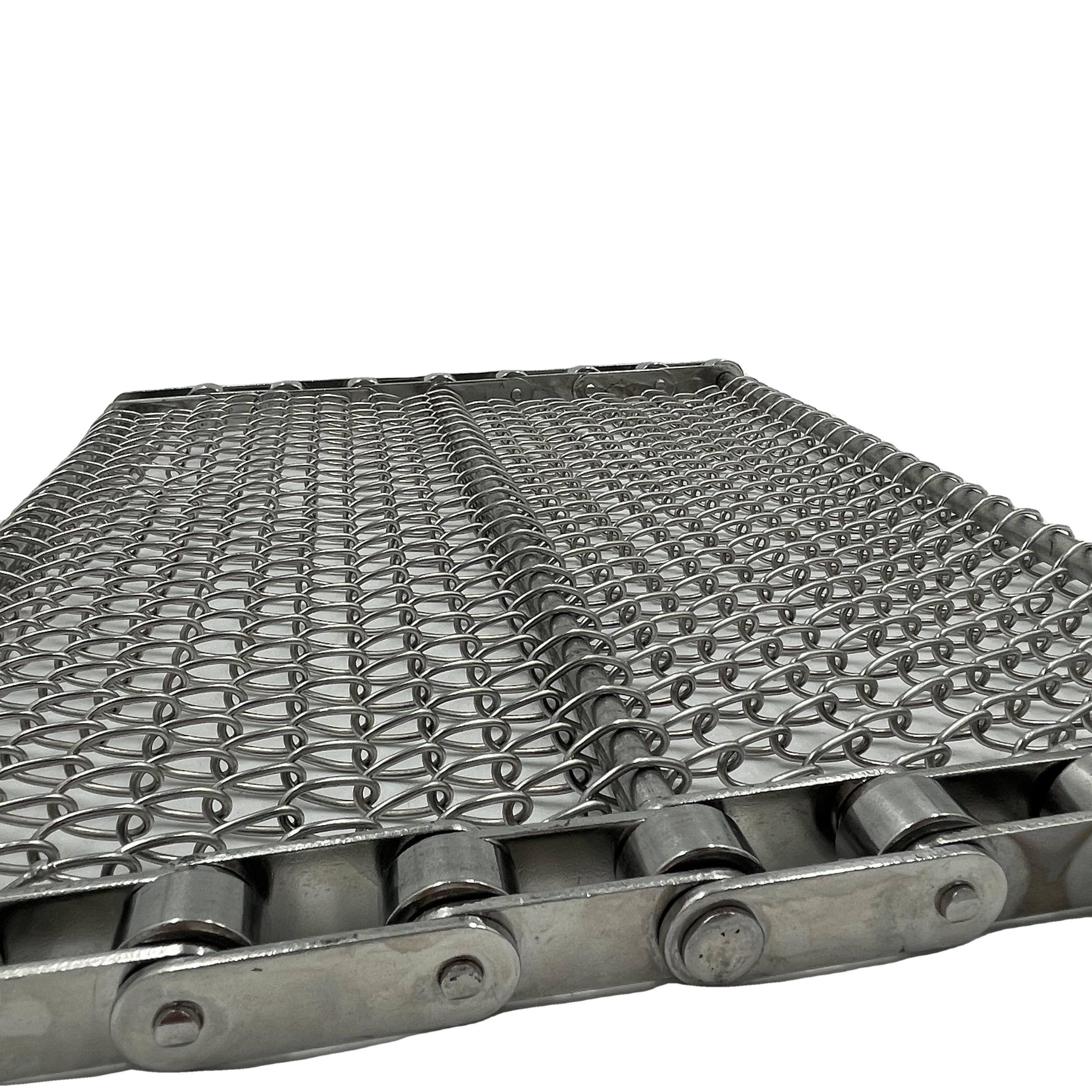

Stainless steel mesh belt
these conveyor belt are used for treatment of metal products spiral of the same direction are arranged .
1:the sprocket drive ensures postive and stable running
2:the rotation diameter is small so that smooth products transfer is ensured .
3:easy washing is ensured .
4:because of large open area , high air permeability and dehydration capacity are ensured .
5:postive sprocket drive ensures stable running .
6:reinforcement plate links are made for heavy load and high speed .
7:chain is driven by sprocket, meandering does not occur.
8:various types of chain can be applied by adjusting belt pitch .
these conveyor belt are used for treatment of metal products spiral of the same direction are arranged .
1:the sprocket drive ensures postive and stable running
2:the rotation diameter is small so that smooth products transfer is ensured .
3:easy washing is ensured .
4:because of large open area , high air permeability and dehydration capacity are ensured .
5:postive sprocket drive ensures stable running .
6:reinforcement plate links are made for heavy load and high speed .
7:chain is driven by sprocket, meandering does not occur.
8:various types of chain can be applied by adjusting belt pitch .
|
Material
|
Stainless steel 304, 201, 316, 314, carbon steel, etc
|
|
|
Chain Pitch(mm)
|
12.7, 15.875, 19.05, 25.4, 31.75, 38.1, 50.8, 63.5, 76.2, 101.6
|
|
|
Support Rod Diameter(mm)
|
4-200
|
|
|
Wire Diameter(mm)
|
1.0,1.2,1.4,1.5,1.6,1.8,2,2.5,3
|
|
|
Spiral Pitch(mm)
|
2.8-40
|
|
|
Rod Pitch(mm)
|
5-300
|
|
|
Belt Width(mm)
|
100-6000
|
|
|
Special specifications are available.
|
|
|
