Quick Details
-
Control System Brand:
-
Topwisdom,
-
Cutting Area:
-
900*600mm
-
Cutting Thickness:
-
30mm
-
Control Software:
-
Autolaser
-
Place of Origin:
-
Shandong, China (Mainland)
-
Brand Name:
-
Redsail
-
Weight (KG):
-
240 KG
-
Roller slip brand:
-
REDSAIL
-
Certification:
-
CE
-
Laser power:
-
60W/80W/100W
-
Control system:
-
DSP
-
Driver type:
-
Micro Stepping Motor
-
Resolution:
-
2500 DPI
-
Image form:
-
Plt, Dxf, Bmp, Ai, Dst
-
Red Dot Pointer:
-
Yes
-
Location precision:
-
<0.01mm
-
Motorized Up and Down table:
-
180mm
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1000mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Topwisdom,
-
Cutting Area:
-
900*600mm
-
Cutting Thickness:
-
30mm
-
Control Software:
-
Autolaser
-
Place of Origin:
-
Shandong, China (Mainland)
-
Brand Name:
-
Redsail
-
Weight (KG):
-
240 KG
-
Roller slip brand:
-
REDSAIL
-
Certification:
-
CE
-
Laser power:
-
60W/80W/100W
-
Control system:
-
DSP
-
Driver type:
-
Micro Stepping Motor
-
Resolution:
-
2500 DPI
-
Image form:
-
Plt, Dxf, Bmp, Ai, Dst
-
Red Dot Pointer:
-
Yes
-
Location precision:
-
<0.01mm
-
Motorized Up and Down table:
-
180mm
Product Description

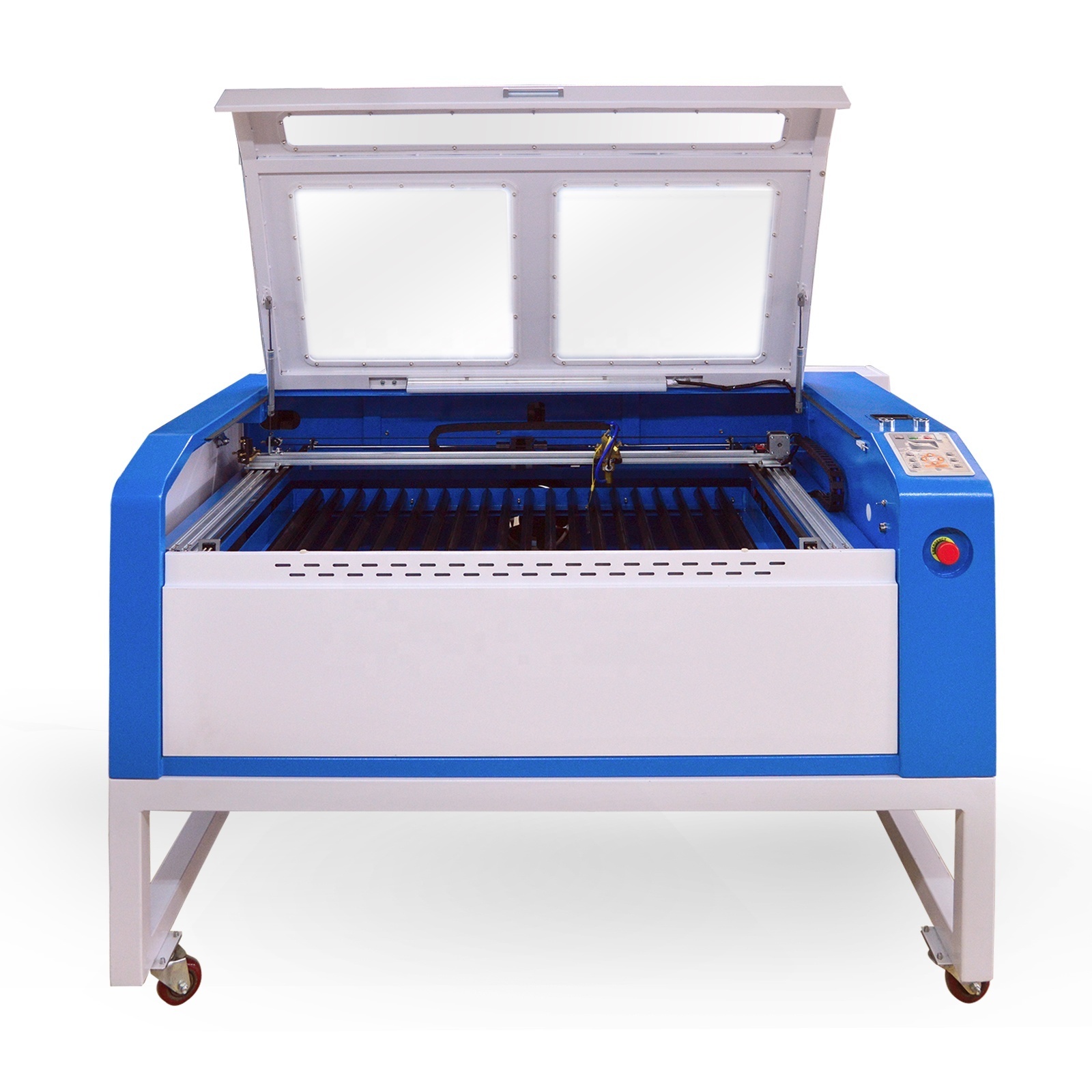

Redsail Laser Cutting Machine work with Co2 Laser, it is used for cutting wooden plate, acrylic, paper, plastic, rubber and other no-metal materials for complex shape. Redsail high quality Laser Cutter is useful in many prodas air plane model, advertisement, decoration, article gifts, toys, and face guard of machine. Redsail Laser Cutting Machine and Laser Cutter is designed for industry application, driven by high-grade stepper motor, precision guide way drive and High-precision in positioning make the running more stable, Large area precision cutting mechanical movement system can guarantee smoothness and flatness of cut cross section. The Laser power of Redsail Laser cutter is from 60W/80W/100W.
Specification
|
Model
|
M6090E
|
M4060E
|
|
|
Laser tube
|
Water cooling Co2 sealed glass
|
|
|
|
Control
system
|
DSP
|
|
|
|
Laser Power
|
60W/80W/100W
|
50w/60W/80W/100W
|
|
|
Work Area
|
900 x 600 mm
|
600 x 400 mm
|
|
|
Max speed
|
1000 mm/s
|
|
|
|
Image form
|
Plt, Dxf, Bmp, Ai, Dst
|
|
|
|
Resolution
|
2500 DPI
|
|
|
|
Controller
|
Ruida(RDWorks)/TopWisdom(AutoLaser)
|
|
|
|
PC Interface
|
USB3.0/ USB Disk
|
|
|
|
Red Dot Pointer
|
Yes
|
|
|
|
Location precision
|
<0.01mm
|
|
|
|
Motorized Up and Down table
|
180mm
|
|
|
|
Power
|
110V-240V/ 50-60Hz
|
|
|
|
Package Dimension
|
1630*1080*990 mm
|
1330*880*680 mm
|
|
|
N. W.
|
180KG
|
70KG
|
|
|
G. W.
|
240KG
|
100KG
|
|
Details
Standard accessories
1) Laser Engraving software Package(English Version)
2) User Manual(CD)
3) Water pump
4) Air exhaust fan
5) Air Pump
6) Communication cable
7) 3 Reflect optics(installed in the machine)
8) 1 Focus optics(installed in the machine)
9) 1 Laser tube
10) Other tools
2) User Manual(CD)
3) Water pump
4) Air exhaust fan
5) Air Pump
6) Communication cable
7) 3 Reflect optics(installed in the machine)
8) 1 Focus optics(installed in the machine)
9) 1 Laser tube
10) Other tools
Optional accessories
1) Rotary attachment
2) Red dot pointer
3) Laser tube of high power(80W/100W)
4) Honeycomb platform
5) Water chiller(CW-3000/5000)
2) Red dot pointer
3) Laser tube of high power(80W/100W)
4) Honeycomb platform
5) Water chiller(CW-3000/5000)
6) RUIDA
Sample
Application
Laser engraving machine cutting no-metal materials for complex shape.
Acrylic cutting and engraving, board cutting, wood model cutting, textile cutting, leather cutting and fur engraving.
Packing & Delivery
Standard Export Wooden Box
