With an LED light that can be selected to be always on or manually operated
*
Different FOV lens are available, please contact us to make it happen.
* Mini board size 43*9mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
OV5648 perfect substitutes
-
Description:
-
usb mini camera module
-
Special Features:
-
USB Camera Module
-
Type:
-
Digital Camera
-
Sensor Size:
-
1/4 inch
-
Technology:
-
Infrared
-
Pixel:
-
5MP
-
Image Sensor:
-
OV5640 Sensor
-
Interface:
-
Optional Parallel DVP / MIPI
-
interface1:
-
MIPI Camera Module
-
interface2:
-
Parallel DVP Camera Module
-
FOV:
-
80°
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
haozhou
-
Model Number:
-
OV5640
-
Mounting Type:
-
OV5648 perfect substitutes
-
Description:
-
usb mini camera module
-
Special Features:
-
USB Camera Module
-
Type:
-
Digital Camera
-
Sensor Size:
-
1/4 inch
-
Technology:
-
Infrared
-
Pixel:
-
5MP
-
Image Sensor:
-
OV5640 Sensor
-
Interface:
-
Optional Parallel DVP / MIPI
-
interface1:
-
MIPI Camera Module
-
interface2:
-
Parallel DVP Camera Module
-
FOV:
-
80°
Function
* 1/4”OV5640 sensor
5 MP 2592*1944
for high quality image
Applies to:

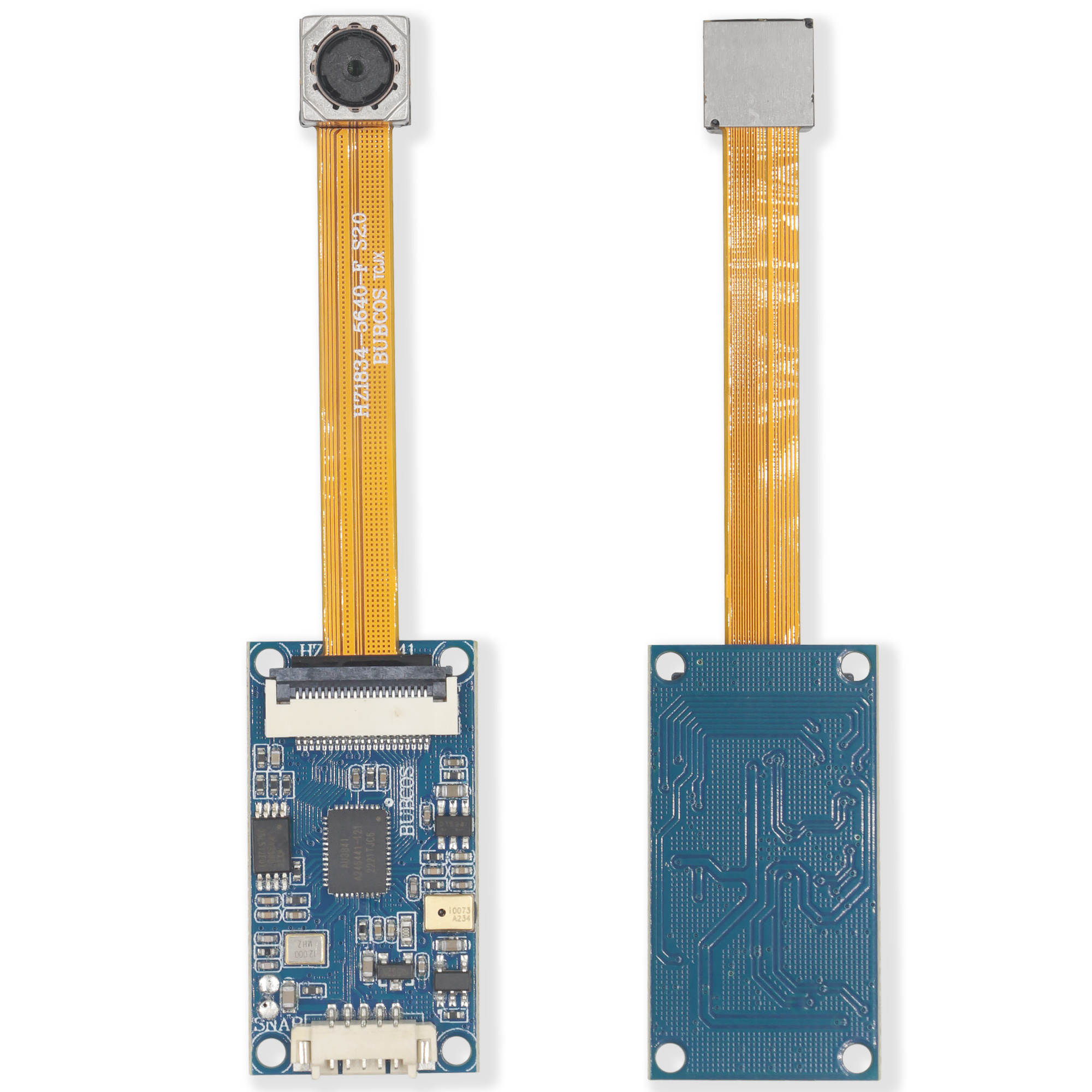

MK500 is a 5MP autofocus USB camera module suitable for laptops, industrial computers, medical computers, barcode scanners and vending machines , Also apply for Security especially for ATM Machines, etc. This camera module is based on 1/4" OV5640 sensor, the maximum resolution is about 2592*1944p, which can present you High-quality and high-speed RGB video images.
Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
UVC compliant - support Windows, Linux, Android system with UVC
Product Paramenters
|
Module
|
MK500-1
|
|
|
Module Size
|
43*9 mm
|
|
|
Object Distance
|
20cm - 100cm
|
|
|
Focus
|
Auto Focus
|
|
|
Audio
|
Not Support
|
|
|
Interface
|
USB2.0
|
|
|
Voltage
|
5V
|
|
|
Temperature (Operation)
|
-30°C to 70°C
|
|
|
Assembly technique
|
SMT (ROSH)
|
|
|
PCB printing ink
|
Black
|
|
|
Operating system
|
WIFIBOX, WINPX, WIN SP2, VISTA, Win 7.0,
Win 8.0, Win10, Linux, Android 4.4 free driver |
|
|
Package
|
Anti-electrostatic tray
|
|
|
Sensor Type
|
|
|
|
Sensor No.
|
OmniVision OV5640
|
|
|
Sercor Type
|
1/4”
|
|
|
Active Array Size
|
2048*1536
|
|
|
Pixel Size
|
1.4 μm x 1.4 μm
|
|
|
MAX Image Transfer rate
|
2592*1944 / 640*480 @15FPS
|
|
|
Dynamic Range
|
/
|
|
|
LENS
|
|
|
|
Lens Type
|
3P+IR
|
|
|
Data Format
|
AV interface
|
|
|
Image Circle
|
CSP
|
|
|
FOV
|
D=65° （OEM）
|
|
|
IR Filter
|
0.81mm
|
|
|
Mount
|
M5*P0.5mm
|
|
|
DSP Type
|
|
|
|
AGC/AEC/Whiter balance
|
<1.0%
|
|
|
Output Formats
|
>48%
|
|
|
Fixed Pattern Noise
|
650±10nm
|
|
|
Certifications
|
ISO/FCC/ CE/ ROHS
|
|
Details Images
MK500 OV5640 5MP real shooting effect
