Quick Details
-
Brand Name:
-
corder
-
Model Number:
-
ASOM-6B
-
Shelf Life:
-
1 years
-
Safety standard:
-
IEC 60601
-
Properties:
-
Microsurgery Equipments
-
Type:
-
surgical microscope
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
corder
-
Model Number:
-
ASOM-6B
-
Shelf Life:
-
1 years
-
Safety standard:
-
IEC 60601
-
Properties:
-
Microsurgery Equipments
-
Type:
-
surgical microscope

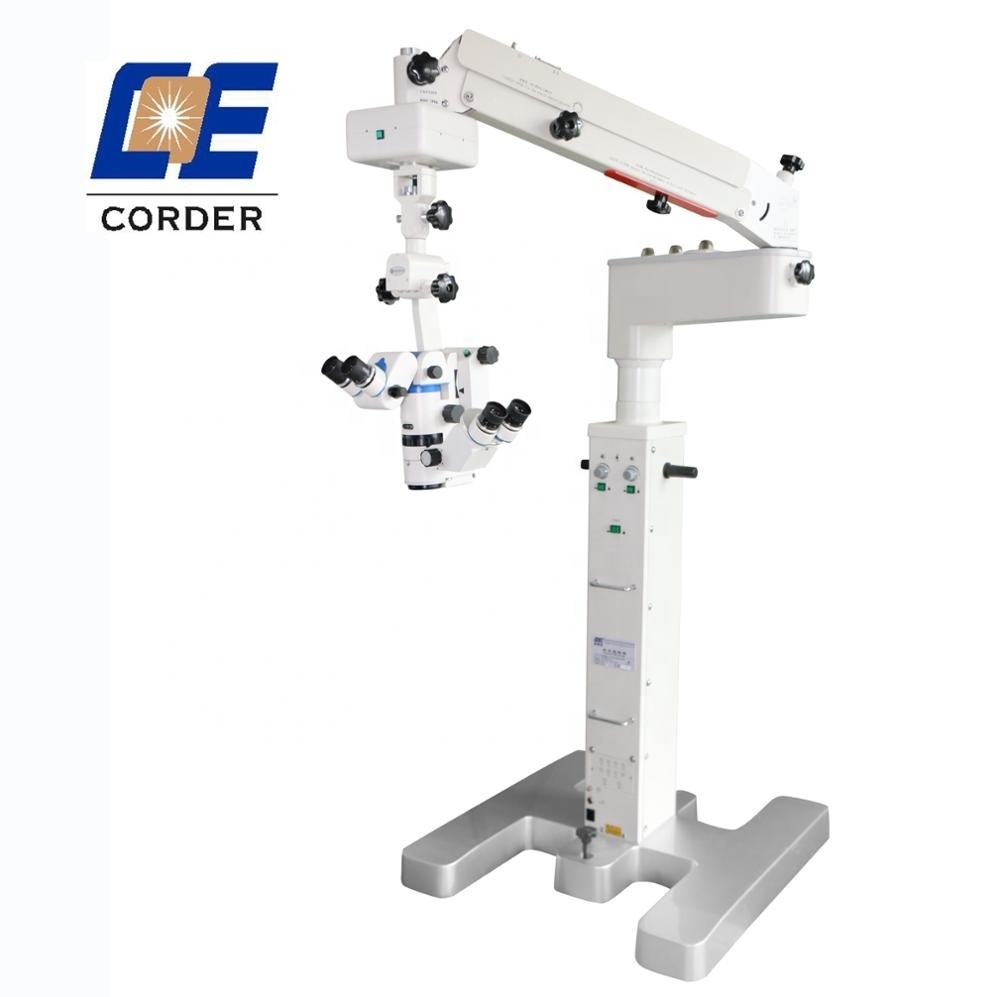

medical microscope for opthalmology plastic ENT dental surgery ASOM-6/B
The ASOM-6/B is the bran-new multifunctional operation microscope of Chengdu corder Optics & Electronics company. It have perfect optics system and the biggest depth of field. It can be used in ophthalmology surgery, Neurosurgery, dentistry, Orthopedics, E.N.T Dept.
Specification
New changing diaphragm give you perfect depth of field
Eyepieces
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 180mm.
Binocular tube
30°~90°variable angle binocular tube, add new pupil distance adjustment
Magnification
6:1 zoom, motorized, magnification 5.1x~30.6x; field of view Φ45~Φ7.5mm
Coaxial assistant’s binocular tube
manual 3-step changer, total magnification 6.4x,10.8x,17.3x; field of view Φ31mm,Φ19mm,
Φ12mm
Coaxial illumination
illumination diameter of light spot Φ50mm, illumination intensity 100000lux
Oblique illumination
illumination range 50mm,illumination intensity 25000lx
Objectives
f 200mm (175mm, 250mm etc )
Focusing
motorized, range +/-25mm, speed 33s/whole distance
X-Y translator
move in X-Y direction motorised, range +/-30mm
Maximum length of arm
1200mm
Stand
swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm<H<1250
Foot switch
waterproof, 8 function steps
Weight
164kg
ASOM-6/B
Head
Footswitch
We are one of the subsidiary companys of The Institute of Optics & Electronics, Chinese Academy of Sciences(CAS). Corder have been researched and developed operation microscope since 1970s,meanwhile research other optical product:Mask aligner/Adaptive optics vision cure apparatus and so on.
| Model | Gross weight(Kg) | Net weight(Kg) | Cartons | dimensions(mm) |
| ASOM-6/B | 167 | 153 | Four Cartons |
885x860x195 890x640x250 1020x260x297 594x460x230
|
ISO Patent
