Quick Details
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
based on furnace size
-
Weight (T):
-
5 T
-
Power (kW):
-
200
-
Energy medium:
-
Electric
-
Effective working size:
-
1500*2400mm (Dia* Height)
-
Temperature:
-
max 950℃
-
Furnace lining:
-
refractory fiber
-
Resistance Heating Element:
-
0Cr25Al5
-
Muffle Material:
-
321 stainless steel 10mm thick
-
Temperature control zone:
-
3 zones + 1 point temperature measurement
-
Temperature uniformity:
-
≤±10℃
-
Temperature control accuracy:
-
±2℃
-
Temperature control:
-
SCR PID control
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
WONDERY
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
based on furnace size
-
Weight (T):
-
5 T
-
Power (kW):
-
200
-
Energy medium:
-
Electric
-
Effective working size:
-
1500*2400mm (Dia* Height)
-
Temperature:
-
max 950℃
-
Furnace lining:
-
refractory fiber
-
Resistance Heating Element:
-
0Cr25Al5
-
Muffle Material:
-
321 stainless steel 10mm thick
-
Temperature control zone:
-
3 zones + 1 point temperature measurement
-
Temperature uniformity:
-
≤±10℃
-
Temperature control accuracy:
-
±2℃
-
Temperature control:
-
SCR PID control
Product Application

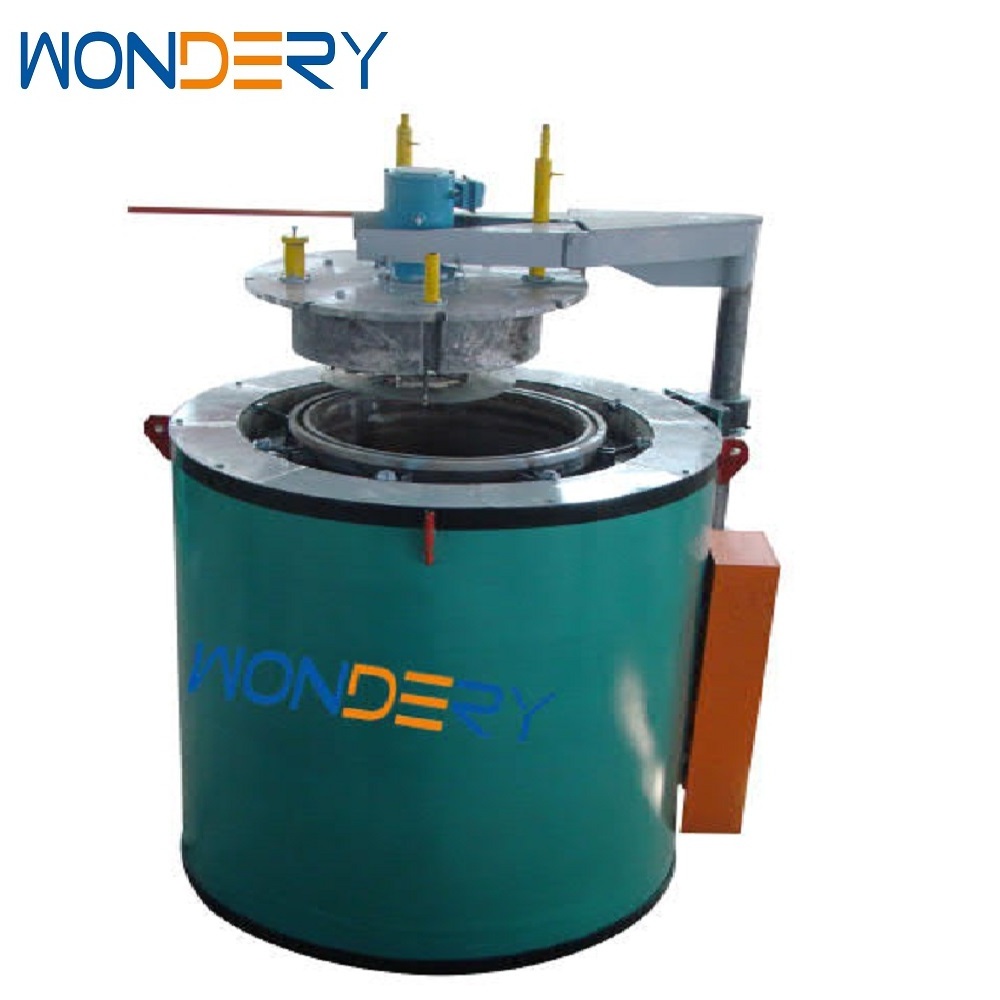

The pit type annealing furnace is used for annealing and spheroidizing heat treatment of metal wires, steel coils and alloy wires. The furnace is suitable for heat treatment 950℃ such as high temperature annealing other heat treatment process.
annealing furnace annealing furnace annealing furnace annealing furnace
|
SPECIFICATIONS FOR RJ2-200-9 Pit Type Electric Resistance Oxygen-free Spheroidizing Annealing Furnace
|
|
|
|
|||
|
No.
|
Item
|
Parameter
|
720-850
|
|||
|
1
|
Rated heating power
|
200KW+5%（1-100% adjustable）
|
≤ 45
|
|||
|
2
|
Rated temperature
|
950℃
|
≤±1.5
|
|||
|
3
|
Normal working temperature
|
750-870℃
|
≤±10
|
|||
|
4
|
Power supply
|
380V, 3 phase, 50HZ (or customized)
|
90kW+10% (1-100% adjustable)
|
|||
|
5
|
Effective working size
|
Ø1500*2400mm (Diameter*Height)
|
Ø1200×1200mm
|
|||
|
6
|
Furnace body and cover opening method
|
By crane
|
by crane
|
|||
|
7
|
Heating zone
|
3 zones+ 1 point temperature measurement
|
SCR, PID control, Intelligent temperature controllor, over temperautre alarm and timing function
|
|||
|
8
|
Heating sides
|
four sides of furnace hearth+ the furnace bottom
|
four sides of furnace hearth+ the furnace bottom
|
|||
|
9
|
Furnace lining
|
Refractory fiber for wall and cover;
heavy refractory bricks for bottom;
|
refractory fiber for wall and cover; heavy refractory bricks for bottom;
|
|||
|
10
|
Cooling method
|
Air cooling
|
|
|||
|
11
|
Furnace bottom loading capacity
|
10tons
|
|
|||
Main Features
RJ2-200-9 Pit Type Electric Resistance Annealing Furnace is comprised of furnace body, furnace cover, heating elements, electric control system and temperature automatic control system.
furnace shell
: The furnace shell is made from 10# ~12# sectional steel and the furnace bottom plate thickness is
6mm .
Lining
: The furnace lining is all fiber structure which are fixed to the furnace body by stainless steel
fixtures. The total lining thickness is 320mmm, including 300m pre-compressed fiber block and 20mm
backer cotton.
Heating element:
The furnace employs quality 0Cr25AL5 high temperature alloy belts as heating elements. The
heating element is retained to the furnace wall through porcelain nails.
Furnace cover: The furnace cover is made of 12# U-steel and 6mm steel plate. The heat preservation material adopts
aluminum silicate fiber compression block and it was fixed by stainless steel pieces. The opening
method of the furnace cover is by crane. The furnace cover is sealed by sand.
Muffle tank: The muffle tank is made 321 stainless steel plate. It is placed in the furnace hearth. The
cover and bottom of the furnace body are both pressed into shape. The upper part of the furnace body issurrounded by a stainless steel sand sealing groove. And there is an all fiber furnace cover outside the
furnace body so as to form double insulation and seal. So that the energy saving and prevent oxidation
effect has been improved greatly.
over-temperature alarm. The audible and visual over-temperature alarm would be activated if one
zone temperature is over the limit.
|
NO.
|
Item
|
Q'ty
|
Remark
|
|
1
|
Furnace body
|
1 set
|
Including bottom hearth plate
|
|
2
|
321 stainless steel muffle tank
|
1 set
|
including muffle tank cover
|
|
3
|
Heating elements
|
1 set
|
Electric resistance strip
|
|
4
|
Temperature control system
|
1 furnace set
|
|
|
5
|
Control cabinet
|
1 set
|
|
|
6
|
SCR
|
9 sets
|
|
|
7
|
Compensating lead wire
|
100m
|
|
|
8
|
Thermal couple
|
3 pcs
|
K type 0-1100
|
|
9
|
Electrical components
|
1 set
|
Contactor, air switch, ampere meter,
voltmeter, thermal relay, switches. |
