Quick Details
-
Insulation Material:
-
XLPE
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BoRt
-
Model Number:
-
UL3321
-
Package:
-
Plastic bag ,Bobbin,coil,Reel,Drum
-
Colors:
-
Optional
-
Service:
-
ODM,OEM
-
Certification:
-
ROHS/UL/CB/VDE
-
Quality control:
-
ISO 2008-9001
-
Reference standard:
-
UL 758,UL1581, C22.2No.210.
-
Packing:
-
Roll 305m/Roll ,610m/roll
-
Shipment:
-
Sea/Air/Express
-
Printing:
-
Customize
-
Sample:
-
available
Quick Details
-
Application:
-
general purpose internal wiring of appliance
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
XLPE
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BoRt
-
Model Number:
-
UL3321
-
Package:
-
Plastic bag ,Bobbin,coil,Reel,Drum
-
Colors:
-
Optional
-
Service:
-
ODM,OEM
-
Certification:
-
ROHS/UL/CB/VDE
-
Quality control:
-
ISO 2008-9001
-
Reference standard:
-
UL 758,UL1581, C22.2No.210.
-
Packing:
-
Roll 305m/Roll ,610m/roll
-
Shipment:
-
Sea/Air/Express
-
Printing:
-
Customize
-
Sample:
-
available

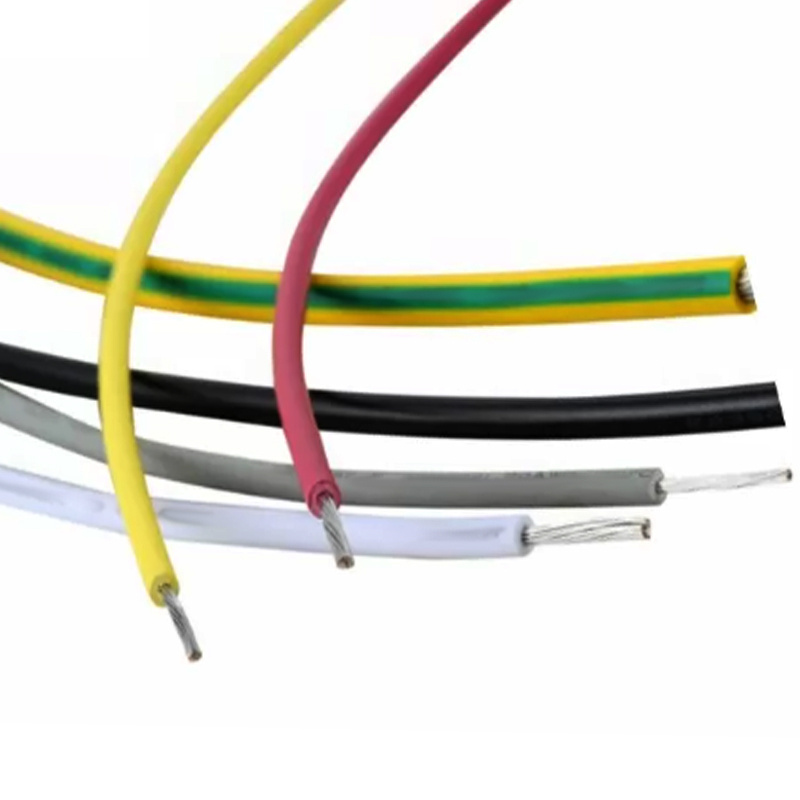

Product Description
●Rated temperature：150℃
●Rated voltage：600V AC,750V DC
●Reference standard：UL758,UL1581,CSA C22.2No.210.2
●Solid or stranded ,tinned or bare copper conductor 30~10AWG
●FR-XLPE insulation ,comply with ROHS environmental standard
●Passes UL Horizontal and CSA FT2 flame test
●Uniform insulation thickness to ensure easy stripping and cutting
●For general purpose internal wiring of appliance
|
CONDUCTOR
|
|
|
INSULATION
|
|
|
MAX.COND.RESISTANCEΩ/km,(20℃，DC)
|
|
DIELECTRIC STRENGTH V(AC,1min)
|
|
||||||
|
AWG
|
CONSTRUCTION (No./mm)
|
DIA (mm)
|
THICKNESS (mm)
|
|
O.D. (mm)
|
|
|
|
|
||||||
|
30
|
7/0.10
|
0.30
|
0.80
|
|
1.90
|
381
|
|
2.000
|
|
||||||
|
28
|
1/0.32 7/0.127 7/0.127 OS-1*
|
0.32 0.38 0.38
|
0.79 0.81 0.81
|
|
1.9O 2.00 2.00
|
227 239 239
|
|
2.000
|
|
||||||
|
26
|
1/0.404 7/0.16 7/0.16 OS-1*
|
0.40 0.48 0.48
|
0.80 0.81 0.81
|
|
2.00 2.10 2.10
|
143 150 150
|
|
2.000
|
|
||||||
|
24
|
1/0.511 11/0.16 7/0.20 OS-1*
|
0.51 0.61 0.60
|
0.80 0.82 0.83
|
|
2.10 2.25 2.25
|
89.3 94.2 94.2
|
|
2.000
|
|
||||||
|
22
|
1/0.643 17/0.16 7/0.254 OS-1*
|
0.64 0.76 0.76
|
0.80 0.82 0.82
|
|
2.25 2.40 2.40
|
56.4 59.4 59.4
|
|
2.000
|
|
||||||
|
20
|
1/0.813 26/0.16 7/0.32 OS-1*
|
0.81 0.94 0.96
|
0.80 0.81 0.80
|
|
2.40 2.55 2.55
|
35.2 36.7 36.7
|
|
2.000
|
|
||||||
|
18
|
1/1.024 16/0.254 41/0.16
|
1.02 1.17 1.18
|
0.82 0.82 0.81
|
|
2.65 2.75 2.75
|
22.2 23.2 23.2
|
|
2.000
|
|
||||||
|
16
|
1/1.29 26/0.254
|
1.29 1.49
|
0.81 0.81
|
|
2.90 3.10
|
14.0 14.6
|
|
2.000
|
|
||||||
|
14
|
1/0.160 41/0.254
|
1.60 1.88
|
0.80 0.81
|
|
3.20 3.50
|
8.78 8.96
|
|
2.000
|
|
||||||
|
12
|
65/0.254
|
2.36
|
0.82
|
|
4.00
|
5.64
|
|
2.000
|
|
||||||
|
10
|
7/15/0.254
|
3.40
|
0.83
|
|
5.05
|
3.54
|
|
2.000
|
|
||||||
