Quick Details
-
Model Number:
-
MVT-K08
-
Monitor:
-
built-in 10"inch HD LCD Screen
-
Camera:
-
Wireless camera
-
NVR:
-
built-in WIFI rooting module
-
Components:
-
NVR, Camera, Power, Mouse, Monitor
-
Function:
-
Plug and Play,no need connect cables
-
Camera lens:
-
3.6mm Lens
-
With P2P Function:
-
YES
-
Certificate:
-
CE, RoHS, FCC
-
Size:
-
257mm(W)*210mm(V)*45mm(H)
-
Product name:
-
CCTV Wireless Camera System 8CH wifi nvr kits cctv kit
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof, Vandal-proof
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MVTEAM or OEM or Neutral
-
Model Number:
-
MVT-K08
-
Monitor:
-
built-in 10"inch HD LCD Screen
-
Camera:
-
Wireless camera
-
NVR:
-
built-in WIFI rooting module
-
Components:
-
NVR, Camera, Power, Mouse, Monitor
-
Function:
-
Plug and Play,no need connect cables
-
Camera lens:
-
3.6mm Lens
-
With P2P Function:
-
YES
-
Certificate:
-
CE, RoHS, FCC
-
Size:
-
257mm(W)*210mm(V)*45mm(H)
-
Product name:
-
CCTV Wireless Camera System 8CH wifi nvr kits cctv kit
8 Channel Wifi 1080P ip camera NVR CCTV Wireless Camera System 8CH wifi nvr kits cctv kit
NVR with built-in 10 inch LCD screen and wifi module.
Real plug and play, no need wifi configurations.
---Save your cost on monitor,switch,cables,installtion and after-sale service.

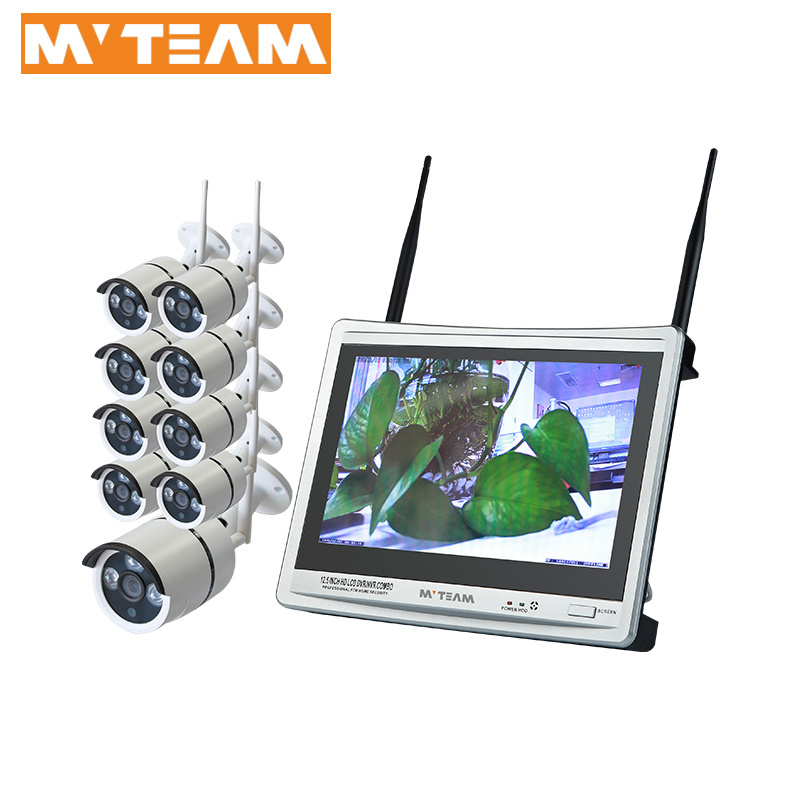

What's the wireless NVR Kit included?
1pc 8ch wireless HD NVR with build-in 10" inch LCD Screen and WIFI module
8pcs Outdoor HD Wireless IP Camera
8pcs 12V(DC)/2A power adaptors
1pc detailed quick installation guide manual
1pc CD come with CMS softwares and instructions
Specs of each item
1-4CH Wireless NVR
*Built-in 10" inch HD LCD Screen (resolution:1280*1024),which support 330 degree rotate,
*built-in high functional and stability wireless WI-FI rooting module,
support 802.11b/g/n protocol,150Mbps,
*HDMI output.
*Video input:8*720P;8*960P,Playback:8*960H,4*720P; 8*960P
*3pcs USB interfaces, Support HDD up to 4TB,cloud technology, P2P,mouse x1
| Wireless NVR | ||
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 8CH |
| Network video input broadbank | 20Mbps | |
| AV (audio/video) output | HDMI input |
1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p |
| AV CODEC Specification | Video Resolution | D1/720P |
| synch-playback | 8CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface |
1 adaptable RJ45 10M/100M,
2 WIFI interface |
| USB Interface | 3 USB 2.0 | |
| Network Control | Protocol |
UPnP (play&plug),SMTP (email survice),PPPoE (dial-up),
DHCP (Automatically obtain an IP address), etc… |
| Others | Power | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10 ℃ ~+55 ℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |
MVTEAM Wireless NVR Menu
2-720P Outdoor Wireless IP Camera
*1.0M/720P wireless IPC
*with IR CUT
*3.6mm Lens
*3pcs 3rd generation LED Array,30m IR Distance
*Waterproof IP66
Wireless IP Camera picture
3-12V(DC)/2A Power adaptor for wireless IP Camera
4-CD and quick installation guide manual
Welcome to check Customers feedback about MVTEAM Wireless NVR Kit at below link:
http://www.mvteamcctv.com/news/Customers-feedback-about-MVTEAM-Wireless-NVR-Kit.html
Q1- Whether MVT-K04DH include hard disk ?
A1: MVT-K04DH come with all needed accessories except the hard disk ,
as difference customers need difference capacity HDD, if you need it from us, just let us know freely.
Q2- Whether the security system support network and mobile phone remote view ?
A2: Yes, it can support network function. You can remote view the camera image from any where in the world by computer(IE browser & client software) and smartphone like: iPhone, Anroid OS,
like for mobile view only need download the APP ESEENET+
more details can be found in our weblink
http://www.mvteamcctv.com/news/How-to-remote-view-wireless-NVR-kit-on-mobile-phone.html
Q3- What is the maximum distance between NVR and Camera?
A3: The wireless system is a closed system, the signal is from NVR to Camera,
Q6- Do you have any certificates for the security equipment?
A5: Yes, all MVTEAM DVR kits are with CE, RoHS, FCC certificates for Europe and USA markets.
In addition, MVT-K04DH have been mass sell to Walmart in Brazil in 2012.
