Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Thickness:
-
1.5mm -3mm
-
Operation temperature::
-
250 ℃
-
Heating element:
-
Ni-Cr or FeCrAl
-
Shape:
-
customized
-
thermostat:
-
with or w/o
-
Lead wire:
-
300-1500mm
-
3M self-adhesive:
-
with or w/o
-
thermocouple:
-
K/J
-
thermistor:
-
NTC/PT100/PT1000
Quick Details
-
Type:
-
Band Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V-480V
-
Place of Origin:
-
Jiangsu, China
-
Thickness:
-
1.5mm -3mm
-
Operation temperature::
-
250 ℃
-
Heating element:
-
Ni-Cr or FeCrAl
-
Shape:
-
customized
-
thermostat:
-
with or w/o
-
Lead wire:
-
300-1500mm
-
3M self-adhesive:
-
with or w/o
-
thermocouple:
-
K/J
-
thermistor:
-
NTC/PT100/PT1000

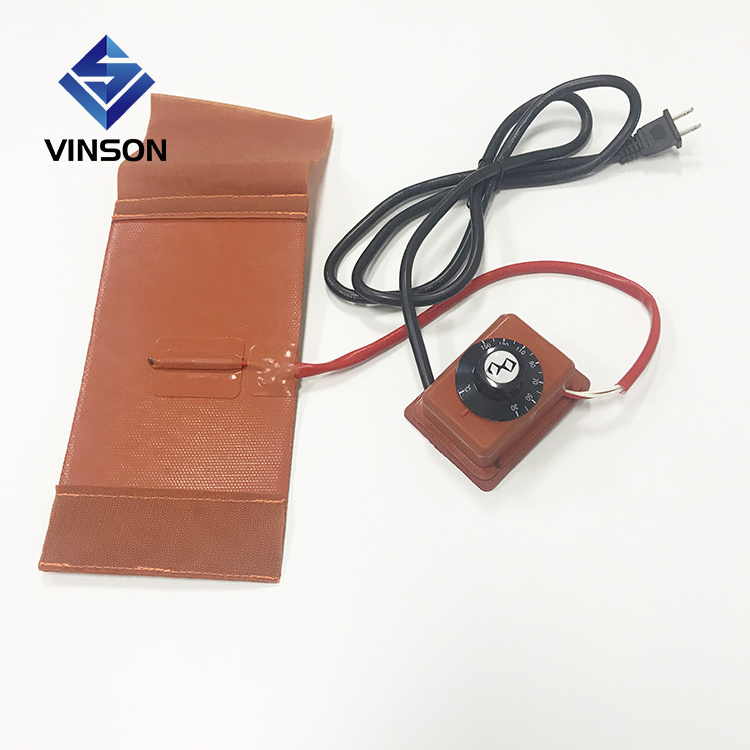

Heat Mat for Snowboard Press silicone rubber heater 240v 1600w lead wire with patch from middle side
Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact.With these heaters, heat can be placed where it is needed. In the application process these heaters improve heat transfer, speed warm ups and decrease wattage requirements. Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.
Advantages of silicone rubber heater:
•Excellent Dielectric Properties
•Superior Heat Transfer
•Uniform Heat Output
Specifications:
• Sizes: up to 36" wide (consult factory)
• Standard Thickness: 0.030", 0.043", 0.056''
• Maximum Operating Temperature: 400°F (204°C) intermittent
• Minimum Operating Temperature: -60°F (-50°C)
• Maximum Watt Density: 60 watts/in²
• Maximum Voltage: 600 volts
• Wattage Tolerance: standard +5% -10%
Mounting Methods:
• Silicone contact cement kit
• Field applied adhesive
• Mechanical fasteners
• Factory bonding
