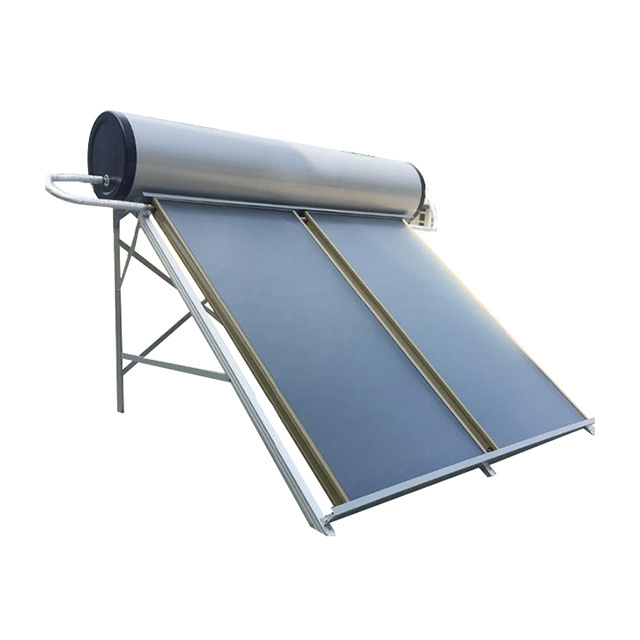

Solar Energy Kit Solar Geysers Rooftop Solar Water Heater

A). The solar collector can connect to the pressured water tank and it can be installed on the flat with stand or mounting on the sloping roof without support stand
B). The heat pipe vacuum tube absorbs the heat energy from sunlight, because there is a closed-loop between water tank and solar collector, so the heat can transfer to water tank from the solar collector
C). The conduct medium is Glycol and water mixture, it can endure the very low temperature and anti freeze, meanwhile it can exchange heat energy with cold water in the water tank
D). With help of the controller system, it can balance the temperature of the water tank and the solar collector. When the temperature difference is higher than preset value, the controller system will start the circulation pump and the heat energy can be transferred between the water tank and solar collector
E). The controller can also control the electrical heater booster; The temperature can be preset with digital adjustor. When the T of the water in the water tank is higher than the preset value.
F). The water tank has a very long insulation period, so the temperature of the hot water can be protected for 72hours

1. Water tank specification:
A). Inner tank: SUS304-2B material, 100-150L, 1.2mm thickness, 200-500L 1.5mm thickness
B. Insulation: 50mm polyurethane foam
C). Outer tank: 0.5mm thickness galvanized steel material
D). P/T relief valve, electrical heater element with terminator
E). Heat exchanger: 20m, 12mm diameter, 1mm thickness copper pipe

2. Solar collector specification:
A). Frame: 2.75mm Aluminum alloy, 1.5mm thickness galvanized steel support
B). 1mm thickness copper manifold
C). Insulation: 20&25mm thickness silicate aluminum and 35mm thickness polyurethane foam
D). 1.7m long copper heat pipe, 8mm diameter, 0.6mm thickness
E). Nylon tube shoe and tube stopper, silicon gel ring
F). 58mm diameter and 1800mm long, trivalent element evacuated tubes

3. Working station specification:
A). Expansion tank: 5L volume, -10~90C operation temperature, 1Mpa maximum operation pressure
B). Circulation pump: WILO RS15/6, three phases, 220V/50Hz
C). Probe: Pressure Temperature Probe
D). Temperature sensor: Three temperature sensor Electromagnetism valve
E). Digital display: Temperature adjustor Timing water supply

we produce different models for different market demands

nearly all haining pressurized tank supplied by us

OEM solar water heater
