A lighting tower is composed of a vehicle body assembly, a car body pole, and one or more lamps. Lighting vehicles generally use metal halide lamps as light sources. The advantages of metal halide lamps are that they emit light through the action of air discharge inside the luminous tube with long service life.
- Product Details
- {{item.text}}
Quick Details
-
IP Rating:
-
IP 65
-
Beam Angle(°):
-
360
-
CRI (Ra>):
-
N/A
-
Lamp Luminous Flux(lm):
-
72000-440000 lm
-
Working Lifetime(Hour):
-
50000 Hours
-
Working Temperature(℃):
-
-40~50
-
Color Rendering Index(Ra):
-
>5000
-
Product name:
-
Diesel Lighting Tower
-
Engine:
-
Gasoline, Diesel
-
Voltage:
-
AC100~240V
-
Lamps:
-
Metal Halogen Lamp
-
Usage:
-
Emergency Rescue
-
Maximum lifting height:
-
7m/ 9m
-
Luminous flux:
-
440000LM
-
Max. against wind:
-
20m/s (45 Mph)
-
size:
-
1585x1740x9000mm
-
weight:
-
114kg
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
E.P
-
Model Number:
-
MYT400A
-
IP Rating:
-
IP 65
-
Beam Angle(°):
-
360
-
CRI (Ra>):
-
N/A
-
Lamp Luminous Flux(lm):
-
72000-440000 lm
-
Working Lifetime(Hour):
-
50000 Hours
-
Working Temperature(℃):
-
-40~50
-
Color Rendering Index(Ra):
-
>5000
-
Product name:
-
Diesel Lighting Tower
-
Engine:
-
Gasoline, Diesel
-
Voltage:
-
AC100~240V
-
Lamps:
-
Metal Halogen Lamp
-
Usage:
-
Emergency Rescue
-
Maximum lifting height:
-
7m/ 9m
-
Luminous flux:
-
440000LM
-
Max. against wind:
-
20m/s (45 Mph)
-
size:
-
1585x1740x9000mm
-
weight:
-
114kg
Products Description

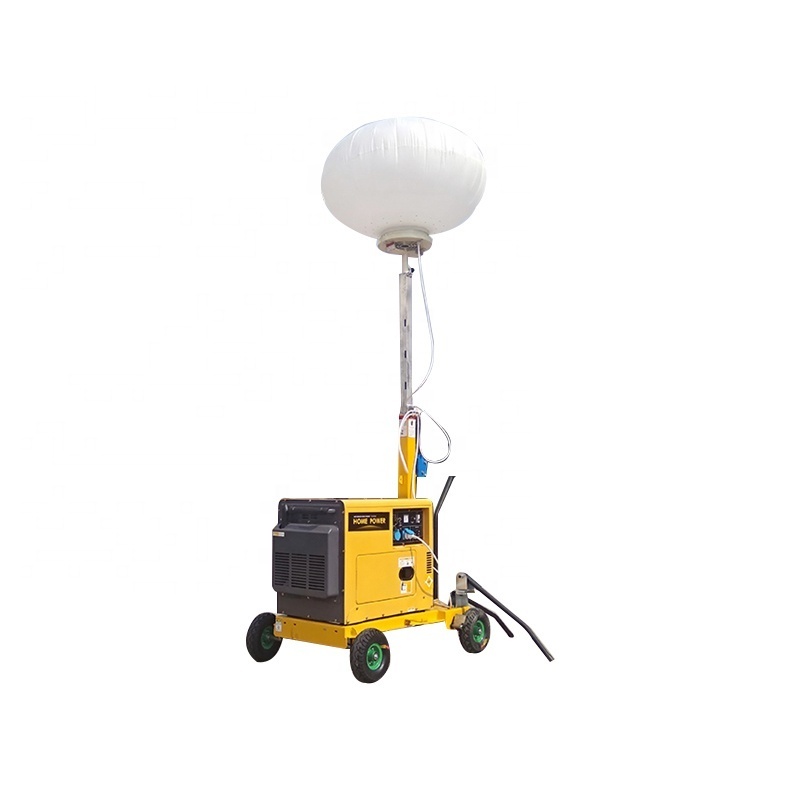

Brief Introduction of Movable Lighting Tower
Lighting towers are used to provide on-site mobile lighting for field operations, emergency rescue, accident repairs, abnormal situation handling, etc. at night when no other lighting sources.
Specifications
|
Technical Specifications
|
|
|
|
|
||||
|
Model
|
MYT400A
|
MYT400B
|
MYT1000A
|
MYT1000B
|
||||
|
Generator Units
|
EC2500CX
|
KGE2500X/E
|
EC4000CX
|
KDE6500T
|
||||
|
Engine Brand
|
HONDA
|
KIPOR
|
HONDA
|
KIPOR
|
||||
|
Engine Model
|
GX160K1
|
KG200GE
|
GX270H1
|
KM186FAGET
|
||||
|
Engine Type
|
Air Cooled Gasoline
|
Air Cooled
Diesel
|
Air Cooled
Gasoline
|
Air Cooled
Diesel
|
||||
|
Frequency
|
50 Hz
|
50/60 Hz
|
50 Hz
|
50/60 Hz
|
||||
|
Rated Voltage
|
220 V
|
230/240 V
|
220 V
|
230/240 V
|
||||
|
Max. Power
|
2.2 KVA
|
|
3.6 KVA
|
5 KVA
|
||||
|
Rated Power
|
2 KVA
|
|
3.2 KVA
|
4.5 KVA
|
||||
|
Working Hours
|
12 Hours
|
7 Hours
|
11.9 Hours
|
7 Hours
|
||||
|
Fuel Tank Volume
|
15 L
|
13.5 L
|
24 L
|
15 L
|
||||
|
Lights Power & Qty
|
2x400 W
|
|
2x1000 W
|
|
||||
|
Luminous Flux
|
72,000 lm
|
|
220,000 lm
|
|
||||
|
Headlights
|
Metal Halogen Lamp
|
|
|
|
||||
|
Lightstand Height
|
1700-4800 MM
|
|
|
|
||||
|
Lightstand Operation
|
Manual Lift
|
|
|
|
||||
|
Wind Resistance
|
<6
|
|
|
|
||||
|
Size
|
1585x1740 MM
|
|
|
1710x1740
|
||||
|
Weight
(Exclude Generator)
|
112 KG
|
|
114 KG
|
116 KG
|
||||
Product Advantages
Mechanical Structure
Details
Application Field
