Quick Details
-
Brand Name:
-
TaiXiong
-
Model Number:
-
Neodymium Pot Magnets
-
Product Name:
-
Strong Pull Force Neodymium Cup Pot Magnet
-
Material:
-
Neodymium,Iron Boron and Other
-
Size:
-
Customized Magnet Size
-
Color:
-
golden,silver,black, blue,blue-white
-
Coating:
-
Ni-Cu-Ni
-
Magnet shape:
-
Pot Magnet
-
Magnetism direction:
-
Customzied Specific Requirements
-
Certification:
-
ISO9001,ISO/TS16949,ROHS
Quick Details
-
Tolerance:
-
±1%
-
Grade:
-
neodymium magnet, NdFeB
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TaiXiong
-
Model Number:
-
Neodymium Pot Magnets
-
Product Name:
-
Strong Pull Force Neodymium Cup Pot Magnet
-
Material:
-
Neodymium,Iron Boron and Other
-
Size:
-
Customized Magnet Size
-
Color:
-
golden,silver,black, blue,blue-white
-
Coating:
-
Ni-Cu-Ni
-
Magnet shape:
-
Pot Magnet
-
Magnetism direction:
-
Customzied Specific Requirements
-
Certification:
-
ISO9001,ISO/TS16949,ROHS
Product Description
Super Strong N52 Customized Ndfeb Cup Shape Pot Magnet
Pot magnets have only one active magnetic surface, while other faces are non-magnetic or magnetically very weak. This way the magnetic field influence is limited and using pot magnets it is possible to avoid magnetizing surrounding objects (except the types with SmCo and NdFeB magnetic core in brass housing). Flat pot magnets are manufactured with ferrite (ceramic) or rare-earth (NdFeB or SmCo) magnets. Cylindrical pot magnets can made with AlNiCo, SmCo or NdFeB magnetic core.
Flat Pot Magnet W/ Counterbore (Countersunk hole), NdFeB
*Size could be customized
*Three layer structure - Iron shell,epoxy resin fixation,magnet with countersunk hole
*Three layer structure - Iron shell,epoxy resin fixation,magnet with countersunk hole
*
Plating optional from Zinc, Nickel, Epoxy and C
hromium
*Magnetic filed direction can be in attraction or rejection.
*
Countersunk hole make it easy assembly with screws, widely using.
|
Item Code
|
D mm
|
D1 mm
|
D2 mm
|
H mm
|
Force * N
|
Weight g
|
Temperature ℃
|
|
PMYP-A10
|
10
|
3.5
|
6
|
4.5
|
15
|
3
|
80
|
|
PMYP-A12
|
12
|
3.5
|
6
|
5
|
30
|
4
|
80
|
|
PMYP-A16
|
16
|
3.5
|
6
|
5
|
50
|
5.5
|
80
|
|
PMYP-A20
|
20
|
4.5
|
8.3
|
7
|
90
|
12
|
80
|
|
PMYP-A25
|
25
|
5.5
|
10
|
8
|
170
|
21
|
80
|
|
PMYP-A32
|
32
|
5.5
|
10
|
8
|
340
|
37
|
80
|
|
PMYP-A36
|
36
|
5.5
|
10
|
8
|
400
|
45
|
80
|
|
PMYP-A42
|
42
|
6.3
|
12
|
9
|
660
|
72
|
80
|
|
PMYP-A48
|
48
|
8.3
|
17
|
11.5
|
800
|
125
|
80
|
|
PMYP-A60
|
60
|
8.3
|
17
|
15
|
1120
|
250
|
80
|
|
PMYP-A75
|
75
|
10.3
|
18
|
18
|
1700
|
465
|
80
|
|
PMYP-A90
|
90
|
10.5
|
19
|
18
|
3000
|
1150
|
80
|
|
PMYP-A120
|
120
|
14.2
|
22.5
|
20
|
4000
|
1710
|
80
|
|
PMYP-A136
|
136
|
18
|
28
|
20
|
6000
|
2330
|
80
|

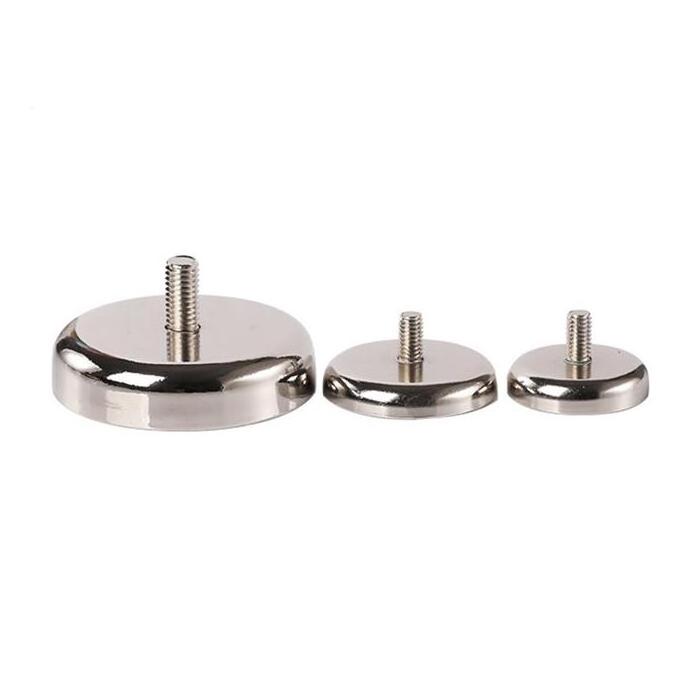

Flat pot magnets with external thread , NdFeB
*Size could be customized
*Three layer structure with external thread - Iron shell,epoxy resin fixation,magnet core
*Plating optional from Zinc, Nickel, Epoxy and Chromium
*Good performance as ground device
*Three layer structure with external thread - Iron shell,epoxy resin fixation,magnet core
*Plating optional from Zinc, Nickel, Epoxy and Chromium
*Good performance as ground device
|
Item Code
|
D mm
|
M mm
|
H mm
|
h mm
|
Force * N
|
Weight g
|
Temperature ℃
|
|
PMYP-C6
|
6
|
3
|
11
|
4.5
|
10
|
1.2
|
80
|
|
PMYP-C8
|
8
|
3
|
11
|
4.5
|
15
|
2.1
|
80
|
|
PMYP-C10
|
10
|
4
|
12
|
4.5
|
20
|
2.8
|
80
|
|
PMYP-C12
|
12
|
5
|
12
|
4.5
|
30
|
4.5
|
80
|
|
PMYP-C16
|
16
|
4
|
14.5
|
5
|
60
|
7
|
80
|
|
PMYP-C20
|
20
|
4
|
17
|
7
|
100
|
14
|
80
|
|
PMYP-C25
|
25
|
5
|
17
|
8
|
220
|
25
|
80
|
|
PMYP-C32
|
32
|
6
|
18
|
8
|
340
|
40
|
80
|
|
PMYP-C36
|
36
|
8
|
22
|
8
|
420
|
50
|
80
|
|
PMYP-C42
|
42
|
8
|
23
|
9
|
680
|
80
|
80
|
|
PMYP-C48
|
48
|
8
|
24
|
11.5
|
800
|
140
|
80
|
|
PMYP-C60
|
60
|
10
|
30
|
15
|
1120
|
260
|
80
|
|
PMYP-C75
|
75
|
10
|
32
|
18
|
1720
|
475
|
80
|
Flat pot magnets with screwed bush , NdFeB
*Size could be customized
*Three layer structure with internal thread bush - Iron shell,epoxy resin fixation,magnet core
*Plating optional from Zinc, Nickel, Epoxy and Chromium
*Widely using for holding and supporting
*Three layer structure with internal thread bush - Iron shell,epoxy resin fixation,magnet core
*Plating optional from Zinc, Nickel, Epoxy and Chromium
*Widely using for holding and supporting
|
Item Code
|
D mm
|
D1 mm
|
M mm
|
H mm
|
h mm
|
Force * N
|
Weight g
|
Temperature ℃
|
|
PMYP-C16
|
16
|
6
|
4
|
12.5
|
5
|
60
|
6.6
|
80
|
|
PMYP-C20
|
20
|
8
|
4
|
15
|
7
|
120
|
15.5
|
80
|
|
PMYP-C25
|
25
|
8
|
4
|
15
|
8
|
210
|
25.4
|
80
|
|
PMYP-C32
|
32
|
10
|
6
|
18
|
8
|
340
|
42
|
80
|
|
PMYP-C36
|
36
|
10
|
6
|
18
|
8
|
420
|
52
|
80
|
|
PMYP-C42
|
42
|
10
|
6
|
20
|
9
|
660
|
78
|
80
|
|
PMYP-C48
|
48
|
12
|
8
|
23
|
11.5
|
820
|
140
|
80
|
|
PMYP-C60
|
60
|
14
|
8
|
30
|
15
|
1120
|
260
|
80
|
|
PMYP-C75
|
75
|
14
|
10
|
32
|
18
|
1630
|
475
|
80
|
Flat pot magnets of hard ferrite with cylinder bore
*Series of size for option, for big order quantity the size can be customized
*High working temperature
*Zinc coating(galvanized)
*Economical cost
*Widely using
*Zinc coating(galvanized)
*Economical cost
*Widely using
|
Item Code
|
D mm
|
H mm
|
d mm
|
Force * N
|
Weight g
|
Temperature ℃
|
|
PMYP-E24
|
24
|
4.9
|
3.2
|
30
|
10
|
200
|
|
PMYP-E32
|
32
|
6
|
6
|
60
|
21
|
200
|
|
PMYP-E45
|
45
|
10.3
|
4.5
|
100
|
66
|
200
|
|
PMYP-E50
|
50
|
10.5
|
8.5
|
180
|
86
|
200
|
|
PMYP-E60.2
|
60.2
|
9
|
8
|
220
|
145
|
200
|
|
PMYP-E63
|
63
|
14
|
6.5
|
290
|
197
|
200
|
|
PMYP-E67
|
67
|
10.8
|
10.16
|
290
|
201
|
200
|
Flat pot magnets of hard ferrite
*Series of size for option, for big order quantity the size can be customized
*High working temperature
*Zinc coating(galvanized)
*Economical cost
*High performance magnetic holder
*Zinc coating(galvanized)
*Economical cost
*High performance magnetic holder
|
Item Code
|
D mm
|
H mm
|
Force * N
|
Weight g
|
Temperature ℃
|
|
PMYP-F10
|
10
|
4.5
|
3
|
2
|
200
|
|
PMYP-F13
|
13
|
4.5
|
10
|
3
|
200
|
|
PMYP-F16
|
16
|
4.5
|
18
|
5
|
200
|
|
PMYP-F17
|
17
|
5
|
24
|
6
|
200
|
|
PMYP-F20
|
20
|
6
|
30
|
10
|
200
|
|
PMYP-F22
|
22
|
4
|
34
|
8
|
200
|
|
PMYP-F23
|
22.8
|
5.2
|
35
|
11
|
200
|
|
PMYP-F25
|
25
|
7
|
40
|
18
|
200
|
|
PMYP-F32
|
32
|
7
|
80
|
29
|
200
|
|
PMYP-F36
|
36
|
7.7
|
100
|
39
|
200
|
|
PMYP-F40
|
40
|
8
|
125
|
55
|
200
|
|
PMYP-F47
|
47
|
9
|
180
|
84
|
200
|
|
PMYP-F50
|
50
|
10
|
220
|
102
|
200
|
|
PMYP-F57
|
57
|
10.5
|
280
|
141
|
200
|
|
PMYP-F63
|
63
|
14
|
350
|
226
|
200
|
|
PMYP-F80
|
80
|
18
|
600
|
468
|
200
|
|
PMYP-F100
|
100
|
22
|
900
|
915
|
200
|
|
PMYP-F125
|
125
|
26
|
1300
|
1680
|
200
|
Coating
1.Neodymium magnets are a composition of mostly Neodymium, Iron and Boron. If left exposed to the elements, the iron in the magnet will rust.
2.That's why all neodymium magnets in our shop are covered with a protective coating, which is so thin that it doesn't have any impact on the adhesive force of the magnet.
3.There are many different coating and plating options for neodymium magnets. The most common coating for neodymium magnets is a nickel plating. While commonly referred to as simply “nickel plating,” this nickel option is actually a three layer plating that comprises of a nickel layer, a copper layer, and a nickel coating. Some other options for coating are zinc, tin, copper, epoxy,silver and gold.
Application
Our Advantage
Products Processing
Production flow of neodymium magnets
We have rich experienced staffs at every production stages, advanced product quality planning and statistical process control system are applied to monitor and control product and process conditions at the key stages of manufacturing processes. Strictly carry out the quality standards on manufacture and management, provide sincerity service for customers.
Packing & Delivery
Inner box + high quality styrofoam+ carton or according to customer's request. Packages for sea or air shipping are both available for N35~ N52 super strong magnet to delivery. If there are other conditions, please tell us in advance.
About Us
Shanghai Taixiong is a specialized supplier and manufacturer of permanent magnets and magnetic assemblies, magnetic motors, etc. Our products include NdFeB magnet, rubber magnet, SmCo magnet, alnico magnet, ferrite magnet, educational magnet, magnetic separator, pot magnet,magnetic lifter, lifting magnet, magnetic badge holder. With over 10 years' history, our factory has established and implemented a quality management system in conformity with ISO9001:2008 standard. All magnet materials and coatings meet the standards of SGS and RoHS. Our factory has passed ISO9000 and TS16949 certificates. Our factory makes high quality magnet to meet our customers' different requirements. Our products sell well in over 50 countries and regions all over the world such as America, the EU, the Middle East, Hong Kong, etc. Our factory has adopted the most advanced technology (thin strip alloy and hydrogen decrepitation).
FAQ
Q1. Can I have a sample order for Neodymium magnet?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10days for order quantity more than
Q3. Do you have any MOQ limit for neodymium magnet order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for neodymium magnet?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on magnet product or package?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you test all your goods before delivery
A: we have 100% test before delivery
