Quick Details
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chzone
-
Year:
-
2020
-
Voltage:
-
220/380/415
-
Dimension(L*W*H):
-
3000*4000*4500
-
Weight (T):
-
50 T
-
Model Number:
-
Y32-2500T
-
Motor Power (kw):
-
22 kw
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Machine Type:
-
Four-column Two-beam Hydraulic Press
-
Slide Stroke (mm):
-
1000
-
Ejector Force (kN):
-
1000
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chzone
-
Year:
-
2020
-
Voltage:
-
220/380/415
-
Dimension(L*W*H):
-
3000*4000*4500
-
Weight (T):
-
50 T
-
Model Number:
-
Y32-2500T
-
Motor Power (kw):
-
22 kw
-
After-sales Service Provided:
-
Field installation, commissioning and training

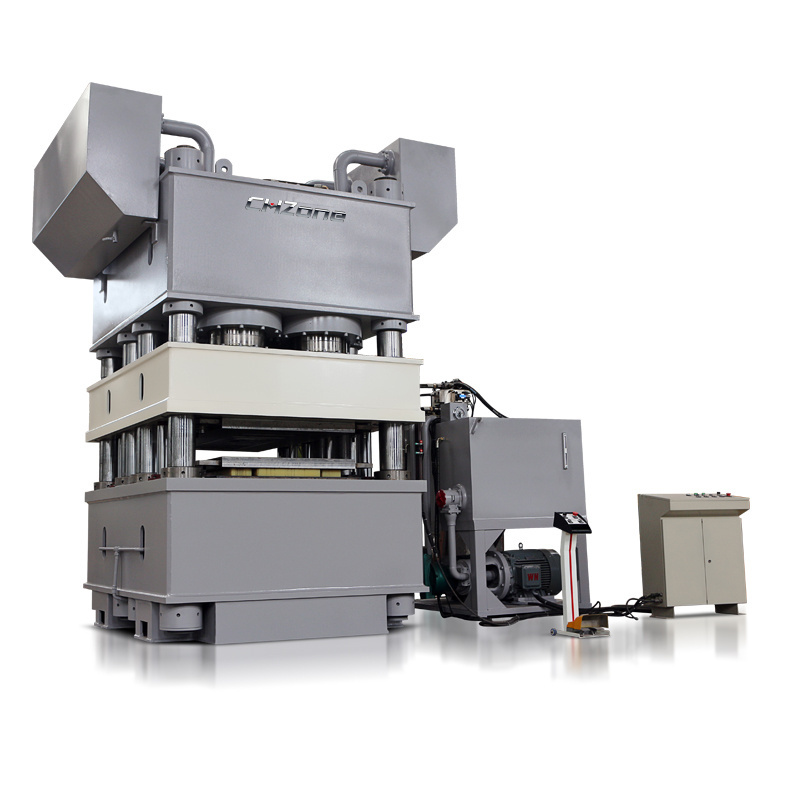

Y32-2500T Door Plate Hydraulic Press Machine
Product Description
Main features:
This series of hydraulic press adopts PLC electrical control systems, has automatic adjustment, manual and semi-automatic three modes of operation, constant pressure and constant stroke two processes crafts. When constant pressure model, there is pressure-keep and automatic return action, in the middle of the table is equipped with ejector device, in addition to eject the product,can also be used as a hydraulic cushion parts used to stretch craft, pressure and stroke is adjustable according to process requirements.
This series of hydraulic presses with a wide range of versatility, suitable for various kinds of metal materials tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin, thermosetting products forming and press-formed in the insulating material of the plastic products.
This series of hydraulic press adopts PLC electrical control systems, has automatic adjustment, manual and semi-automatic three modes of operation, constant pressure and constant stroke two processes crafts. When constant pressure model, there is pressure-keep and automatic return action, in the middle of the table is equipped with ejector device, in addition to eject the product,can also be used as a hydraulic cushion parts used to stretch craft, pressure and stroke is adjustable according to process requirements.
This series of hydraulic presses with a wide range of versatility, suitable for various kinds of metal materials tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin, thermosetting products forming and press-formed in the insulating material of the plastic products.
Main Parameters
|
Item
|
Unit
|
2000T
|
2500T
|
3000T
|
3600T
|
4500T
|
|
Nominal Force
|
KN
|
20000
|
25000
|
30000
|
36000
|
45000
|
|
Return Force
|
KN
|
425
|
425
|
435
|
435
|
435
|
|
Max.Pressure of Cylinder
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
|
Ram Stroke
|
mm
|
500
|
500
|
500
|
500
|
500
|
|
Max. Opening Height
|
mm
|
600
|
600
|
600
|
600
|
600
|
|
Stroke Speed
|
mm/s
|
100-120
|
100-120
|
100-120
|
100-120
|
100-120
|
|
worktable dimension
|
mm
|
1480*2500
|
1500*2500
|
1500*2500
|
1600*2600
|
2000*3000
|
|
Motor Power
|
KW
|
44
|
52
|
60
|
90
|
100
|
Detailed Images
Spare Parts
Polished Cylinder
Siemens Main Motor
Schneider Electrics
Hydraulic Plunger Pump
Hydraulic System
Foot Pedal Control
Control Button
Control Center
Die set
Related Products
Packing&Shipping
Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
