Quick Details
-
Gross Vehicle Weight:
-
7000
-
Place of Origin:
-
Hubei, China
-
Warranty:
-
1 Year
-
Chassis brand:
-
dongfeng chaochai engine 95hp
-
Color:
-
Customer's Require
-
Name:
-
lpg filling dispenser truck
-
Product name:
-
propane tanker delivery truck
-
Certification:
-
ISO9001 CCC
-
Transmission:
-
5 forwards 1 reverse
-
Chassis Optional:
-
foton , etc
-
Horse power:
-
95-115hp
-
Tank material:
-
high quality carbon steel
Quick Details
-
Condition:
-
New
-
Drive Wheel:
-
4X2
-
Brand Name:
-
Chengliwei
-
Gross Vehicle Weight:
-
7000
-
Place of Origin:
-
Hubei, China
-
Warranty:
-
1 Year
-
Chassis brand:
-
dongfeng chaochai engine 95hp
-
Color:
-
Customer's Require
-
Name:
-
lpg filling dispenser truck
-
Product name:
-
propane tanker delivery truck
-
Certification:
-
ISO9001 CCC
-
Transmission:
-
5 forwards 1 reverse
-
Chassis Optional:
-
foton , etc
-
Horse power:
-
95-115hp
-
Tank material:
-
high quality carbon steel

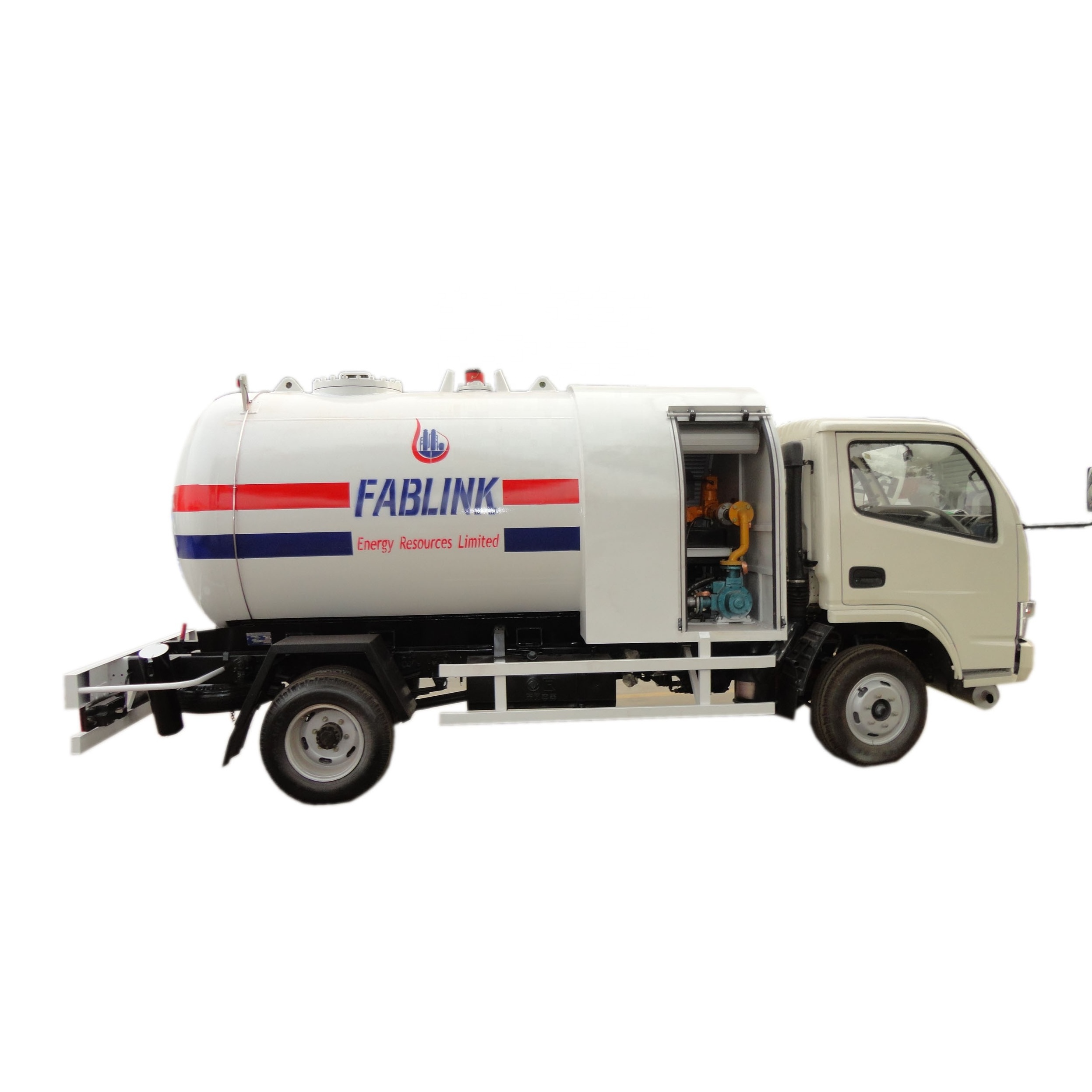

Cheap price 5m3 lpg plant filling scale dispenser road tanker propane mobile gas refueling trucks for sale
|
LPG FILLING TRUCK |
||
|
# |
Descriptions |
Specifications and types |
|
General |
Truck Brand |
Chengliwei (our brand) |
|
|
Chassis Brand |
Dongfeng |
|
|
Approx. Dimension |
5995 *2 50 0* 2300 mm |
|
|
GVW./Kerb Wt. |
5790 / 2860 kg |
|
Cab |
Cab Capacity |
2 persons' seat |
|
|
Air Conditioner |
Air Conditioner is optional |
|
Chassis |
Drive Type |
4 X 2 , left hand drive or right hand drive |
|
|
Fuel Type |
Diesel |
|
|
Engine Make & Model |
Chaochai engine |
|
|
Power |
95HP |
|
|
Displacement |
2771 ml |
|
|
Emission Standard |
Euro II or EURO III or Euro IV |
|
|
Brake |
Air Brake |
|
|
Wheelbase/No.of axle |
3300 mm / 2 |
|
|
Tyre Specfication |
7.00R16 |
|
|
Tyre Number |
6 tyres and 1 spare tyre |
|
|
Max Speed |
9 0 km/h |
|
|
Paint |
Automative metallic paint |
|
Tanker |
medium in tanker |
Propane |
|
|
Medium density |
0.42 ton/cubic meter |
|
|
Tanker capacity |
5.5 CBM |
|
|
Tank material: |
Q345R or Q370R |
|
|
Design pressure |
1.61mpa |
|
Pump |
Pump mode |
YQB-5 |
|
|
Operating differential pressure |
Less than 0.5 mpa |
|
|
Pump flow rate |
15.5 m3/h |
|
|
Inlet pressure |
Less than 1.0 mpa |
|
|
Shaft power |
3.6 KW |
|
|
Number of revolutions |
780r/min |
|
Lpg dispenser |
mode |
BCS-150 |
|
|
Rated Power |
30w |
|
|
Max loading weight |
150 kg |
|
|
Mini loading weight |
1 kg |
|
Structure& Function |
Intake valve,Into liquid valve ,liquid vale ,90mm valve,equipped with manhole to see inside . |
|
Lpg tanker truck chassis partner :
