Efficient and small size earth picking rig /Handheld soil sampling drilling rig

Efficient and small size earth picking rig /Handheld soil sampling drilling rig

FOB Reference Price: Get Latest Price

≥1 Sets

US $1300

≥5 Sets

US $1290

≥10 Sets

US $1280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 45 KG

Marketing Type:: New Product

Drilling Depth:: Max.15m

Mobility:: handheld

Power:: 3.3HP

Ignition method:: Recoil pull cord

Fuel consumption:: 0.55L/H

Impact times:: 1650 times/min

Impact energy:: 35J~65J

Coring depth:: 10M~15M

Host weight:: 25KG

Product name:: Drilling Machine

Application:: Water Wells Rock Drill Rig

Feature:: Operate

Quick Details

Place of Origin:: Henan, China

Brand Name:: XingDian

Voltage:: 110V/220V/380V

Weight:: 45 KG

Marketing Type:: New Product

Drilling Depth:: Max.15m

Mobility:: handheld

Power:: 3.3HP

Ignition method:: Recoil pull cord

Fuel consumption:: 0.55L/H

Impact times:: 1650 times/min

Impact energy:: 35J~65J

Coring depth:: 10M~15M

Host weight:: 25KG

Product name:: Drilling Machine

Application:: Water Wells Rock Drill Rig

Feature:: Operate

Product Overview

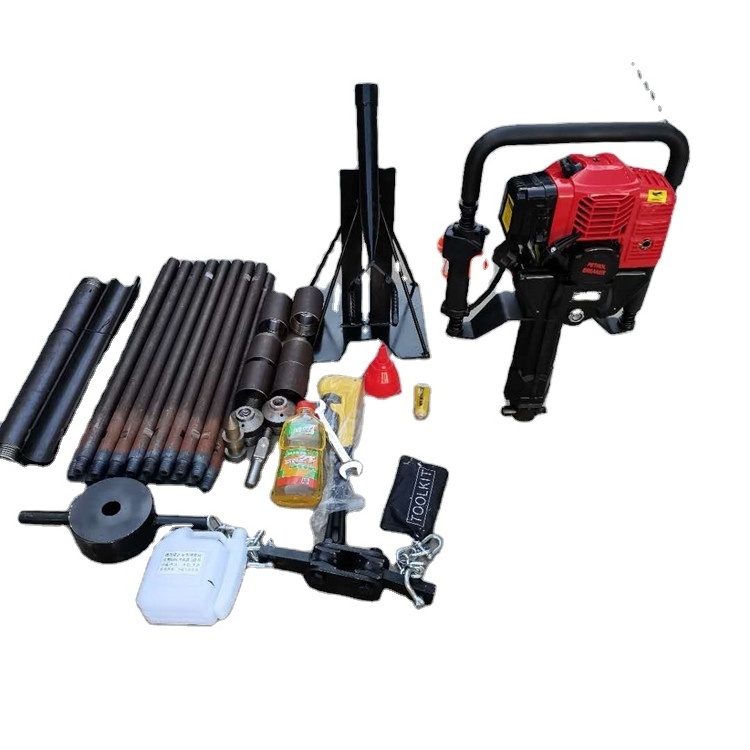

Handheld soil sampling drilling machine

one-person hand-held powered (gasoline) lightweight soil sampling rig (soil sampler), which is comparable to bulky hydraulic and pneumatic soil sampling rigs.

FEATURES AT A GLANCE

⭐ The drilling rig adopts gasoline to strengthen the power, the impact force is stronger, and it hits deeper.
⭐ The depth is adjustable, and the diameter and length of the obtained samples are large, which can meet the needs of soil sampling projects with a depth of 10-15 meters.
⭐ Easy to operate, easy and simple operation, single person can achieve fast sampling.

PRODUCT SPECIFICATIONS

Power		3.3hp
Ignition method		Recoil pull cord
Fuel consumption		0.55L/H
Impact times	1750 times/min
Impact energy	35J~65J
Coring depth	10M~15M
Host weight	23KG

Application：

Geotechnical engineering survey, environmental soil survey, agricultural soil survey,coastal zone geological survey, wetland
environmental survey, groundwater survey, tailings pond survey, archaeological survey, soil structure description, etc.

Packing and shipping:

Company information:

Our services:

1) Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
