Quick Details
-
Jacket:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Henan Baofeng
-
Model Number:
-
Overhead Cable
-
Certification:
-
CE/ISO/ROSH/CCC/IECEE
-
Colour:
-
Black
-
Rated voltage:
-
0.6/1kV,10kV,11kV,30kV,35kV
-
Standard:
-
IEC, ASTM, IEC, BS, DIN, GB/T etc
-
Norminal cross section:
-
6mm2---240mm2 like 6mm2,10mm2,16mm2... 185mm2 240mm2
-
Operating temperature range:
-
75°c for PE or 90°c for XLPE insulated conductors
-
Number of cores:
-
Single core,duplex,triplex,quadruplex service drop
-
Class of Conductor:
-
Class 2
-
Product name:
-
0.6/1kV single core aluminum cable 25mm
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Overhead
-
Conductor Material:
-
Aluminum
-
Jacket:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Henan Baofeng
-
Model Number:
-
Overhead Cable
-
Certification:
-
CE/ISO/ROSH/CCC/IECEE
-
Colour:
-
Black
-
Rated voltage:
-
0.6/1kV,10kV,11kV,30kV,35kV
-
Standard:
-
IEC, ASTM, IEC, BS, DIN, GB/T etc
-
Norminal cross section:
-
6mm2---240mm2 like 6mm2,10mm2,16mm2... 185mm2 240mm2
-
Operating temperature range:
-
75°c for PE or 90°c for XLPE insulated conductors
-
Number of cores:
-
Single core,duplex,triplex,quadruplex service drop
-
Class of Conductor:
-
Class 2
-
Product name:
-
0.6/1kV single core aluminum cable 25mm

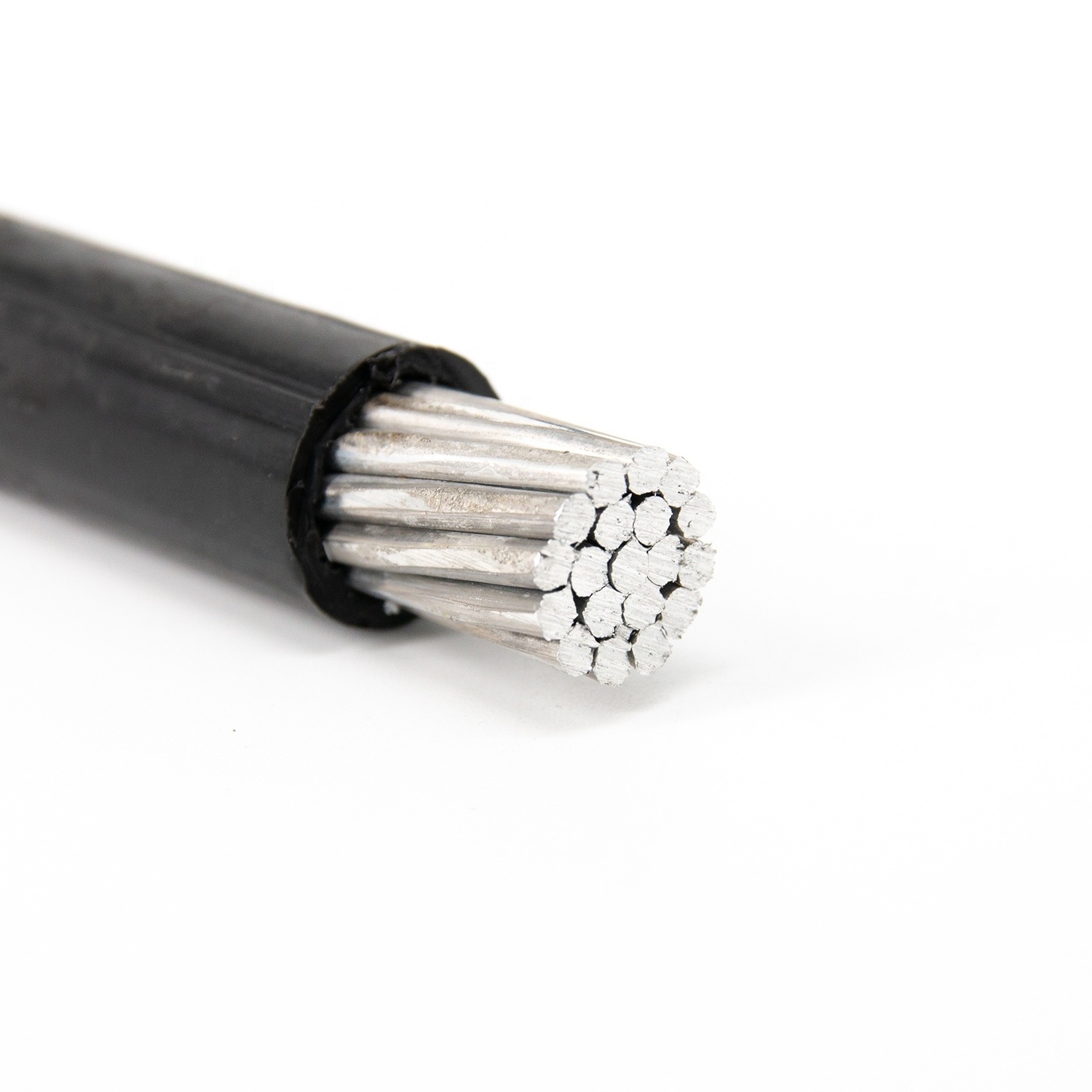

0.6/1kV single core aluminum cable 25mm
Standards :
ASTM B232 IEC BS DIN NFC 33-209 ISO9001-2008
Rated voltage
0.6/1kV 10kV 25kV 35kV
Nominal Cross-sectional Areas(sqmm)
10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2
Construction
Phase Conductor
Cables manufactured in bare aluminum, hard, class A stranding.
Insulation
Constituted by Thermoplastic(PE) or Thermoset(XLPE) polyethylene.
Neutral Conductor
The neutral conductor can be a bare aluminum cable(AAC) or an aluminum cable with steel core(ACSR).
Type & Descr i ption
|
ABC CABLE |
No. of core |
Cross-section mm 2 |
|
1, 2, 4, 4+2 1+k, 2+k, 3+k 1+k+16, 2+k+16, 3+k+16 |
10- 185 |
|
Code
Name |
Size AWG or MCM |
Strand |
Insulation
thickness (mls) |
Outside
diameter (inches) |
Rated
strength (lbs) |
Weight
Per 1000 ft(lbs) |
*Ampacity
(Amps) XLPE |
|
| XLPE | PE | |||||||
| AAC | ||||||||
| Apple | 6 | Solid | 30 | 0.222 | 445 | 33 | 32 | 105 |
| Pear | 4 | Solid | 30 | 0.264 | 675 | 48.5 | 47.3 | 135 |
| Apricot | 4 | 7/w | 30 | 0.285 | 790 | 51.5 | 50.8 | 140 |
| Peach | 2 | 7/w | 45 | 0.373 | 1220 | 87.1 | 84 | 180 |
| Quince | 1/0 | 7/w | 60 | 0.477 | 1790 | 140.7 | 135.6 | 240 |
| Orange | 2/0 | 7/w | 60 | 0.522 | 2260 | 171.9 | 166.2 | 280 |
| Fig | 3/0 | 7/w | 60 | 0.57 | 2740 | 210.5 | 204 | 320 |
| Olive | 4/0 | 7/w | 60 | 0.626 | 3450 | 258.7 | 251.4 | 370 |
| Pomegranate | 4/0 | 19/w | 60 | 0.632 | 3620 | 254.8 | 247.9 | 370 |
| Mulberry | 266.8 | 19/w | 60 | 0.692 | 4470 | 313.5 | 305.8 | 430 |
| Anona | 336.4 | 19/w | 60 | 0.766 | 5535 | 387.6 | 378.8 | 495 |
| Molles | 397.5 | 19/w | 75 | 0.852 | 6400 | 469.2 | 457.4 | 545 |
| Huckleberry | 477 | 37/w | 75 | 0.921 | 7820 | 550 | 537.5 | 610 |
| Paw Paw | 556.5 | 37/w | 75 | 0.982 | 8950 | 633 | 619.4 | 670 |
| Breadfruit | 636 | 61/w | 95 | 1.08 | 10510 | 742.6 | 724.7 | 720 |
| Persimmon | 795 | 61/w | 95 | 1.187 | 12900 | 910 | 890 | 825 |
| Grapefruit | 1033.5 | 61/w | 95 | 1.327 | 16500 | 1156.7 | 1133.8 | 970 |
|
Code
Name |
Size AWG or MCM |
Strand |
Insulation
thickness (mls) |
Outside
diameter (inches) |
Rated
strength (lbs) |
Weight
Per 1000 ft(lbs) |
*Ampacity
(Amps) XLPE |
|
| XLPE | PE | |||||||
| ACSR | ||||||||
| Walnut | 6 | 6/1 | 30 | 0.258 | 1131 | 49 | 47 | 105 |
| Butternut | 4 | 6/1 | 30 | 0.303 | 1170 | 71.8 | 70 | 135 |
| Hickory | 4 | 7/1 | 30 | 0.309 | 2240 | 81.6 | 79.8 | 135 |
| Pignut | 2 | 6/1 | 45 | 0.397 | 2710 | 118.1 | 114.8 | 180 |
| Beech | 2 | 7/1 | 45 | 0.405 | 3460 | 134.1 | 130.7 | 180 |
| Chestnut | 1 | 6/1 | 45 | 0.434 | 3370 | 145.5 | 141.8 | 210 |
| Almond | 1/0 | 6/1 | 60 | 0.506 | 4160 | 190.4 | 184.9 | 235 |
| Pecan | 2/0 | 6/1 | 60 | 0.554 | 5040 | 234.2 | 227.9 | 270 |
| Filbert | 3/0 | 6/1 | 60 | 0.607 | 6290 | 288.5 | 281.4 | 305 |
| Buckeye | 4/0 | 6/1 | 60 | 0.666 | 7930 | 356.5 | 348.5 | 345 |
| Hackberry | 266.8 | 18/1 | 60 | 0.711 | 6540 | 354.8 | 346.8 | 435 |
| ALLOY 6201-T81 | ||||||||
| Hornbeam | 4 | 7/w | 30 | 0.31 | 1480 | 62.1 | 60.1 | 145 |
| Linden | 2 | 7/w | 45 | 0.406 | 2520 | 96.1 | 93.3 | 190 |
| Oilnut | 1/0 | 7/w | 60 | 0.518 | 4010 | 166.1 | 160 | 250 |
| Waterash | 2/0 | 7/w | 60 | 0.567 | 4850 | 203.3 | 196.4 | 290 |
| Shellbark | 3/0 | 7/w | 60 | 0.622 | 6110 | 249.4 | 241.4 | 335 |
| Planetree | 4/0 | 7/w | 60 | 0.683 | 7700 | 307.3 | 298.1 | 385 |
We can use international wooden drum, steel wooden drum, steel drum or your requirement.
