Quick Details
-
Maximum Working Pressure:
-
R:52 bar, W:12 bar
-
Weight:
-
72 KG
-
Power:
-
47000
-
Working Temperature Range:
-
0~50℃
-
Key Selling Points:
-
/
-
Product Name:
-

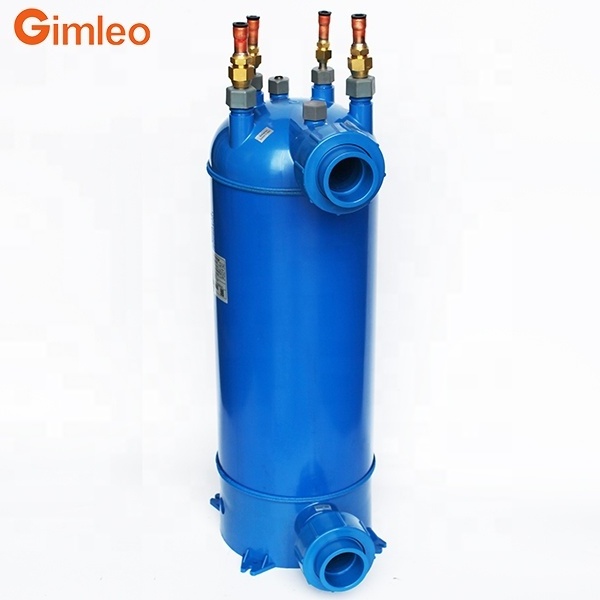

PVC Titanium Heat Exchanger (Heat or Cool mode)
-
Heat capacity:
-
47kw (160,000BTU/h)
-
Shell material:
-
PVC
-
Tube material:
-
Pure titanium seamless tube
-
Water Flow:
-
22.5m^3/h
-
Refrigerant inlet:
-
19.05mm
-
Refrigerant outlet:
-
12.7mm
-
Water connection:
-
2 inch
-
Certification:
-
RoHS
-
Used as:
-
Condenser or evaporator
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gimleo
-
Model Number:
-
MHTA-15
-
Maximum Working Pressure:
-
R:52 bar, W:12 bar
-
Weight:
-
72 KG
-
Power:
-
47000
-
Working Temperature Range:
-
0~50℃
-
Key Selling Points:
-
/
-
Product Name:
-
PVC Titanium Heat Exchanger (Heat or Cool mode)
-
Heat capacity:
-
47kw (160,000BTU/h)
-
Shell material:
-
PVC
-
Tube material:
-
Pure titanium seamless tube
-
Water Flow:
-
22.5m^3/h
-
Refrigerant inlet:
-
19.05mm
-
Refrigerant outlet:
-
12.7mm
-
Water connection:
-
2 inch
-
Certification:
-
RoHS
-
Used as:
-
Condenser or evaporator
Products Description
|
Product name
|
PVC Titanium Heat Exchanger (Heat or Cool mode)
|
|
Type
|
MHTA series
|
|
Model number
|
MHTA-15
|
|
Heating capacity
|
47kw
|
|
Water flow
|
22.5m^3/h
|
|
Use as
|
Condenser,Evaporator
|

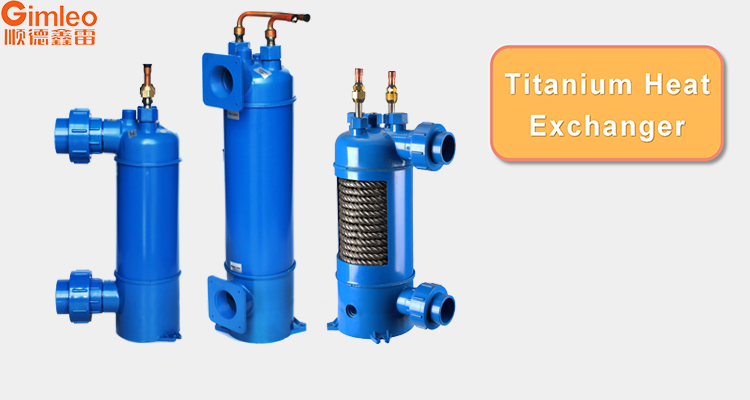

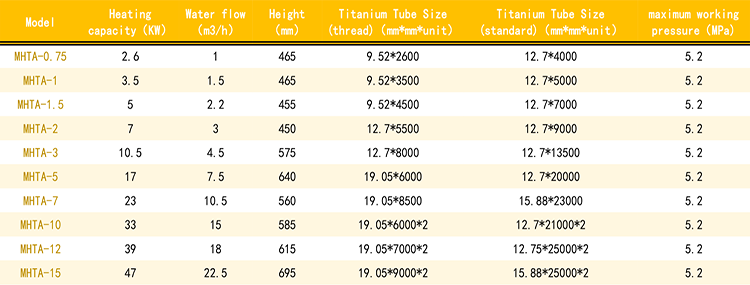

Series Products
Product Introduction :
Titanium has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat conductor, exhibits outstanding resistance to corrosion in a wide range of aggressive media.
Due to its good properties ,the titanium heat exchanger widely used in: Swimming pool equipment, Aquarium chiller, Marine refrigerant system, Solar energy heater, Aquaculture, Pharmacy, Food industry, Electroplating industry and some heat recovery from the waste water or exhaust gas.
Product Features :
• Self-patented technology.
• Seamless pure titanium tube has super strong corrosion proof ability and high intensity.
• Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure in water side can be 2.5 MPa. Titanium tube can stand 5.2MPa high pressure.
• Seamless pure titanium tube has super strong corrosion proof ability and high intensity.
• Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure in water side can be 2.5 MPa. Titanium tube can stand 5.2MPa high pressure.
•
Its loading capacity can pass the CE, UL, ETL requirement, 100,000 times alternating pressure test shows it can be used more than 20 years
Product material :

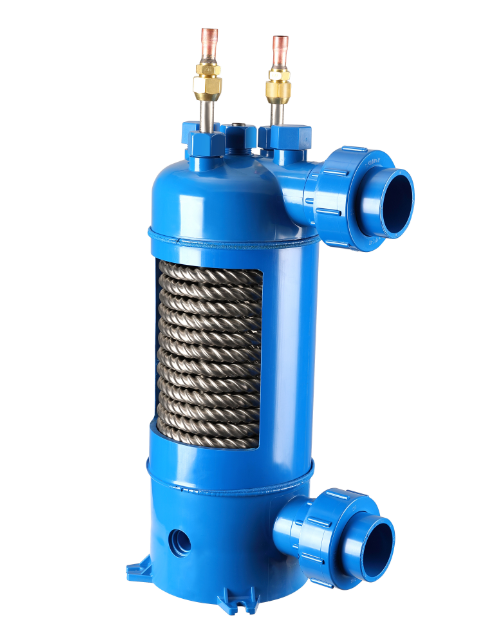

[ The heat transfer tube ]
:
Seamless pure titanium tube . Thickness 0.6 mm. The Grade is TA1
[
Shell
]
:
high quality PVC material . All the parts RoHS conformance.
