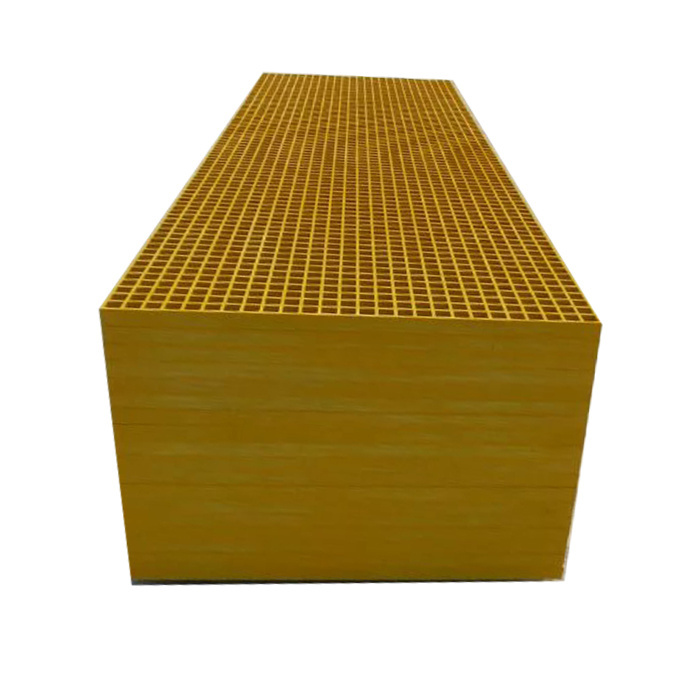

Plain Surface Glassfibre Reinforced Plastic Grids

Plain Surface Glassfibre Reinforced Plastic Grids

FOB Reference Price: Get Latest Price

≥100 Square meters

US $21

≥500 Square meters

US $19

≥1000 Square meters

US $16

≥10000 Square meters

US $8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Gebang

Model Number:: 38x38x38mm

Surface Treatment:: Concave, smooth, gritted

Keywords:: Plastic grids

Feature:: Abrasion, Acid-Resistant

Material:: Fibreglass Reinforced Plastic

Color:: Black\gray\white\yellow\red\green

Panel size:: 1220x3660mm

Delivery detail:: It's up to the quantity

Mesh size:: 38x38x38mm

Packing:: Wooden pallets

Thickness:: 25mm, 30mm, 38mm, 50mm

Resin:: Orthophthalic, Isophthalic, Vinyl ester

Quick Details

Application:: Electrical markets

Technique:: Molded

Place of Origin:: Hebei, China

Brand Name:: Gebang

Model Number:: 38x38x38mm

Surface Treatment:: Concave, smooth, gritted

Keywords:: Plastic grids

Feature:: Abrasion, Acid-Resistant

Material:: Fibreglass Reinforced Plastic

Color:: Black\gray\white\yellow\red\green

Panel size:: 1220x3660mm

Delivery detail:: It's up to the quantity

Mesh size:: 38x38x38mm

Packing:: Wooden pallets

Thickness:: 25mm, 30mm, 38mm, 50mm

Resin:: Orthophthalic, Isophthalic, Vinyl ester

Plain Surface Glassfibre Reinforced Plastic Grids

Product Description

Plastic Grids Introduction

Mold resin system for FRP grating products:

1) Type O (orthophthalic polyester resin):
a) These gratings can be used in seawater, weak acid, and other special environments
b) Operation temperature: 50 ~ 60oC

2) Type I (isophthalic polyester resin):
a) These gratings can be used in middle concentration inorganic
acids, inorganic alkalis, and other special environments
b) Operation temperature: 50 ~ 90oC

3) Type (vinyl ester resin):
a) These gratings can be used in corrosive environments, both acid
and alkali
b) Operation temperature: 50 ~ 110oC

4) Type P (phenolic aldehyde):
a) Has exceedingly good fire resistance, acid resistance and
dissolvent resistance
b) Oxygen index: 50
c) Low smoke levels, high temperature resistance

d) Long-term usage temperature: 180oC

Plastic Grids Standard Size

Thickness	Mesh size	Panel size	Open area	Weight
(MM)	(MM)	(MM)	%	(kg/m2)
25	38*38	1220*3660	68	12.5
		1220*4076
		1220*4000
30	38*38	1220*3660	68	14.75
		1220*4000
38	38*38	1007*4047	68	19.5
		1220*3660
		1220*4000
50.7	50.7*50.7	1220*3660	71	23.5
		1220*4000
30	19*19	1007*4007	40	18.1
38	19*19	1007*4007	40	23.5

Plastic Grids Surface Treatment

Common surface types:

Naturally concave surface.
Polished smooth surface.
Sanding surface.

Covered surface types:

Gritted top covered surface.
Pattern covered surface.

Plastic Grids Applications

Gebang FRP Grating is a candidate material where there are safety concerns due to the

presence of liquids and oils on the floor as well as corrosive environments where chemical resistance of the flooring material is important for long term durability.

Applications for Gebang FRP Grating include:

---Chemical & Petrochemical Plants

---Food & Beverage Plants

---Oil & Gas, Offshore Rig & Power Plants

---Water Treatment Plants & Water Pools

---Ramp, Scaffold, Railway Footpath

---Operating Platforms & Trench Covers

---Walkways, Footbridges & Staircase

---Architecture & Construction Industry
