Quick Details
-
Voltage:
-
380V
-
Power:
-
45KW
-
Dimension(L*W*H):
-
2000*2200
-
Warranty:
-
1 YEAR
-
Weight:
-
4T
-
Certification:
-
TUV
-
machine:
-
vacuum coating machine
-
Working gas:
-
N2 Ar O2
-
Total power:
-
30KW 35KW 45KW 50KW
-
working methods::
-
plc semi-auto control or pc+plc auto control
-
automatic:
-
PLC and touch screen
-
Substrate::
-
plastic, ceramic, metal, steel,etc
-
Kinds of coating::
-
Tin, TiAIN, TiCN, TIBN, etc
-
Type::
-
Coating Production Line
-
Wechat:
-
wcx571469781
-
Phone/Whatsapp:
-
008615587375583
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LKBT
-
Model Number:
-
LKBT--100
-
Voltage:
-
380V
-
Power:
-
45KW
-
Dimension(L*W*H):
-
2000*2200
-
Warranty:
-
1 YEAR
-
Weight:
-
4T
-
Certification:
-
TUV
-
machine:
-
vacuum coating machine
-
Working gas:
-
N2 Ar O2
-
Total power:
-
30KW 35KW 45KW 50KW
-
working methods::
-
plc semi-auto control or pc+plc auto control
-
automatic:
-
PLC and touch screen
-
Substrate::
-
plastic, ceramic, metal, steel,etc
-
Kinds of coating::
-
Tin, TiAIN, TiCN, TIBN, etc
-
Type::
-
Coating Production Line
-
Wechat:
-
wcx571469781
-
Phone/Whatsapp:
-
008615587375583
Longkou Bite Vacuum Technology Co.,Ltd, founded in the year 1985, has become a
professional manufacturer
of vacuum equipments after more than twenty year's development. We have long-term relationship with Beijing Universities to develop and research new equipments and
technology of coating, injecting etc.
Our equipments are reasonably designed and touching automatically controlled which are widely
used in hardware, tools,
watches, plastic and sanitary wares etc. Equipments are sold all over the country as well as
exported t Hongkong, Taiwan,
Spain, Korea, Malaysia, Russia, etc. Our products are widely received trust and good remarks
from users.
Guided by the belife quality first and satisfied service based, we will develop new techniques and
equipments and also
we are looking forward to your visit and cooperation.

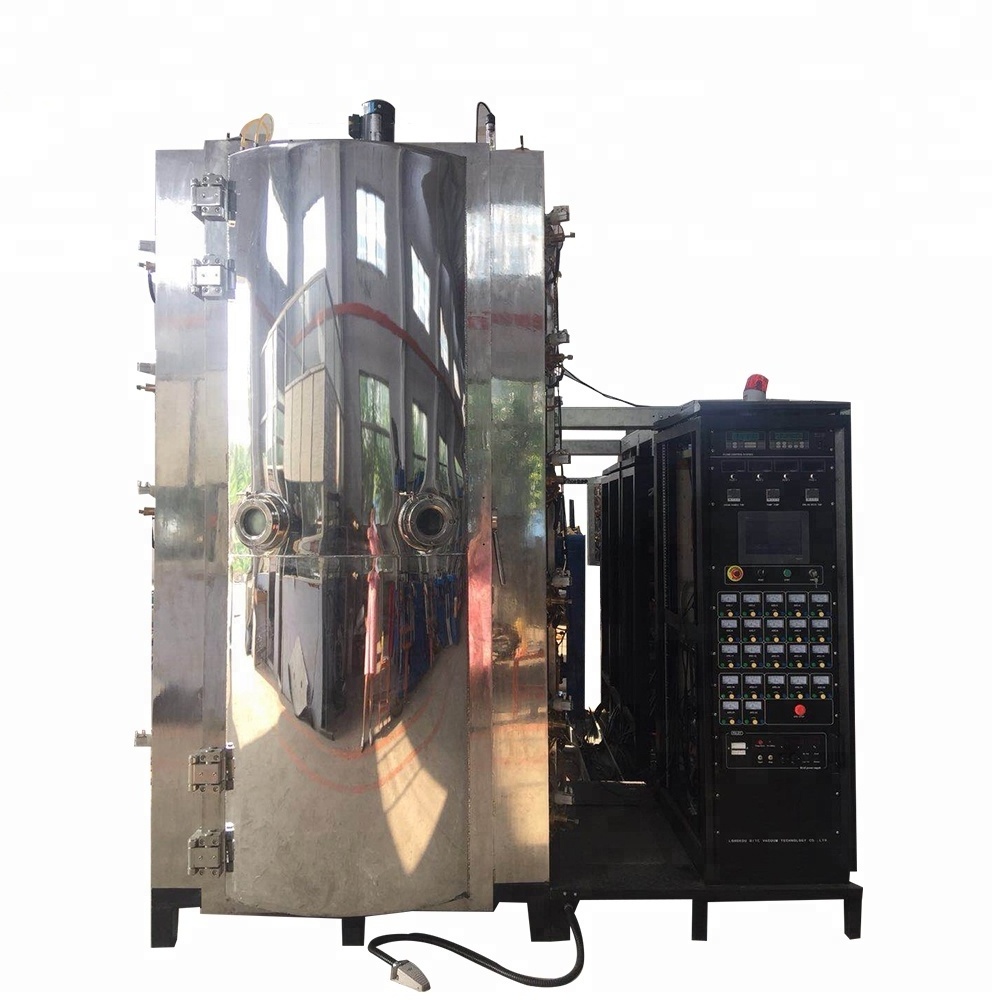

Fork and spoon Titanium Nitride PVD vacuum coating machine/equipment
1, overview
| name | PVD coating machine |
| coating way |
vacuum coating |
2 . Fork and spoon Titanium Nitride PVD vacuum coating machine/equipment technical parameter :
|
700 type |
800 type |
900 type |
1000 type |
||
|
dimension of vacuum chamber |
700×1000mm |
800×1000 mm |
900×1000 mm |
1000×1000 mm |
||
|
pumping speed |
1×105Pa~3×10-3Pa≤20min |
|||||
|
limit vacuum |
≤1×10-3Pa |
|||||
|
system form a complete set |
KT-600×2-2X-30/2X-70×4(ZLD-300×2) |
KT-600×2-2X-30/2X-70×4 (ZLD-300×2) |
||||
|
Work piece system |
Rotation of the planet forms(8 roating shaft, since the amount) |
|||||
|
heating methods |
Edge installation of stainless steel heating tube |
|||||
|
ion bombardment |
direct current 1000V or contravariant impulse 1000V high voltage bombardment |
|||||
|
vent system |
Mass flow controller control input gas |
|||||
|
arc target amount |
20 |
25 |
||||
|
working methods |
plc semi-auto control or pc+plc auto control |
|||||
|
working gas |
Ar N2 |
|||||
|
total power |
120KW |
160KW |
||||
|
compress air |
0.4~0.8MPa |
|||||
|
water-cooling system |
hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself |
|||||
This is our design,we can also produce the machine according to your requirements.
3. Application / coating samples / the effects that you want:
u watch & clock
u golf head,
u arts and crafts,
u toys,
u lights reflectors,
u phone keypad housing and instrument,
u plastic,
u glass,
u ceramic tile and other surface decorative coating film and functional coating of tool and mould.
4 . Features:
5. samples coated by our machine:
6.vacuum system:
If you are interested in our machine, please click here to contact us.
