Quick Details
-
Voltage:
-
220/380/415/600V, 3P, 50/60HZ
-
Power:
-
0.45
-
Dimension(L*W*H):
-
Depends
-
Weight (KG):
-
700
-
Product name:
-

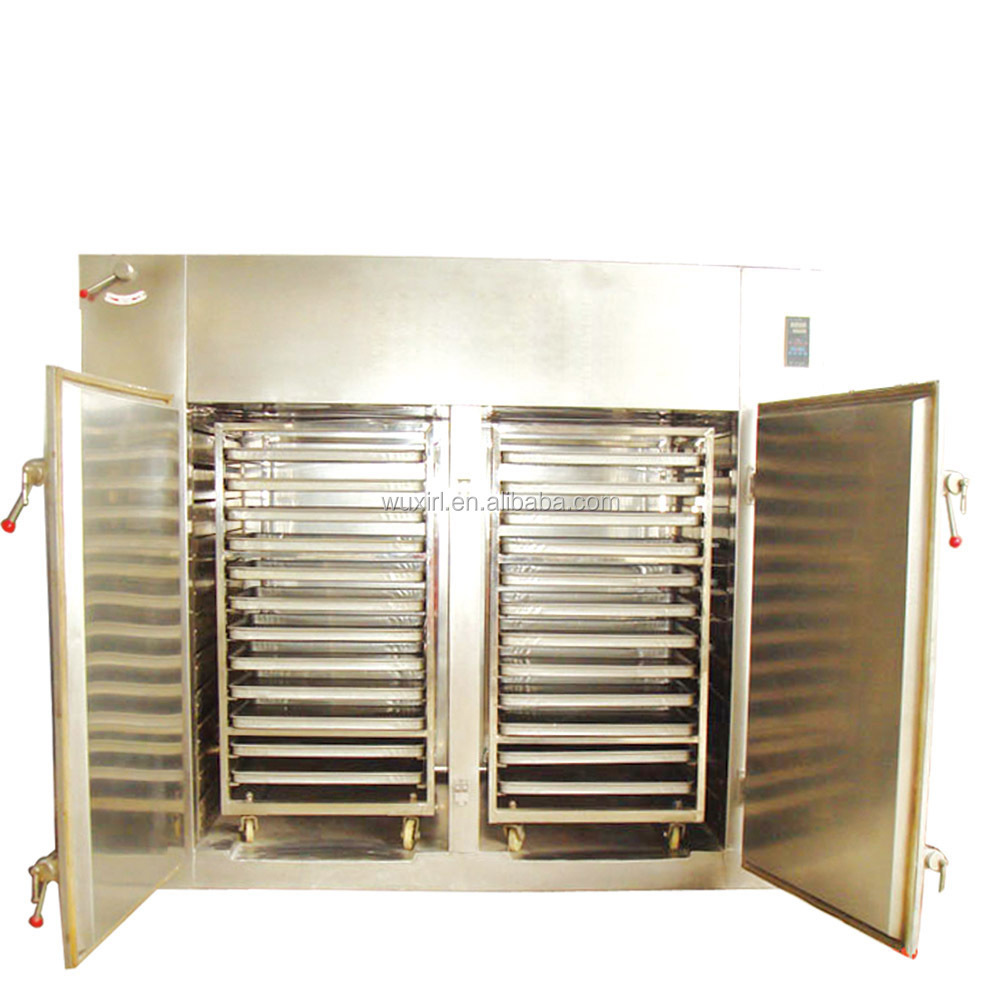

Industrial drying machine
-
Capacity:
-
50-400kg/batch
-
Heating source:
-
Steam/electricity
-
Temperature range:
-
10-150 (adjust)
-
Temp. difference:
-
+ - 2
-
Trolley No:
-
1-8 set
-
Tray No.:
-
24-192pcs
-
Dryig process:
-
Continuous Automatic Drying
-
Drying Oven Application:
-
Dry Raw Material
Quick Details
-
Type:
-
Tray Dryer
-
Place of Origin:
-
Jiangsu,China
-
Brand Name:
-
RELA
-
Voltage:
-
220/380/415/600V, 3P, 50/60HZ
-
Power:
-
0.45
-
Dimension(L*W*H):
-
Depends
-
Weight (KG):
-
700
-
Product name:
-
Industrial drying machine
-
Capacity:
-
50-400kg/batch
-
Heating source:
-
Steam/electricity
-
Temperature range:
-
10-150 (adjust)
-
Temp. difference:
-
+ - 2
-
Trolley No:
-
1-8 set
-
Tray No.:
-
24-192pcs
-
Dryig process:
-
Continuous Automatic Drying
-
Drying Oven Application:
-
Dry Raw Material
Product Description
Product Paramenters
|
Type
|
RXH-7-C
|
RXH-14-C
|
RXH-27-C
|
RXH-41-C
|
RXH-54-C
|
|
Capacity(kg/batch)
|
50
|
100
|
200
|
300
|
400
|
|
Fan motor (KW)
|
0.45
|
0.45
|
0.9
|
1.35
|
1.8
|
|
Steam Consumed
|
10
|
18
|
36
|
54
|
72
|
|
Heating radiating area (m2)
|
10
|
20
|
40
|
80
|
100
|
|
Air Flow（m3/h）
|
3400
|
3450
|
6900
|
10350
|
13800
|
|
Temp Difference
|
±2
|
±2
|
±2
|
±2
|
±2
|
|
Tray No.
|
24
|
48
|
96
|
144
|
192
|
|
Tray No.
|
1
|
2
|
4
|
6
|
8
|
|
Dimension
(L×W×H,cm ）
|
140×120×200
|
230×120×200
|
140×220×200
|
230×320×200
|
446×220×229
|
Working principle
RXH tray dryer machine is equipped with axial flow blower fan, which is low-noise and high temperature resistant.
The drying temperature is controlled automatically.
After the material being dried is loaded into the trays, start the electric heating or get through steam. Under the blowing of blower fan, the hot air recycles in the oven.
As the recycle system is enclosed, the drying efficiency increases to 35%-45% from traditional 3-7%. So it can save much energy.
Detailed Images
Packing&Shipping
RELA company
Wuxi Rela Machinery Co., Ltd, with more than 10 years experience, is focused on the powder solution, from the unit machine to the production line.
Our main products are Pulverizer, Mixing machine, Conveying machine, Sifting machine, Granulator, Dryer...
which are application to foodstuff, foodstuff, food additives, chemical raw material, baking ingredients...
Service
FAQ
Q: How can I know your machine is designed for my product?
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check company from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance .
The machine will have one year warranty . During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
