Quick Details
-
Brand Name:
-
DEWO
-
Model Number:
-
DV-16-A00-KK1-200E, DV-16-A00-KK1-200E
-
Max. Current:
-
16A
-
Operating Temperature:
-
40t125
-
Protection Level:
-
IP40
-
Item:
-
DV16 SPDT micro switch
-
Rating:
-
16A 250VAC
-
Electrical Life:
-
50,000cycles
-
Mechanical Life:
-
1,000,000cycles
-
Autuator:
-
Button
-
Terminal Type:
-
solder terminal
-
Circuit:
-
SPDT
-
Operating Force:
-
0.5~2.5N
-
Approval:
-
UL, ENEC, KC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Brand Name:
-
DEWO
-
Model Number:
-
DV-16-A00-KK1-200E, DV-16-A00-KK1-200E
-
Max. Current:
-
16A
-
Operating Temperature:
-
40t125
-
Protection Level:
-
IP40
-
Item:
-
DV16 SPDT micro switch
-
Rating:
-
16A 250VAC
-
Electrical Life:
-
50,000cycles
-
Mechanical Life:
-
1,000,000cycles
-
Autuator:
-
Button
-
Terminal Type:
-
solder terminal
-
Circuit:
-
SPDT
-
Operating Force:
-
0.5~2.5N
-
Approval:
-
UL, ENEC, KC

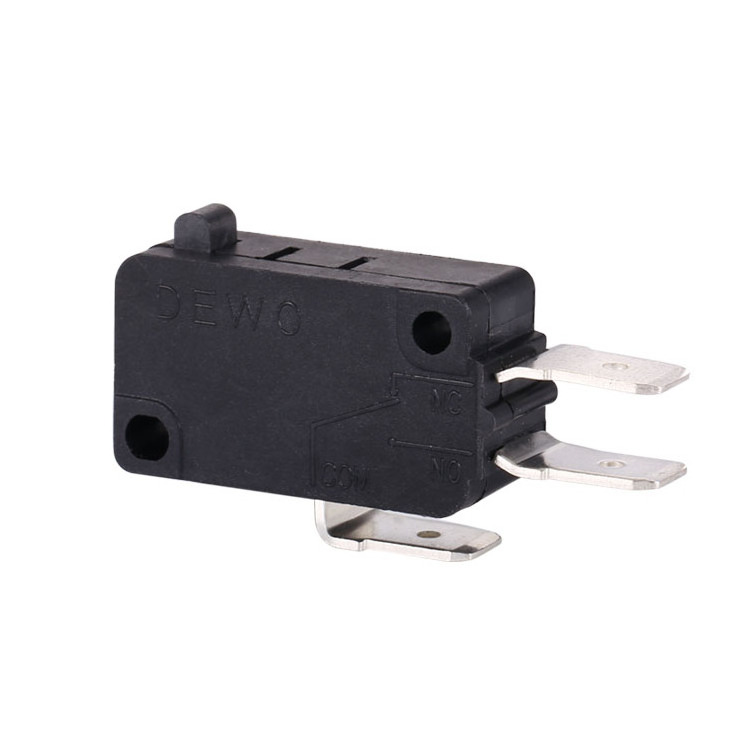

3 pin plunger 40t125 kw3a 25a 220v micro switch for power tool
Features :
(1) Various levers and terminal types are available for choice.
(2) Compact design, assemble easily.
(3) Fast action, long life, which could decline cost.
(4) Quality is reliable, has got UL, CUL, ENEC, CQC,CB, SGS certificates.
(5) Strict inspection: automated machine and human double full-inspection.
(6) Widely used in home appliances, electronic devices, automobile industry automation machines.
|
Item |
3 pin plunger 40t125 kw3a 25a 220v micro switch for power tool |
|
|
Model Number |
DV-16-A00-KK1-200E |
|
|
Rating |
16A 250VAC |
|
|
Temperature Range |
-40°C~+125°C |
|
|
IP Code |
IP40 |
|
|
Dimension |
27.9*18.4*10.3mm |
|
|
Material of Case & Knob |
PBT |
|
|
Material of Contacts |
AgNi10 |
|
|
Material of Terminal |
Cu |
|
|
Life |
Electrical Service Life |
50,000Cycles |
|
Mechanical Service Life |
1,000,000Cycles |
|
|
Approval |
UL, CUL, ENEC, CQC,CB, SGS |
|
Applianction
