Quick Details
-
Model Number:
-
pvc braided hose
-
Specification:
-
4mm-76mm
-
Length:
-
100m
-
Thickness:
-
2mm-8mm
-
Standard:
-
ISO9001:2008
-
Product name:
-
PVC braided hose
-
Color:
-
Blue, Orange, Yellow, Red, etc
-
Working Pressure:
-
4bar-12bar
-
Working Temperature:
-
-5℃ to +65℃
-
Features:
-
Durable, Light Weight with High Pressure
-
Transporting Medium:
-
Water, Oil, Liquid Fertilizer, Chemical Liquid
-
Inner Diameter:
-
4mm-76mm
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ET
-
Model Number:
-
pvc braided hose
-
Specification:
-
4mm-76mm
-
Length:
-
100m
-
Thickness:
-
2mm-8mm
-
Standard:
-
ISO9001:2008
-
Product name:
-
PVC braided hose
-
Color:
-
Blue, Orange, Yellow, Red, etc
-
Working Pressure:
-
4bar-12bar
-
Working Temperature:
-
-5℃ to +65℃
-
Features:
-
Durable, Light Weight with High Pressure
-
Transporting Medium:
-
Water, Oil, Liquid Fertilizer, Chemical Liquid
-
Inner Diameter:
-
4mm-76mm
Product Description

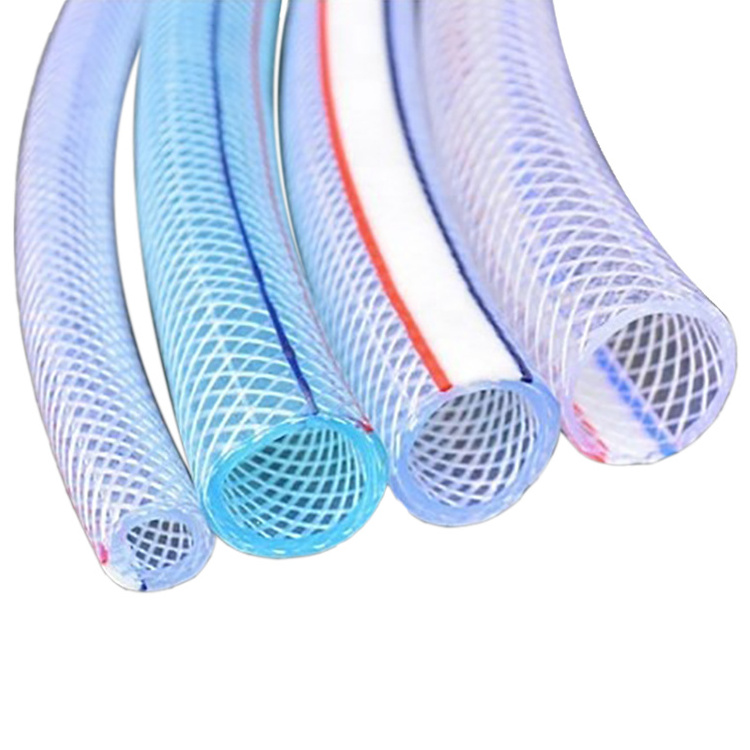

PVC Clear Braided Hose
Application: Delivery of water, oil, air under normal working conditions in plant, farm,construction, mining and family.
Features: Flexible PVC with high grade stregth polyester yarn reinforcement, transparent, durable, high performance pressure and weather resistant.
Temperature Range: -5℃ to +65℃
Specification
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
| inch | mm | mm | bar | psi | bar | psi | g/m | m |
| 5/32 | 4 | 8 | 10 | 150 | 50 | 750 | 49 | 100 |
| 1/5 | 5 | 10 | 12 | 180 | 40 | 600 | 76 | 100 |
| 1/4 | 6 | 11 | 12 | 180 | 36 | 540 | 87 | 100 |
| 5/16 | 8 | 13 | 10 | 150 | 30 | 450 | 105 | 100 |
| 3/8 | 10 | 15 | 10 | 150 | 30 | 450 | 130 | 100 |
| 1/2 | 12 | 18 | 9 | 135 | 27 | 405 | 185 | 100 |
| 5/8 | 16 | 22 | 8 | 120 | 24 | 360 | 230 | 50 |
| 3/4 | 19 | 25 | 6 | 90 | 18 | 270 | 270 | 50 |
| 7/8 | 22 | 28 | 5 | 75 | 15 | 225 | 305 | 50 |
| 1 | 25 | 31 | 5 | 75 | 15 | 225 | 340 | 50 |
| 1-1/4 | 32 | 40 | 4 | 60 | 12 | 180 | 590 | 40 |
| 1-1/2 | 38 | 46 | 4 | 60 | 12 | 180 | 690 | 40 |
| 1-3/4 | 45 | 56 | 4 | 60 | 12 | 180 | 1140 | 30 |
| 2 | 50 | 62 | 4 | 60 | 12 | 180 | 1380 | 30 |
| 2-1/2 | 64 | 78 | 4 | 60 | 12 | 180 | 2030 | 20 |
| 3 | 76 | 92 | 4 | 60 | 12 | 180 | 2750 | 20 |
