Quick Details
-
Brand Name:
-
HRUI
-
Model Number:
-
HR901-AF-1621GS-200
-
Place of Origin:
-
Guangdong, China
-
PoE Standard:
-
IEEE 802.3af/at
-
PoE Ports:
-
16*10/100Mbps PoE Ports
-
Uplink Ports:
-
2*10/100/1000Mbps RJ45 Ports
-
SFP Ports:
-
1*10/100/1000Mbps SFP Slot
-
Features:
-
VLAN/Extend 250-Meter
-
PoE Power:
-
200W
-
Working temperature:
-
-10℃ ~ 50℃
-
Product Size(L*W*H):
-
320mm*210mm*46mm
-
Product weight:
-
1.8KG
-
Certification:
-
CE/ FCC/RoHS
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
9.2G
-
Brand Name:
-
HRUI
-
Model Number:
-
HR901-AF-1621GS-200
-
Place of Origin:
-
Guangdong, China
-
PoE Standard:
-
IEEE 802.3af/at
-
PoE Ports:
-
16*10/100Mbps PoE Ports
-
Uplink Ports:
-
2*10/100/1000Mbps RJ45 Ports
-
SFP Ports:
-
1*10/100/1000Mbps SFP Slot
-
Features:
-
VLAN/Extend 250-Meter
-
PoE Power:
-
200W
-
Working temperature:
-
-10℃ ~ 50℃
-
Product Size(L*W*H):
-
320mm*210mm*46mm
-
Product weight:
-
1.8KG
-
Certification:
-
CE/ FCC/RoHS
Products Description

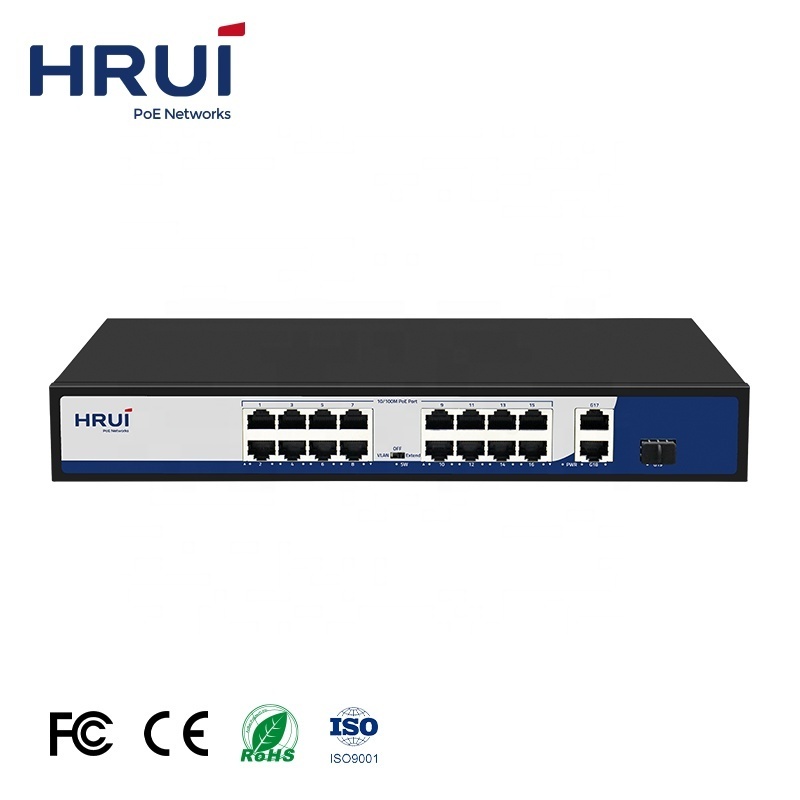

Intelligent PoE switch with 16*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP Port, complies with IEEE802.3af/at standard, bandwidth is 9.2Gbps, total power is up to 200W, supports port isolation and 250m transmission, suitable for -10℃~+50℃ wide temperature environment.
Main Features
Product Paramenters
|
I/O Interface
|
|
|
|
|
||||
|
Power
|
Input: AC 100-240V, 50/60Hz
|
|
|
|
||||
|
Ethernet
|
16*10/100M PoE Ports
2*Gigabit Ethernet Uplink Ports
1*10/100/1000M SFP Slot
|
|
|
|
||||
|
Performance
|
|
|
|
|
||||
|
Switching Capacity
|
9.2Gbps
|
|
|
|
||||
|
Throughput
|
6.844Mpps
|
|
|
|
||||
|
Packet Buffer
|
1.5MB
|
|
|
|
||||
|
MAC Address
|
2K
|
|
|
|
||||
|
Jumbo Frame
|
9216bytes
|
|
|
|
||||
|
Transfer Mode
|
Store and forward
|
|
|
|
||||
|
MTBF
|
100,000 hours
|
|
|
|
||||
|
Standard
|
|
|
|
|
||||
|
Network Protocol
|
IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3x (Flow Control)
|
|
|
|
||||
|
PoE Protocol
|
IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
|
|
|
|
||||
|
Industry Standard
|
EMI: FCC Part 15 CISPR (EN55032) Class A
EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
|
|
|
|
||||
|
Network Medium
|
10BASE-T: Cat 3, 4, 5 UTP (≤100 meter)
100BASE-TX: Cat5 or above UTP (≤100 meter)
1000Base-TX: Cat5 or above UTP (≤100 meter)
|
|
|
|
||||
|
Power Supply
|
|
|
|
|
||||
|
Power Voltage
|
Input Voltage: AC 100-240V
Power supply: 52V3.85A |
|
|
|
||||
|
Protection
|
|
|
|
|
||||
|
Certificate
|
CE, FCC, RoHS
|
|
|
|
||||
|
Environment
|
|
|
|
|
||||
|
Environment
|
Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%,non-condensing
Working Height: Maximum 10,000 feet
Storage Height: Maximum 10,000 feet
|
|
|
|
||||
|
Physical Features
|
|
|
|
|
||||
|
Dimension
|
ProductDimension(L*W*H): 320*207*45mm
PackageDimension(L*W*H): 370*290*85mm N.W: 1.8kg G.W: 2.3kg |
|
|
|
||||
|
Packing Info
|
Carton MEAS: 445*310*390mm
Packing Qty: 5units Packing Weight: 12.5KG |
|
|
|
||||
|
Package List
|
Switch 1 pcsPower cord 1 pcs
User manual 1 pc Certification 1 pc Brackets 1 pair |
|
|
|
||||
|
Indication
|
|
|
|
|
||||
|
DIP Switch
|
VLAN : Port isolation mode. In this mode, the PoE ports (1-16) of the switch can not communicate with each other, and can only
communicate with the uplink ports. OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10/100M adaptive. Extend : Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M. |
|
|
|
||||
|
LED Indicators
|
PWR(power supply)
SW(DIP)
1-19(Link&Data) |
|
|
|
||||
