Quick Details
-
Product name:
-
ELECTRIC LHD
-
Dimension:
-
4880x1150x1825 mm
-
Application:
-
Mining Equipment
-
Color:
-
Red
-
Loading capacity:
-
1t
-
after-sales service:
-
the whole use life
-
Motor:
-
37kw
Quick Details
-
Weight (KG):
-
4500
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tuoxing
-
Product name:
-
ELECTRIC LHD
-
Dimension:
-
4880x1150x1825 mm
-
Application:
-
Mining Equipment
-
Color:
-
Red
-
Loading capacity:
-
1t
-
after-sales service:
-
the whole use life
-
Motor:
-
37kw

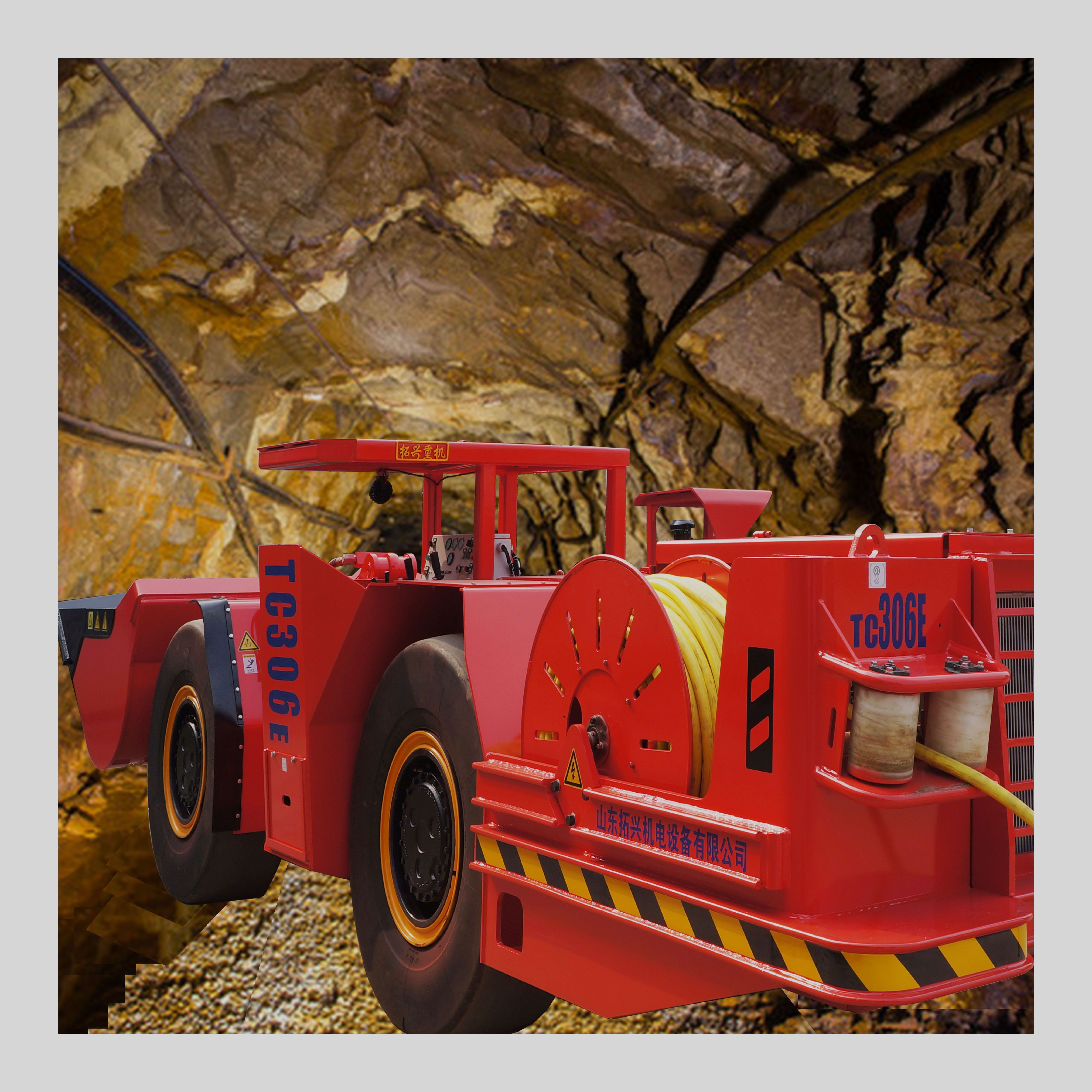

Underground
scooptram
Underground Mining Loaders, also known as scooptram loaders, are used to load the ore into haulage trucks or transport it to the surface. These robust machines are capable of operating in harsh underground conditions, providing efficient loading and hauling capabilities.
|
Product Name
|
Electric Underground Loaders
|
|
|
|
|||
|
Model
|
TC-0.5E
|
|
|
|
|||
|
Dimension
|
4880（ Transport Status）x1150x1825 mm
|
|
|
|
|||
|
Rated load
|
1t
|
|
|
|
|||
|
Bucket Capacity
|
0.5m
3
|
|
|
|
|||
|
Operating weight
|
4.5t
|
|
|
|
|||
|
Shovel pickup force
|
42kN
|
|
|
|
|||
|
Tractive force
|
45kN
|
|
|
|
|||
|
Engine power
|
37 kW
|
|
|
|
|||
|
Velocity
|
0～9.5 km/h (Bidirectional)
|
|
|
|
|||
|
Equipment description
|
1. It is especially suitable for ultra-small scraper in narrow and low roadways and difficult-to-mine areas.
2. The closed-type hydrostatic and stepless speed change driving system composed of variable plunger pump and variable plunger motor is used, which greatly improves the production efficiency;
3. The electric motor is used as the power source, which is pollution-free and low energy consumption. The plateau motor can be optional in high-altitude areas;
4. The cable retraction and retraction is controlled by a hydraulic cable reel valve, which effectively protects the cable from transition and extends and prolongs the service life.
5.This model can be customized.
|
|
|
|
|||
1. Who are we?
We are based in Shandong, China. We are the only global seller of Tuoxing.We are determined to promote the best products of Tuoxing to global customers
2.Will you provide some wearing parts of your products?
Yes, of course.If you need, we will provide with the products.
3.How is the quality of your products?
We have been approved of ISO, and our products accord with national and intertnational standards.Our products all contain warranty.
4.What payments term do you accept?
We accept L/C,T/T and D/P etc,T/T goes with 30% advanced payment after signing contract or order confirmation.
