Quick Details
-
Model Number:
-
QTLD
-
Liner material:
-
PTFE,PFA,F46,rubber,etc
-
Pressure:
-
0.6~4.0MPa(special pressure can be made too)
-
Electrode material:
-
SUS316,Hastelloy C,Hastelloy B,Titanium,Tantalum Platinum-iridium
-
Material:
-
SS304/SS316
-
Protection Class:
-
IP65,IP68
-
Ambient Temperature:
-
-25°C ~+ 60°C
-
Power supply:
-
220VAC/ 24VDC
-
Medium:
-
Conductive Liquid
-
Accuracy:
-
0.5%
-
Product Name:
-

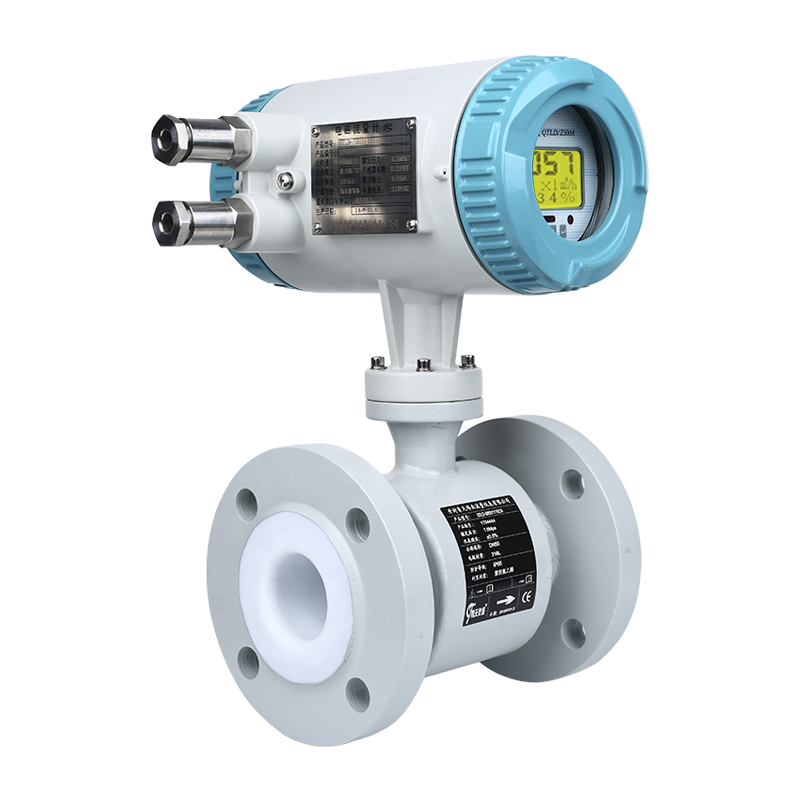

resistant liquid meter electromagnetic magnetic flow sensor
Quick Details
-
Type:
-
conductivity chemical resistant liquid meter elect
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Q&T
-
Model Number:
-
QTLD
-
Liner material:
-
PTFE,PFA,F46,rubber,etc
-
Pressure:
-
0.6~4.0MPa(special pressure can be made too)
-
Electrode material:
-
SUS316,Hastelloy C,Hastelloy B,Titanium,Tantalum Platinum-iridium
-
Material:
-
SS304/SS316
-
Protection Class:
-
IP65,IP68
-
Ambient Temperature:
-
-25°C ~+ 60°C
-
Power supply:
-
220VAC/ 24VDC
-
Medium:
-
Conductive Liquid
-
Accuracy:
-
0.5%
-
Product Name:
-
resistant liquid meter electromagnetic magnetic flow sensor
conductivity chemical resistant liquid meter electromagnetic magnetic flow sensor
WHY CHOOSE US?
Refined Material, Accurate Measurement
ENVIRONMENTAL TEST
High & low temperature test, different humidity test
Make sure instruments can resist any harsh environment
- Main Performances Parameters
| Size | DN3-DN3000mm |
| Nominal Pressure | 0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa) |
| Accuracy |
+/-0.5%(Standard)
+/-0.3% or +/-0.2%(Optional) |
| Liner | PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA |
| Electrode |
SUS316L, Hastelloy B, Hastelloy C
Titanium, Tantalum, Platinium-iridium |
| Structure Type | Integral type, remote type, submersible type, ex-proof type |
| Medium Temperature | -20~+60 degC(Integral type) |
|
Remote type(Neoprene,Hard Rubber,Polyurethane,EPDM) -10~+80degC
Remote type(PTFE/PFA/FEP) -10~+160degC |
|
| Ambient Temperature | -20~+60deg C |
| Ambient Humidity | 5-100%RH(relative humidity) |
| Measuring Range | Max 15m/s |
| Conductivity | >5us/cm |
| Protection Class | IP65(Standard); IP68(Optional for remote type) |
| Process Connection | Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional) |
| Output Signal | 4-20mA/Pulse |
| Communication | RS485(Standard), HART(Optional),GPRS/GSM (Optional) |
| Power Supply |
AC220V (can be used for AC85-250V)
DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional) |
| Power Consumption | <20W |
| Alarm | Upper Limit Alarm / Lower Limit Alarm |
| Self-diagnosis | Empty Pipe Alarm, Exciting Alarm |
| Explosion Proof | ATEX |
- Main Performances Of The Electrode Materials
| Electrode Material | Application |
| SUS316L |
Applicable in water, sewage and low corrosive medium;
Widely used in industries of petrol, chemistry, carbamide etc. |
| Hastelloy B |
Having strong resistance to hydrochloric acid of any consistence which is below boiling point.
Resistable against vitriol,phosphate, hydrofluoricacid, organic acid etc which are oxidable acid, alkali and non-oxidable salt. |
| Hastelloy C | Be resistant to oxidable acid such as nitric acid, mixed acid as well as oxidable salt such as Fe+++,Cu++ and sea water |
| Titanium | Applicable in seawater, and kinds of chloride, hypochlorite salt, oxidable acid (including fuming nitric acid), organic acid, alkali etc. Not resistant to a pure reducing acid (such as sulphuric acid, hydrochloric acid) corrosion. But if acid contains antioxidant (such as Fe+++,Cu++) is greatly reduce corrosion |
| Tantalum | Having strong resistance to corrosive mediums that is similar with glass. Almost applicable in all chemicals mediums except for hydrofluoric acid, oleum and alkali |
| Platinum-iridium | Almost be applicable in all chemical mediums except fortis, ammonium salt |
- Velocity-Flow Range Table
Remark:Suggest flow velocity range 0.5m/s-15m/s
