Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCO
-
Model Number:
-
TYCO
-
Type:
-
tile backer board, XPS Boards
-
Item name:
-
6mm 10mm XPS isolation rigid board
-
Material:
-
styrofoam board
-
Function:
-
Waterproof, thermal insulation, fireproof
-
Thermal conductivity:
-
0.03~0.036W/M*K
-
Compressive strength:
-
250~700Kpa
-
Color:
-
XPS blue,pink, EPS white
-
Is customised size:
-
yes
-
Foam board type:
-
high compressive foam board
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCO
-
Model Number:
-
TYCO
-
Type:
-
tile backer board, XPS Boards
-
Item name:
-
6mm 10mm XPS isolation rigid board
-
Material:
-
styrofoam board
-
Function:
-
Waterproof, thermal insulation, fireproof
-
Thermal conductivity:
-
0.03~0.036W/M*K
-
Compressive strength:
-
250~700Kpa
-
Color:
-
XPS blue,pink, EPS white
-
Is customised size:
-
yes
-
Foam board type:
-
high compressive foam board
Who We Are
Products Description

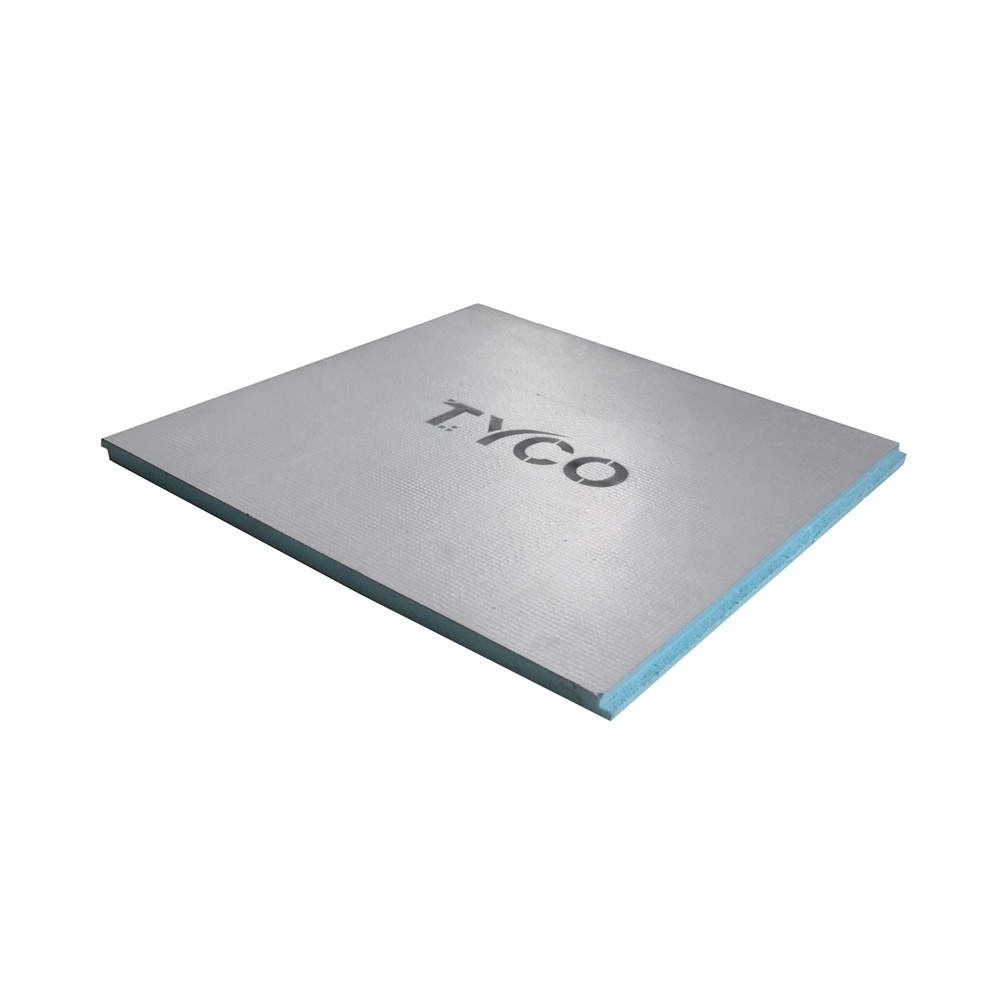

TYCO backer board
is made of XPS foam board(CFC&HCFC free, blue closed cell core) in core and coated with fiberglass mesh and polymer cement mortar on both sides. It makes the backer board ideal base for setting tiles using the thin bed process. The XPS foam board in core is 100% waterproof and offers expectional resistance to water vapor. As proof, these panels meet the stringent standards of ASTM/ANSI testing for waterproofing and are suitable as part of a waterproof installation when seams and fastener heads are properly treated.
*
Thermally insulating
* Waterproof and dimensionally stable
* Low weight, one board(1200x600x10mm) is around 1.8KG
* Waterproof and dimensionally stable
* Low weight, one board(1200x600x10mm) is around 1.8KG
* Easy to be tiled
* Easy to cut(by knife or Saw)
* Excellent for wet rooms
* Excellent sound insulation(12mm board, 20 db)
* Environment friendly(free of CFC&HCFC)
* Excellent for wet rooms
* Excellent sound insulation(12mm board, 20 db)
* Environment friendly(free of CFC&HCFC)
Technical Data
TYCO board 100% fresh raw material vs cheap recycled material
TYCO board material is approved by REACH, free of HBCD, HCFC, CFC, board quality meet EN13164.
|
Density
|
EN 1602
|
33kg/m3
|
|
Thermal conductivity, 90 days, 10°C
|
EN12939:2000
|
0.032W/(m*K)
|
|
Compressive strength
|
EN826
|
>300Kpa
|
|
Tensile strength
|
EN 1607
|
>300Kpa
|
|
Water absorption
|
EN 12087
|
0.80%
|
|
Dimensional stability
|
EN 1604
|
0.90%
|
|
CIT Value
|
EN45545-2:2013+A:2015
|
0.07
|
|
Fire resistant
|
EN 13501-1:2018
|
E
|
|
Sound Insulation (20mm thickness)
|
ISO140-3:1995+A1:2004
|
21db
|
Sizes & Packing
European hot selling sizes
|
Item No.
|
Thickness
|
Width
|
Length
|
|
UTB12006
|
6mm
|
600mm
|
1200/1250mm
|
|
UTB12010
|
10mm
|
|
|
|
UTB12012
|
12mm
|
|
|
|
UTB24410
|
10mm
|
600mm
|
2440/2500mm
|
|
UTB24412
|
12mm
|
|
|
|
UTB24420
|
20mm
|
|
|
|
UTB24430
|
30mm
|
|
|
|
UTB24450
|
50mm
|
|
|
Please feel free to contact us for any size or shape you need.
OEM & ODM is available!
Northern American hot selling sizes
|
Item No.
|
Width*Length*Thickness
|
|
CB53-12.7
|
3'x5'x1/2" (914*1524*12.7mm)
|
|
CB83-12.7
|
3'x8'x1/2" (914*2440*12.7mm)
|
|
CB84-25
|
4'x8'x1" (1220*2440*25mm)
|
|
CB83-50
|
3'x8x2" (914*2440*50mm)
|
|
CB84-50
|
4'x8'x2" (1220*2440*50mm)
|
Packing: by carton or by pallet directly
Application & Installation
Certifications
Related Products
Welcome to click pictures to see more our hot selling products.
Underfloor Heating Panel
1. Many type for different floors or budget2. OEM size for different project
3. Same to humans and environment
4. Good thermal transfer performance
5. Quality approved by CE/SINTEF/REACH/SGS
3. Same to humans and environment
4. Good thermal transfer performance
5. Quality approved by CE/SINTEF/REACH/SGS
XPS Foam Board
1. Various size, like 2400x1200mm
2. Different color
3. Thickness from 6~100mm
4. OEM&ODM support
5. Quality approved by CE/SINTEF/REACH/SGS
2. Different color
3. Thickness from 6~100mm
4. OEM&ODM support
5. Quality approved by CE/SINTEF/REACH/SGS
FAQ
Q:
Are you manufacturer or trading company?
A:
We are manufacturer over 20years and we export to whole world over 10years.
Q:
How does your factory control quality?
A:
We do quality control from the very beginning of raw material to the end of production. Each batch of products will be tested with caution before packing and delivery. We have testing equipment and staff in our QC department.
Q: Where can I use xps tile backer board?
A:
Its ideal for wetroom, kitchen, can be used on wall, floor, roof for heat insulation, fireproof, waterproof
.
Q: What's advanatge of your tile backer board?
A: Our board material is approved by CE/REACH/SGS/ICCES/SINTEF, saft to humans, as the only one factory in China can produce tile backer board by machine, we could control stable high quality better.
Q: Your board size is not availbale for my purpose, can you do specific board for me?
A: Sure, OEM and ODM is supportive, we can make specific size board to fit your floor very well.
Q: What's advanatge of your tile backer board?
A: Our board material is approved by CE/REACH/SGS/ICCES/SINTEF, saft to humans, as the only one factory in China can produce tile backer board by machine, we could control stable high quality better.
Q: Your board size is not availbale for my purpose, can you do specific board for me?
A: Sure, OEM and ODM is supportive, we can make specific size board to fit your floor very well.
Q:
Can I get samples before ordering?
A: Yes, small size sample is free, and express fee need to be bear in your side.
Q: How about MOQ and delivery?
A: Here is no MOQ if we have enough stock of standard board.
A: Yes, small size sample is free, and express fee need to be bear in your side.
Q: How about MOQ and delivery?
A: Here is no MOQ if we have enough stock of standard board.
Delivery time will be 15~20days for LCL order(less than full containerload), and 30days for FCL order(full of container load).
Q: Do you support to door delivery service?
A: Yes, we can handle whole delivery service to your door, and first please notice us if you have personal or company tile which can be used for customs clearance after goods arrive destination seaport.
Q: Do you support to door delivery service?
A: Yes, we can handle whole delivery service to your door, and first please notice us if you have personal or company tile which can be used for customs clearance after goods arrive destination seaport.
