Quick Details
-
X-ray generator:
-
Single focus, half-wave rectification and oil-immersed self-cooled
-
Resistance:
-
not larger than 1Ω
Quick Details
-
Place of Origin:
-
Anhui, China
-
Type:
-
Oral Therapy Equipments & Accessories
-
Panorama shoot time:
-
16s
-
X-ray generator:
-
Single focus, half-wave rectification and oil-immersed self-cooled
-
Resistance:
-
not larger than 1Ω

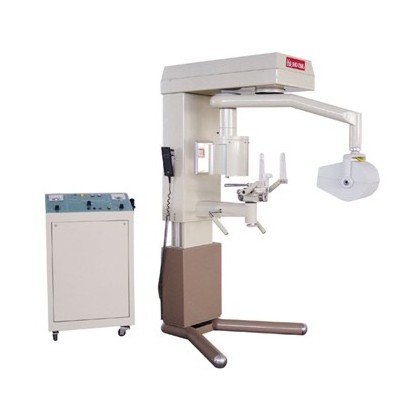

Panoramic X-ray Machine AJ-FQK1A
Features
This dental x-ray machine is designed on the principles of x-ray drum curvature tomography.
A small focus x-ray tube is adopted only for dental. It makes the picture clearer.
The unit can radiograph a complete view of curvature of the whole teeth in a picture. The picture includes sinuses, nasal sinus, maxillary, mandibular structure and the whole 32 teeth, temporal, lower jaw joint and its combined relations.
It takes the unit only 16s for a rotational radiography to shoot a panoramic view of whole Dental-Maxilla-Facial region.
An elevating motor is used in the unit, to raise or lower its gantry for radiography the people of different height.
This dental x ray machine can also be used for oral surgery and facial orthopedics.
Main Technical Parameter
|
X-ray generator |
Single focus, half-wave rectification and oil-immersed self-cooled |
|
|
Max rated capability |
Current |
10mA |
|
Voltage |
90kVp |
|
|
Time |
16 sec |
|
|
Power supply |
Voltage |
180 ~ 240V |
|
Frequency |
50Hz |
|
|
Power |
not lower than 1.8kVA |
|
|
Resistance |
not larger than 1Ω |
|
|
Voltage adjustment range of x-ray tube |
(divided into 8 steps)55 ~ 90kVp |
|
|
Film size |
150mm ×300mm |
|
|
Specification of X-ray tube |
0.8mm ×0.8mm only for dental |
|
|
Distance between the chin bracket to the floor |
800mm (min)1120 mm (max) |
|
|
Panorama shoot time |
16s |
|
|
Transport dimension, Weight |
100×162×174(cm), (NET)200kg/ (GROSS)320kg |
|
(1) ANJUE offer one year warranty, part of goods will enlarge to 24 months guarantees: within warranty, we offer our customers free service; beyond warranty, we offer customers paid service with cost price. We offer customers lifelong service. If there is any problem on our products,we will response in 12 hours by email,tel or fax.
(2) We offer customers new, good and qualified original products, which match manufacturer’s quality standard.
(3) The packages of devices are standard export standards,which is suitable for long distance transport.
(4) Every product have only identification serial number.
