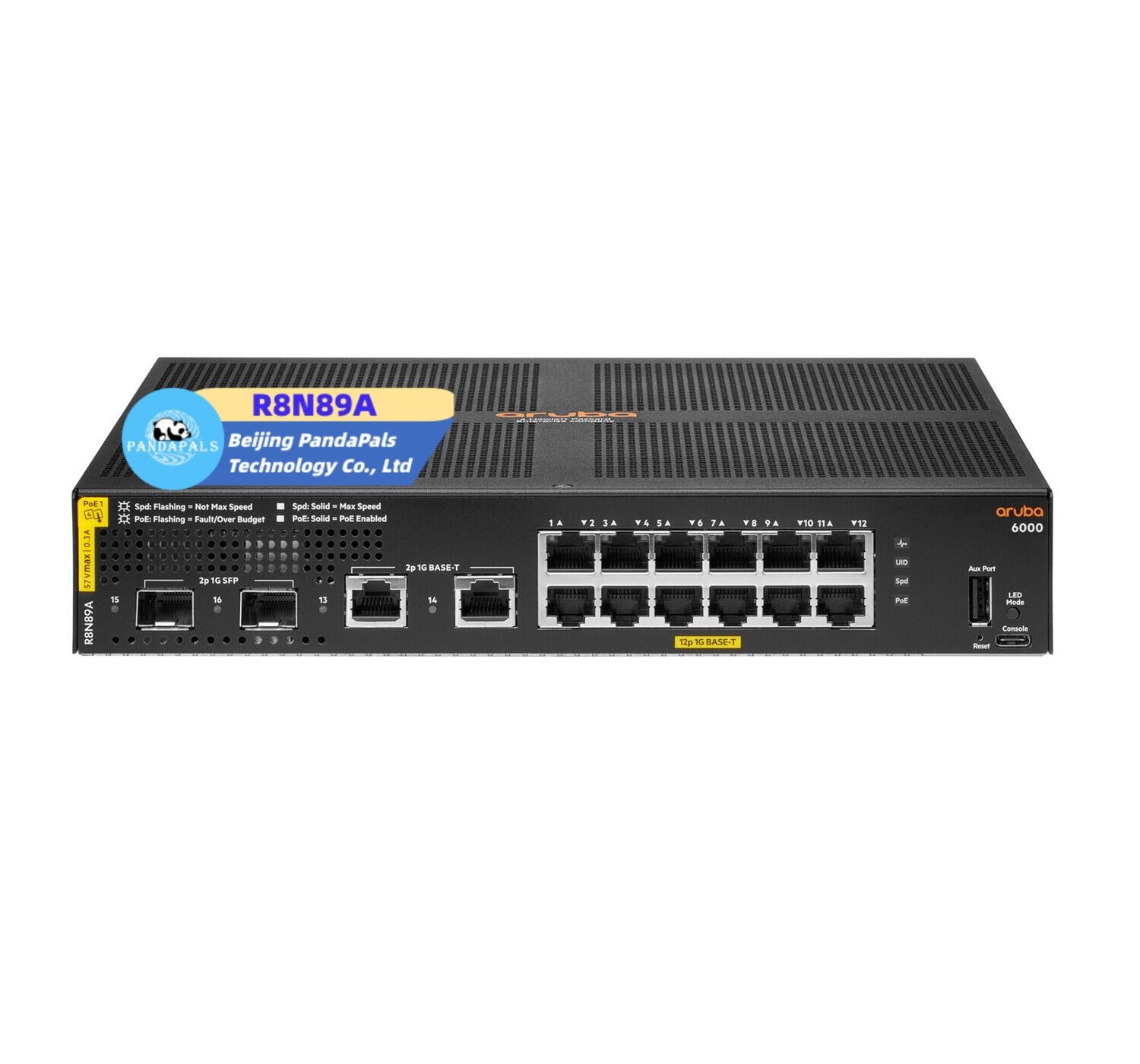

Original new HP Aruba gigabit ethernet 12 port network poe switch R8N89A

Original new HP Aruba gigabit ethernet 12 port network poe switch R8N89A

FOB Reference Price: Get Latest Price

≥1 Pieces

US $475

≥10 Pieces

US $465

≥20 Pieces

US $455

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Aruba

Model Number:: R8N89A

Place of Origin:: Beijing, China

Product name:: network Switch

Part Number:: R8N87A

Switching capacity:: 32 Gbps

Throughput:: 23.8 Mpps

Warranty:: 1year

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 32 Gbps

Brand Name:: Aruba

Model Number:: R8N89A

Place of Origin:: Beijing, China

Product name:: network Switch

Part Number:: R8N87A

Switching capacity:: 32 Gbps

Throughput:: 23.8 Mpps

Warranty:: 1year

Products Description

Aruba R8N89A Overview:

The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.

The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces.

The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty.

HPE Aruba R8N89A Key Features :

* Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
* Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
* Compact and fanless 12 port model for quiet deployment
* Management flexibility with support for Aruba Central1, easy-to-use Web GUI, CLI, and Aruba NetEdit
* Simple deployment with Zero Touch Provisioning
* Software defined ready with REST APIs
* Simplify adds, moves and changes with colorless ports

Aruba R8N89A Specification
	Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A)	Aruba 6000 48G 4SFP Switch (R8N86A)	Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A)	Aruba 6000 24G 4SFP Switch (R8N88A)	Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch (R8N89A)
Description	48x ports 10/100/1000BASE-T Ports 4x 1G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port	48x ports 10/100/1000BASE-T Ports 4x 1G SFP ports 1x USB-C Console Port 1x USB Type-A Host port	24x ports 10/100/1000BASE-T Ports 4x 1G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port	24x ports 10/100/1000BASE-T Ports 4x 1G SFP ports 1x USB-C Console Port 1x USB Type-A Host port	12x ports 10/100/1000BASE-T Ports 2x 1G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies	Fixed power supply Up to 370W of Class 4 PoE Power	Fixed power supply	Fixed power supply Up to 370W of Class 4 PoE Power	Fixed power supply	Fixed power supply Up to 139W of Class 4 PoE Power
Fans	Fixed fans	Fixed fans	Fixed fans	Fixed fans	Fanless
Dimensions	(H) 4.39 cm (W) 44.2 cm (D) 30.48 cm (1.73″ x 17.4″ x 12.0″)	(H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73″ x 17.4″ x x 9.74″)	(H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73″ x 17.4″ x x 10.56″)	(H) 4.39 cm (W) 44.2 cm (D) 20.12 cm (1.73″ x 17.4″ x x 7.92″)	(H) 4.39 cm (W) 25.4 cm (D) 25.5 cm (1.73″ x 10.0″ x x 10.04″)
Configuration Weight	5.02 kg (11.07 lbs)	3.42 kg (7.54 lbs)	4.19kg (9.24 lbs)	2.62 kg (5.78 lbs)	2.78 kg (6.13 lbs)
CPU	Dual Core ARM Cortex A9 @ 1016 Mhz	Dual Core ARM Cortex A9 @ 1016 Mhz	Dual Core ARM Cortex A9 @ 1016 Mhz	Dual Core ARM Cortex A9 @ 1016 Mhz	Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash	4 GB DDR3 16 GB eMMC	4 GB DDR3 16 GB eMMC	4 GB DDR3 16 GB eMMC	4 GB DDR3 16 GB eMMC	4 GB DDR3 16 GB eMMC
Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)	12.38MB (4.5MB Ingress/7.875MB Egress)	12.38MB (4.5MB Ingress/7.875MB Egress)	12.38MB (4.5MB Ingress/7.875MB Egress)	12.38MB (4.5MB Ingress/7.875MB Egress)
Model Switching Capacity	104 Gbps	104 Gbps	56 Gbps	56 Gbps	32 Gbps
Model Throughput Capacity	77.3 Mpps	77.3 Mpps	41.6 Mpps	41.6 Mpps	23.8 Mpps
Average Latency (LIFO-64-bytes packets)	1 Gbps: 1.9 μSec	1 Gbps: 1.9 μSec	1 Gbps: 1.5 μSec	1 Gbps: 1.5 μSec	1 Gbps: 2.3 μSec
Switched Virtual Interfaces (dual stack)	16	16	16	16	16
IPv4 Host Table (ARP)	1,024	1,024	1,024	1,024	1,024
IPv6 Host Table (ND)	512	512	512	512	512
IPv4 Unicast Routes	512	512	512	512	512
IPv6 Unicast Routes	512	512	512	512	512
MAC Table Capacity	8,192	8,192	8,192	8,192	8,192
IGMP Groups	512	512	512	512	512
MLD Groups	512	512	512	512	512
IPv4/IPv6/MAC ACL Entries (ingress)	256 / 128 / 256	256 / 128 / 256	256 / 128 / 256	256 / 128 / 256	256 / 128 / 256
Frequency	50 / 60 Hz	50 / 60 Hz	50 / 60 Hz	50 / 60 Hz	50 / 60 Hz
AC Voltage	100-127 VAC / 200-240 VAC	100-127 VAC / 200-240 VAC	100-127 VAC / 200-240 VAC	100-127 VAC / 200-240 VAC	100-127 VAC / 200-240 VAC
Current	4.9 A / 2.4 A	0.8 A / 0.5 A	4.6 A / 2.3 A	0.6 A / 0.4 A	1.8 A / 0.9 A
Power Consumption (230 VAC)	Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W	Idle: 20.6W Max Power (w/o PoE): 44.2W	Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W	Idle: 15.4W Max Power (w/o PoE): 33W	Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
