◈ Low Insertion Loss
◈ High Return Loss
◈ Good Repeatability
◈ Good Exchangeability
◈ High Temperature Stabilit
Applications:
◈ Telecom or Data communications
◈ Military industry, Medical
◈ CATV, LAN, WAN, Test & Measurement
◈ Systems Integration for Railway, Metro
◈ Fiber to the Indoor (FTTX) Test
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Silink/OEm
-
Use:
-
Telecom or Data communications
-
Warranty Time:
-
1 year
-
Product name:
-
Optical Fiber Adapter
-
Application:
-
Telecommunication Network
-
Connector Type:
-
SC FC LC ST
-
Insertion Loss:
-
IL<0.2db
-
Material:
-
PC+ABS
-
Color:
-
Customer Requirement
-
Fiber count:
-
Simplx Duplex
-
Package:
-
Standard Package
-
Service:
-
OEM ODM Accept
Quick Details
-
Type:
-
Fiber opitc adapter
-
Model Number:
-
SL-FOA-XX
-
Place of Origin:
-
GUA
-
Brand Name:
-
Silink/OEm
-
Use:
-
Telecom or Data communications
-
Warranty Time:
-
1 year
-
Product name:
-
Optical Fiber Adapter
-
Application:
-
Telecommunication Network
-
Connector Type:
-
SC FC LC ST
-
Insertion Loss:
-
IL<0.2db
-
Material:
-
PC+ABS
-
Color:
-
Customer Requirement
-
Fiber count:
-
Simplx Duplex
-
Package:
-
Standard Package
-
Service:
-
OEM ODM Accept
Product Description

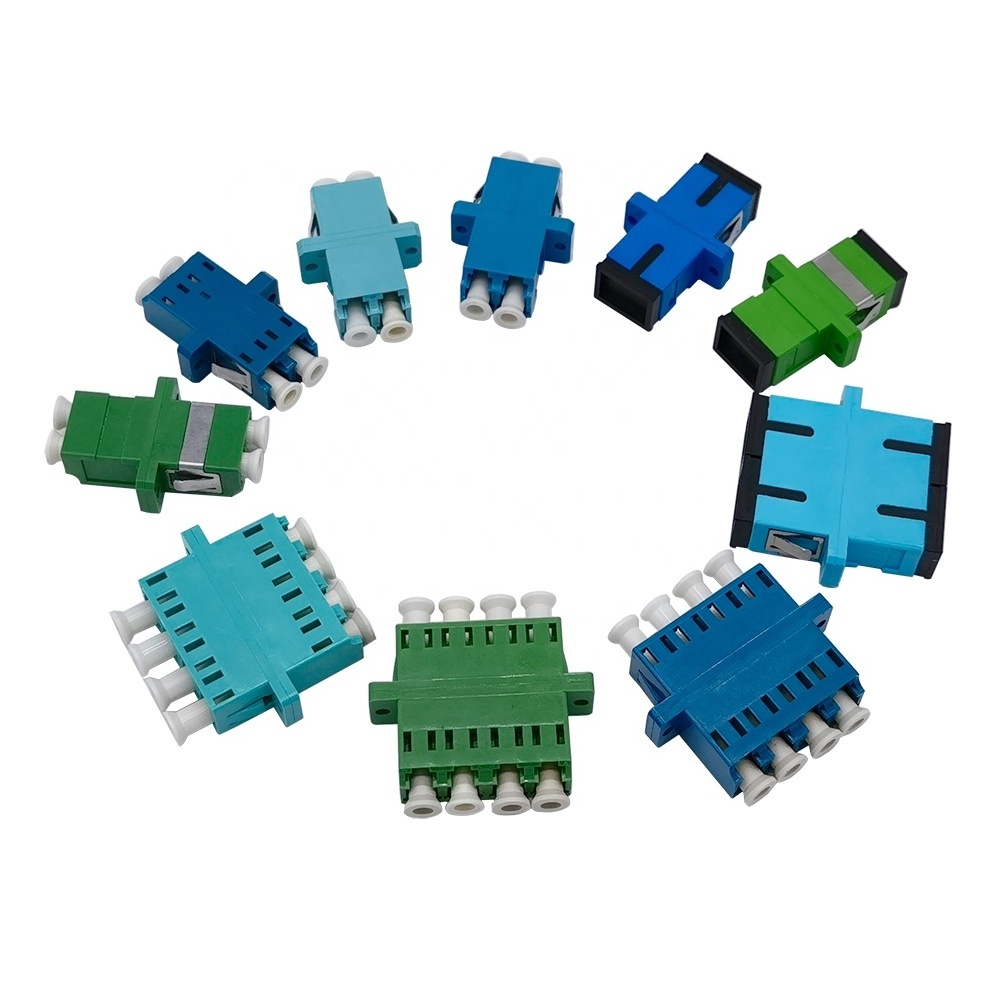

SC LC Various Fiber Optic Adapter/Coupler with Flange
Description:
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. Fiberstore supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
Features:
|
Connector Type
|
LC SC FC ST optional
|
|
Fiber Mode
|
Singlemode/Multimode
|
|
Body Style
|
Simplex/Duplex/Quad
|
|
Polish Type
|
UPC/APC
|
|
Insertion Loss
|
≤0.2dB
|
|
Mounting Type
|
Flanged
|
|
Durability
|
1000 times
|
|
Alignment Sleeve Material
|
Ceramic
|
|
Color
|
Blue/Green/Aqua
|
Good Protection with Dust Cap
◈
The fiber optic adapter is loaded with a corresponding dust cap to prevent it from dust and keep it clean.
Simply Connecting Two Fiber Optic Cables
◈
Allowing two devices to communicate from a distance through a direct connection with the fiber optic line.
High-precision Ceramic Sleeve
◈
The internal ceramic sleeve is high precision to ensure the maximum connection between fiber jumpers.
Stainless Steel Clip
◈
Allow for easy snap-in installation without tools
PC
suited for telecom operator equipment.
UPC
suited for ethernet network equipment, devies, media converters and fiber switches.
APC
suited for high bandwidth applications and long distance links, such as FTTX.
PC/UPC is generally blue, APC is green.
Detailed Images
Packing & Delivery
Packing
◈ Antistatic bag
◈
Neutral packaging or our own brand packaging.
◈
Can be packaged according to customer requirements.
Payment
◈
T/T, Western Union, Paypal and so on.
Delivery
◈
International Express: DHL, FedEx, UPS, TNT, Aramex and so on.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
Our Service
OEM:
We can provide OEM services, and can design packaging, Logo, and labels according to customer requirements.
Warranty:
Fiber Optic Products 1 Year warranty
Our Advantages:
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001 quality management system.
4. Our company has experienced professional R&D and Sales team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
Our Company
Shenzhen Silink Technology Co., Ltd.
is a leading manufacturer and exporter specializing in fiber optical communications equipments,optical transceiver modules and network cabling products.
Optical transceiver modules:
SFP, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM,Media Converter and other special transceiver modules,which are compatible with Cisco, 3COM, H3C, HP, Alcatel-Lucent, Allied Telesis, Nortel, Juniper, Huawei,etc.
Network cabling products:
Keystone jack,patch panel,patch cord,faceplate,etc.
Fiber optical communications equipments:
Fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc.
These products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
FAQ
1. Are you the real factory?
Answer:
we are the real factory with 10 years’ history.
2.
Can you supply OEM products under our brand?
Answer:
Yes, sure. We can supply OEM products with OEM package, but it will need MOQ to print your brand.
3. What is your main products?
Answer:
armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
Answer:
years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
Answer:
build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. MOQ: what is your minimum quantity?
Answer:
is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
7. Do you have distributor in other country or domestic?
Answer:
now, we sell our products to customers directly. And factory price could be offered.
8, What is the lead time?
Answer:
For usual products,We keep stock,could ship 1-3 days after PO.For big quantity and special products,Please check lead time with our sales representative.
9, What is your payment terms?
Answer:
T/T, Western union, Paypal.
10, What is the shipping terms?
Answer:
We usually ship by Aramex, Fedex, DHL, UPS, TNT and EMS. If you have another preferred carrier, please notify us in advance.
