Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
SHN
-
Brand Name:
-
fineworkcnc
-
Dimension(L*W*H):
-
205*158*134cm
-
Weight (KG):
-
68 KG
-
Mode of Operation:
-
CO2 Laser
-
Configuration:
-
CO2 Laser tube
-
Colour:
-
Grey and White
-
Gross Weight:
-
135KG
-
Laser tube type:
-
Sealed CO2 glass Tube
-
Laser Power:
-
60W/80W/100W/130W/150W
-
Cutting Speed:
-
0-60 Mm/s
-
Resolution:
-
±0.05mm/1000DPI
-
Power consumption:
-
<350W (Total)
-
Z-Axis Movement:
-
Automatic
Quick Details
-
Engraving Area:
-
400mm * 600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-500mm/s, 0-600mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
SHN
-
Brand Name:
-
fineworkcnc
-
Dimension(L*W*H):
-
205*158*134cm
-
Weight (KG):
-
68 KG
-
Mode of Operation:
-
CO2 Laser
-
Configuration:
-
CO2 Laser tube
-
Colour:
-
Grey and White
-
Gross Weight:
-
135KG
-
Laser tube type:
-
Sealed CO2 glass Tube
-
Laser Power:
-
60W/80W/100W/130W/150W
-
Cutting Speed:
-
0-60 Mm/s
-
Resolution:
-
±0.05mm/1000DPI
-
Power consumption:
-
<350W (Total)
-
Z-Axis Movement:
-
Automatic
Specification
|
Model
|
Name
|
Paramter
|
|
1
|
Application
|
Laser engraving and cuttingmachine
|
|
2
|
Power
|
60W/80W100W/130W/150W
|
|
3
|
Working area
|
600*400/900*600/1000*800/1300*1000/1600*1000mm
|
|
4
|
Tube Brand
|
RECI/EFR/YONGLI/SPT
|
|
5
|
Power Supply
|
110V/220V 50HZ/60HZ
|
|
6
|
Min line width
|
≤0.15mm
|
|
7
|
Positon accuracy
|
0.01mm
|
|
8
|
Repetition accuracy
|
0.02mm
|
|
9
|
DPI
|
1000 DPI
|
|
10
|
Smallest Character Engraving
|
Character2.0mm×2.0mm, English 1.0mm×1.0mm
|
|
11
|
Guide rail
|
PMI/Shac from 15mm Taiwan (X-axis, Y-axis)
|
|
12
|
Transmission method
|
Belt Transmission
|
|
13
|
Drive system
|
Leadshine driving system
|
|
14
|
Mainboard
|
RUIDA 6445/6442
|
|
15
|
Control software
|
RUIDA-V8,Coreldraw, Photoshop, AutoCAD, etc
|
|
16
|
Cooling method
|
Water cooling
|
|
17
|
Working environment
|
0-45℃
|
|
18
|
Mchine size
|
4060=140*75*95/140*100*95/155*115*95/187*137*95cm
|
|
19
|
Working table
|
Honey comb/ Knief/up and down/Electric lifting
|

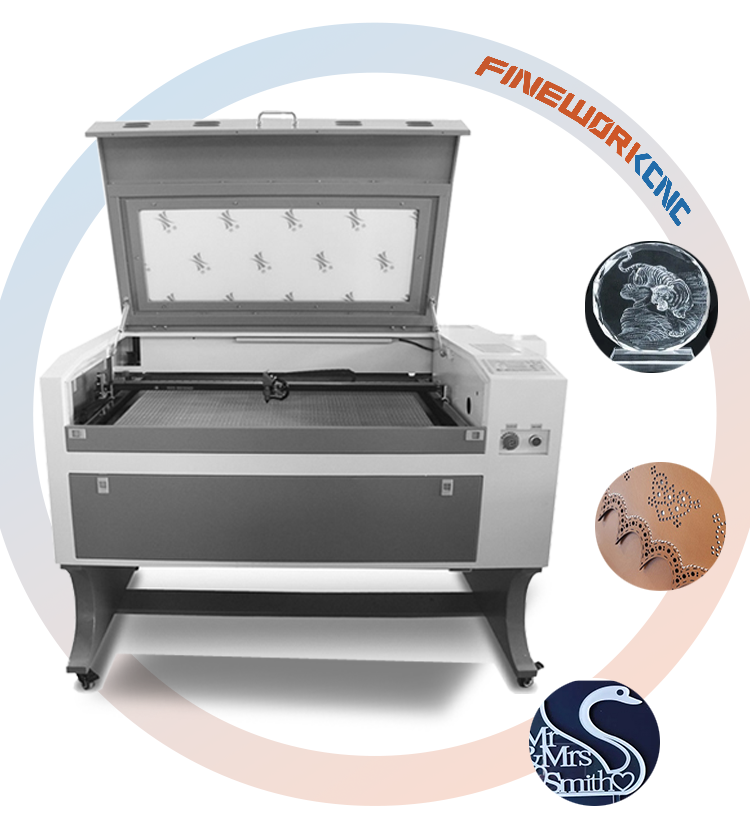

Products Description
Main features
# EFR RECI brand laser tube,6000 hours work life span , global warranty 12 months.
# Double linear guide rail ( square rail ), have more fast speed .
# Electrical up and down fence blade work table, lifting distance is 180mm
# Ruida 6442s controller, the most popular controller all over the world .
# Front to rear design, it can hold large size of material.
# 12 months warranty + 16 hours online service.
Sample
After Sale Service Introduction
What kind of support you can get from fineworkcnc？
1.
2 year warranty
，Provide a full range of technical support for life.
2.
From monday to sunday 9am to 22pm
. Experienced technician to guarantee lifetime online support（by whatsapp /skyper /wechat /email）. So there is no need to worry about technical support due to time difference.
