- Product Details
- {{item.text}}
Quick Details
-
Color Rendering Index(Ra):
-
80
-
Color Temperature(CCT):
-
1500-25000K available
-
Input Voltage(V):
-
30 volts
-
Luminous Intensity:
-
.
-
Luminous Flux(lm):
-
800-1200 Lumen
-
Optical Attenuation(%):
-
0.1
-
Power Dissipation:
-
10000
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
2700-3200K
-
Operating Temperature(℃):
-
-20 - 60
-
Storage Temperature(℃):
-
-40 - 100
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHINING
-
Chip brand:
-
Dehao / Sanan
-
Lifespan:
-
50000 Hours
-
Substrate:
-
Aluminum
-
Size:
-
19mm*19mm
-
Luminous efficiency:
-
100-130Lm/W
-
Warranty:
-
3 Years
-
Regular CCT:
-
3000K / 4000K / 5000K/ 5700K / 6000K / 6500K
-
Working current:
-
300mA
-
Application:
-
Downlight / GU10 / Floodlight / SpotLight / Track Light/ Ceiling Light
-
Working Voltage:
-
DC 30-34V
-
Certification:
-
ce, RoHS
-
Lamp Luminous Efficiency(lm/w):
-
120
Quick Details
-
Warranty(Year):
-
2 year
-
Support Dimmer:
-
NO
-
Luminous Efficacy(lm/w):
-
120
-
Color Rendering Index(Ra):
-
80
-
Color Temperature(CCT):
-
1500-25000K available
-
Input Voltage(V):
-
30 volts
-
Luminous Intensity:
-
.
-
Luminous Flux(lm):
-
800-1200 Lumen
-
Optical Attenuation(%):
-
0.1
-
Power Dissipation:
-
10000
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
2700-3200K
-
Operating Temperature(℃):
-
-20 - 60
-
Storage Temperature(℃):
-
-40 - 100
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHINING
-
Chip brand:
-
Dehao / Sanan
-
Lifespan:
-
50000 Hours
-
Substrate:
-
Aluminum
-
Size:
-
19mm*19mm
-
Luminous efficiency:
-
100-130Lm/W
-
Warranty:
-
3 Years
-
Regular CCT:
-
3000K / 4000K / 5000K/ 5700K / 6000K / 6500K
-
Working current:
-
300mA
-
Application:
-
Downlight / GU10 / Floodlight / SpotLight / Track Light/ Ceiling Light
-
Working Voltage:
-
DC 30-34V
-
Certification:
-
ce, RoHS
-
Lamp Luminous Efficiency(lm/w):
-
120

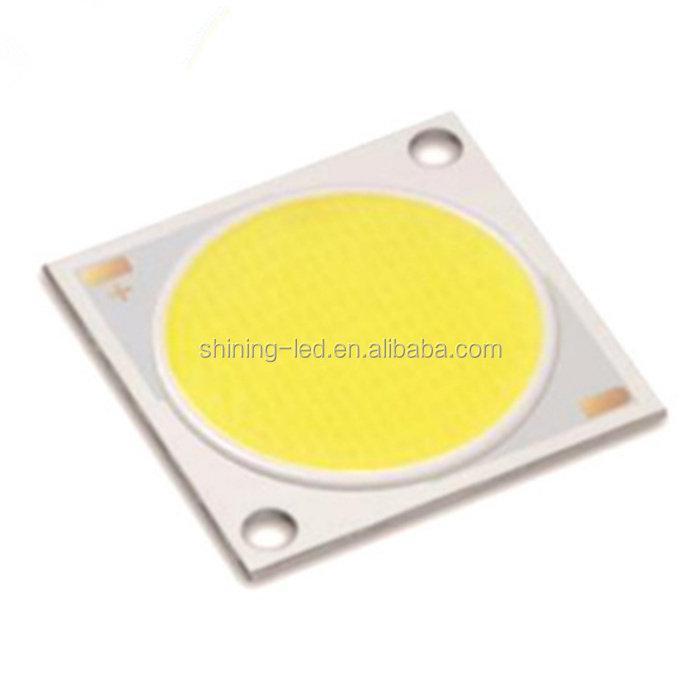

3 Years Warranty High Quality 1919 10W COB LED Chip for Light
|
Flip Chip LED COB Ceramic Plate Series
|
||||||||
| Item No. | Product Name | Power | CCT(K) | Luminous Flux{LM} @Typ.If) | Voltage(V) |
Current
(mA) |
CRI(Ra) |
Luminous
MM) |
| SN-COB13.5 | 13.5*13.5 | 9w | 2700-6500 | 810-990 | 54-57.6.6 | 150 | >80 | 11.2 |
| 10w | 2700-6500 | 900-1100 | 60-64 | 150 | >80 | 11.2 | ||
| SN-COB19 | 19*19 | 10w | 2700-6500 | 900-1300 | 30-36 | 300 | >80 | 17 |
| 15w | 2700-6500 | 1350-1650 | 90-96 | 150 | >80 | 17 | ||
| 15w | 2700-6500 | 1350-1650 | 36-38.4 | 450 | >80 | 17 | ||
| SN-COB1215 | 1215 | 6w | 2700-6500 | 540-660 | 18-19.2 | 300 | >80 | 10 |
| 6w | 2700-6500 | 540-660 | 36-38.4 | 150 | >80 | 10 | ||
| 8w | 2700-6500 | 720-880 | 24-25.6 | 300 | >80 | 10 | ||
| SN-COB4046 | 4046 | 20w | 2700-6500 | 1600-2000 | 30-32 | 700 | >70 | 26 |
| 30w | 2700-6500 | 2400-3000 | 30-32 | 1050 | >70 | 26 | ||
| 50w | 2700-6500 | 4000-5000 | 30-32 | 1750 | >70 | 26 | ||
| 70w | 2700-6500 | 5600-7000 | 30-32 | 2450 | >70 | 26 | ||
|
Flip Chip COB LED Aluminum Plate Series
|
||||||||
| Item No. | Product Name | Power | CCT(K) | Luminous Flux{LM} @Typ.If) | Voltage(V) |
Current
(mA) |
CRI(Ra) |
Luminous
MM) |
| SN-COB13.5 | 13.5*13.5 | 3w | 2700-6500 | 240-300 | 9-9.6 | 300 | >80 | 11.2 |
| 5w | 2700-6500 | 400-500 | 15-16 | 300 | >80 | 11.2 | ||
| 7w | 2700-6500 | 560-700 | 21-22.4 | 300 | >80 | 11.2 | ||
| 9w | 2700-6500 | 720-900 | 27-28.8 | 300 | >80 | 11.2 | ||
| 12w | 2700-6500 | 960-1200 | 36-38.4 | 300 | >80 | 11.2 | ||
| SN-COB19 | 19*19 | 10w | 2700-6500 | 800-1000 | 30-32 | 300 | >80 | 17 |
| 15w | 2700-6500 | 1200-1500 | 45-48 | 300 | >80 | 17 | ||
| 20w | 2700-6500 | 1600-2000 | 60-64 | 300 | >80 | 17 | ||
| 25w | 2700-6500 | 2000-2500 | 75-80 | 300 | >80 | 17 | ||
| 30w | 2700-6500 | 2400-3000 | 90-96 | 300 | >80 | 17 | ||
| SN-COB2011 | 2011 | 3w | 2700-6500 | 240-300 | 9-9.6 | 300 | >80 | 10-11.2 |
| 5w | 2700-6500 | 400-500 | 15-16 | 300 | >80 | 10-11.2 | ||
| 7w | 2700-6500 | 560-700 | 21-22.4 | 300 | >80 | 10-11.2 | ||
| 9w | 2700-6500 | 720-900 | 27-28.8 | 300 | >80 | 10-11.2 | ||
| SN-COB2820 | 2820 | 3w | 2700-6500 | 240-300 | 9-9.6 | 300 | >80 | 17-20 |
| 5w | 2700-6500 | 400-500 | 15-16 | 300 | >80 | 17-20 | ||
| 7w | 2700-6500 | 560-700 | 21-22.4 | 300 | >80 | 17-20 | ||
| 9w | 2700-6500 | 720-900 | 27-28.8 | 300 | >80 | 17-20 | ||
| SN-COB6046 | 6046 | 15w | 2700-6500 | 1200-1500 | 9-9.6 | 300 | >80 | 46 |
| 20w | 2700-6500 | 1600-2000 | 15-16 | 300 | >80 | 46 | ||
| SN-COB7060 | 7060 | 15w | 2700-6500 | 1200-1500 | 45-48 | 300 | >80 | 60 |
| 20w | 2700-6500 | 1600-2000 | 60-64 | 300 | >80 | 60 | ||
| 30w | 2700-6500 | 2400-3000 | 30-32 | 300 | >80 | 60 | ||
| SN-COB4046 | 4046 | 20w | 2700-6500 | 1600-2000 | 30-32 | 700 | >70 | 26 |
| 30w | 2700-6500 | 2400-3000 | 30-32 | 1050 | >70 | 26 | ||
| 50w | 2700-6500 | 4000-5000 | 30-32 | 1750 | >70 | 26 | ||
| 70w | 2700-6500 | 5600-7000 | 30-32 | 2450 | >70 | 26 | ||
Applications of COB LEDs:
Competitive Advantages of our LEDs:
1. Good quality guarantee, 50000 hours lifespan, 3-5 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-7 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 ,
2323 , 3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.
