Extrusion motor and gear box offer the power for screw. Meanwhile screw
and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly
heating function.
- Product Details
- {{item.text}}
Quick Details
-
Ejector Force(kN):
-
780 kN
-
Theoretical Shot Volume(cm³):
-
16200 cm³
-
Injection Rate (g/s):
-
15 g/s
-
Injection Weight (g):
-
2000 g
-
Screw diameter (mm):
-
100 mm
-
Screw L/D Ratio:
-
28
-
Weight (KG):
-
20000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
1100 mm
-
Brand Name:
-
HUAN
-
Power (kW):
-
160 kW
-
Model Number:
-
BSM100N-160L
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Material:
-
pe/pvc/pp/abs/HDPE
-
Machine type:
-
Extrusion blow moulding machine
-
Range:
-
160L plastic bottle
-
Production:
-
hdpe extrusion blow molding machine
-
Rotary Cylinder Brand:
-
Customized
-
High Pressure Valve Brand:
-
Customized
-
Product name:
-
Blow Molding Machine For Floating Pontoon Float Dock
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
1400mm
-
Distance between Tie Bars(Height)(mm):
-
600mm
-
Ejector Stroke(mm):
-
900 mm
-
Ejector Force(kN):
-
780 kN
-
Theoretical Shot Volume(cm³):
-
16200 cm³
-
Injection Rate (g/s):
-
15 g/s
-
Injection Weight (g):
-
2000 g
-
Screw diameter (mm):
-
100 mm
-
Screw L/D Ratio:
-
28
-
Weight (KG):
-
20000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
1100 mm
-
Brand Name:
-
HUAN
-
Power (kW):
-
160 kW
-
Model Number:
-
BSM100N-160L
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Material:
-
pe/pvc/pp/abs/HDPE
-
Machine type:
-
Extrusion blow moulding machine
-
Range:
-
160L plastic bottle
-
Production:
-
hdpe extrusion blow molding machine
-
Rotary Cylinder Brand:
-
Customized
-
High Pressure Valve Brand:
-
Customized
-
Product name:
-
Blow Molding Machine For Floating Pontoon Float Dock
Product Description
120L 130L 135L 150L 160l 3 layers pe drum barrel jerrycan plastic molding making machine price

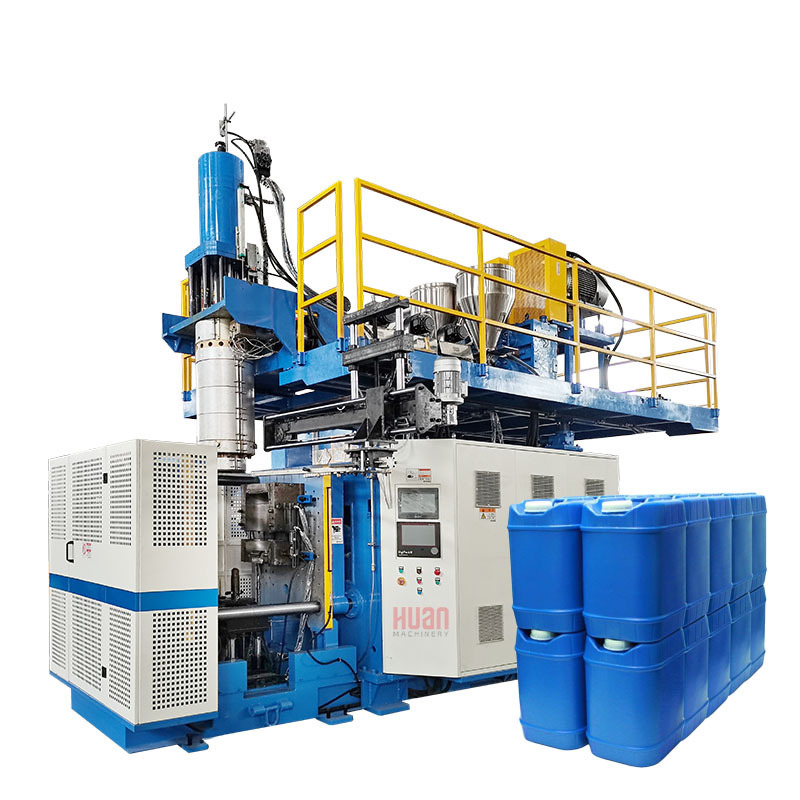

It is 160L accumulating type extrusion blow molding machine
BSM100N-160L
machine for producing HDPE, PP, PVC max.160L plastic products, like Hdpe pontoon,160l water tank ,IBC tank ,hdpe bottle, jerrycan, can,container, drum, and plastic jar. Quick extrusion, stable running, easy operation and mature technology.
|
Specification
|
BSM100N-160L
|
|
Max product volume (L)
|
160
|
|
Machine weight (T)
|
20
|
|
Machine size(m)
|
6.8X3.X5.3
|
|
Screw diameter (mm)
|
100
|
|
Length/Diameter ratio
|
28/1
|
|
Extrusion motor power (kw)
|
55
|
|
Plasticizing capacity (kg/h)
|
215
|
|
Head type
|
accumulating
|
|
Clamping force (KN)
|
780
|
|
Platen size (mm)
|
1100*1400
|
|
Platen opening stroke (mm)
|
600-1400
|
|
Max mould size (mm)
|
900*1800
|
|
Mould thickness (mm)
|
610-780
|
|
Total power (kw)
|
160
|
|
Average energy consumption (kw)
|
56
|
Product Details
Extrusion system:
Head system:
Accumulating type, material ejection with first in first out method. Head structure is designed by our professional engineer, flow
stable and quick. Use parison controller for controlling the thickness of jerrycans, to make sure thickness uniform. Besides, we
also could adjust thickness range by controller’s operating version.
stable and quick. Use parison controller for controlling the thickness of jerrycans, to make sure thickness uniform. Besides, we
also could adjust thickness range by controller’s operating version.
Clamping system:
It has clamping plate and cylinder, linear guide, slider, transducer... Mold is fixed on the plate. All components make sure mechanical movement precision, stable and quick!
Electrical control:
It has operation touch screen, PLC, contact switch, air switch, delay, voltage stabilized power, inverter ...We could input,
modify and monitor the parameter of heating, pressure, time, alarm... to control whole machine’s action parameterby touch screen.
It has two operation languages, Chinese and English.
modify and monitor the parameter of heating, pressure, time, alarm... to control whole machine’s action parameterby touch screen.
It has two operation languages, Chinese and English.
Hydraulic system:
It has hydraulic servo motor and pump, valve, pump, oil tank, oil cooler, tube... Offer power for mechanical action, meanwhile proportional valve is controlled by oil flow pressure for transfer digital signal into mechanical action, to control the action of blow pin, clamping structure, head and extrusion.
In this machine, hydraulic motor uses servo type. Servo system could save about 30% power consumption than normal AC motor, and servo motor is with less noise.
In this machine, hydraulic motor uses servo type. Servo system could save about 30% power consumption than normal AC motor, and servo motor is with less noise.
Customer Photos
Our service
Choosing the suitable machine
We have a professional team, electrical engineers, mechanical engineers, commissioning engineers...Our engineers have been in this field over 18 years, have rich experiences. According to the customer’s plastic products and requirements , we could offer
good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.
good solution based on experiences. And we also could recommend the related auxiliary machines to get a whole production line.
Customer’s visit
Before playing the order, warmly welcome to visit our workshop if customer interests. We will introduce our machines on site.
Delivery time
we will finish manufacturing and testing within delivery time, make sure customer’s production schedule. During the production process, we also will share the production progress photos and testing video with customer.
Warranty time
our warranty time is 12months after the delivery. During this period, any quality problem of the machine, we will send the replacement parts by express freely. If the buyer meet any technical problems, we will provide the support through remote control.
Training, installation:
when the machine reaches the buyer’s factory, the buyer could tell us, we will dispatch an engineer to the buyer’s factory to help install and test the machine until it runs normally. Meanwhile, we also could help train the customer’s employee.
Packing & Shipping
1) The machine body is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.
2) The electric controlling parts and spare parts are loaded separately in wooden box.
3) The auxiliary equipments are packaged in wooden box as well.
4) All wooden material is fumigation certificated and safe for exporting to all over the world.
