Quick Details
-
Forming Time:
-
/
-
Welding Mode:
-
Seam welding, XYSWFN-75/100/125/160/200/250
-
Welding Diameter:
-
80mm-100mm
-
Dimensions:
-
/
-
Use:
-
Welding Machine
-
Voltage:
-
/
-
Weight (KG):
-
350 KG
-
Product name:
-
Automatic Seam Welding Machine
-
Application:
-
seam welding
-
Welding Type:
-
seam welding
-
Function:
-
Welder Work
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XY
-
Forming Time:
-
/
-
Welding Mode:
-
Seam welding, XYSWFN-75/100/125/160/200/250
-
Welding Diameter:
-
80mm-100mm
-
Dimensions:
-
/
-
Use:
-
Welding Machine
-
Voltage:
-
/
-
Weight (KG):
-
350 KG
-
Product name:
-
Automatic Seam Welding Machine
-
Application:
-
seam welding
-
Welding Type:
-
seam welding
-
Function:
-
Welder Work
Product Description
Seam welding machine is an evolution of spot welding, seam welding is generally used in the manufacture of joints requiring tightness, and sometimes it is also used to weld ordinary non-sealed sheet metal parts, and the thickness of the welded metal material is usually 0.1~2.5mm.
| Model |
Rated power
(KVA)
|
Rated primary voltage
(V)
|
Welding speed(m/min)
|
Secondary no load voltage
(V) |
Duty cycle
(%)
|
Max. welding thickness
(mm)
|
Maximum operating pressure
(KN)
|
Cooling water energy consumption
(L/h)
|
| XYSWFN-75 | 75 | 380 | 0.6-4 | 1.08-7.02 | 50 | 1.0+1.0 | 6.3 | 820 |
| XYSWFN-100 | 100 | 380 | 0.5-3.2 | 1.12-7.38 | 50 | 1.2+1.2 | 6.3 | 960 |
| XYSWFN-125 | 125 | 380 | 0.5-2.8 | 1.26-8 | 50 | 1.5+1.5 | 8.6 | 1080 |
| XYSWFN-160 | 160 | 380 | 1.5-1.5 | 1.3-8.5 | 50 | 1.8+2.0 | 8.6 | 1080 |
| XYSWFN-200 | 200 | 380 | 0.5-1.2 | 2.2-9.0 | 50 | 2.0+2.5 | 8.6 | 1080 |
| XYSWFN-250 | 250 | 380 | 0.5-1.2 | 1.3-9.7 | 50 | 2.5+3.0 | 8.6 | 1080 |

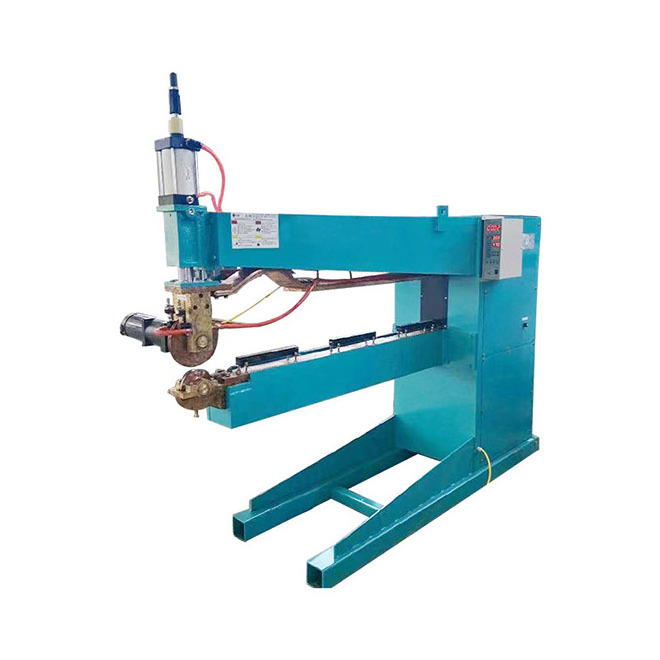

Detailed Images
