48v/51.2v
5kWh（100AH）/10kWh（200AH）
- Product Details
- {{item.text}}
Quick Details
-
Dimension (L*W*H):
-
670*330*697
-
Weight:
-
102kg
-
Product name:
-
lithium ion batteries 48v
-
Cycle life:
-
6500 Times
-
Battery cell:
-
3.2V LifePO4
-
Application:
-
Home Appliances
-
EU Warehouse:
-
Hamburg
-
BMS:
-
Built-in
-
OEM/ODM:
-
Accepatable
-
Color:
-
White
-
MOQ:
-
1 Pcs
-
Protection:
-
IP54
Quick Details
-
Model Number:
-
LFP 9kWh/HV//-LFP 30kWh/HV
-
Brand Name:
-
Sunket
-
Place of Origin:
-
China
-
Dimension (L*W*H):
-
670*330*697
-
Weight:
-
102kg
-
Product name:
-
lithium ion batteries 48v
-
Cycle life:
-
6500 Times
-
Battery cell:
-
3.2V LifePO4
-
Application:
-
Home Appliances
-
EU Warehouse:
-
Hamburg
-
BMS:
-
Built-in
-
OEM/ODM:
-
Accepatable
-
Color:
-
White
-
MOQ:
-
1 Pcs
-
Protection:
-
IP54
The
LFP 9kWh/HV

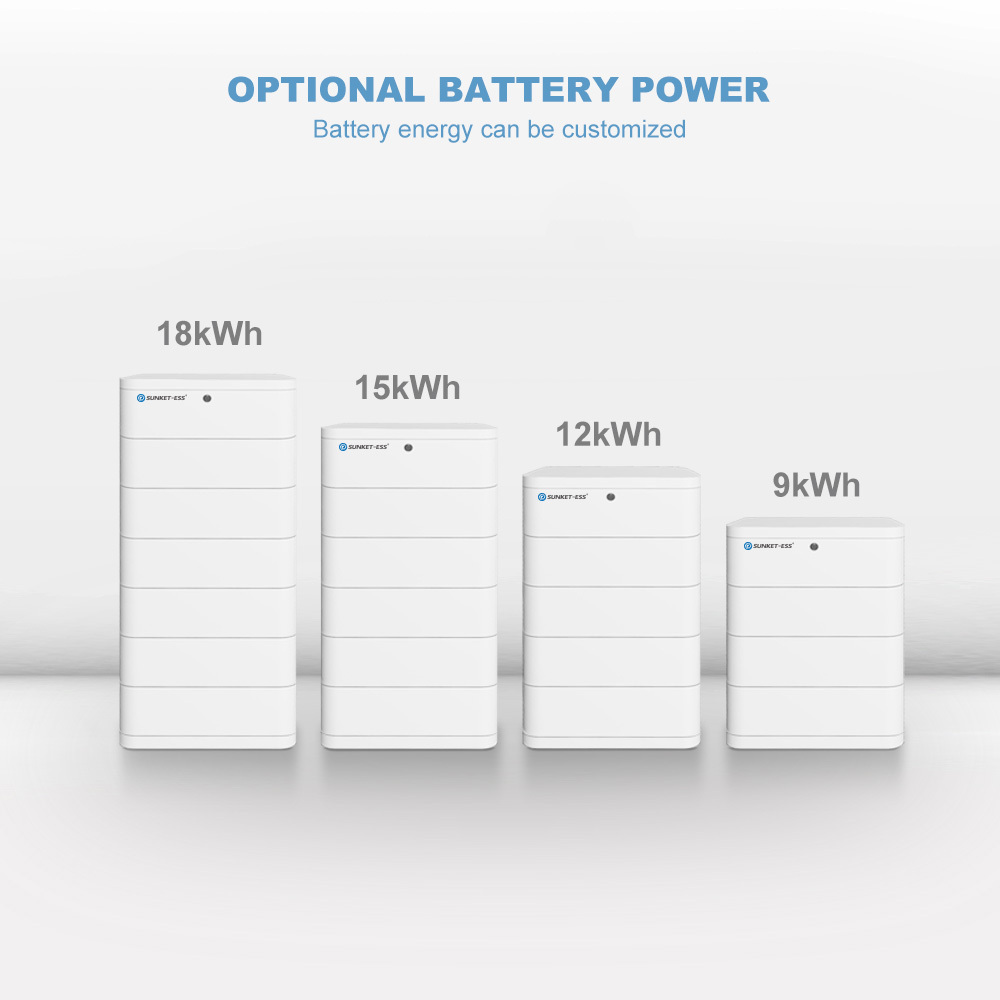

home battery is modular in 2.88 kWh increments, providing a capacity range of 8.64kWh-28.8kWh per stack. This also allows for easy servicing and future expansion. With continuous output at up to 14.4kW, true full-home backup is here.
Product Introduction
The
lithium iron phosphate battery
(
LiFePO4 or LFP
) is the safest of the mainstream lithium battery types. A single LFP cell has a nominal voltage of 3.2V. A 57.6V LFP battery consists of 18 cells connected in series. LFP is the chemistry of choice for very demanding applications.
Some of its features are:
Rugged - It can operate in deficit mode during long periods of time.
High round trip efficiency.
High energy density - More capacity with less weight and volume.
High charge and discharge currents - Fast charges and discharges are possible.
Flexible charge voltages.
Technical Specifications
|
Module Type
|
LFP 9kWh
|
LFP 12kWh
|
LFP 15kWh
|
LFP 18kWh
|
LFP 21kWh
|
LFP 24kWh
|
LFP 27kWh
|
LFP 30kWh
|
|||||||
|
Usable Energy
|
8.64kWh
|
11.52kWh
|
14.40kWh
|
17.28kWh
|
20.16kWh
|
23.04kWh
|
25.92kWh
|
28.80kWh
|
|||||||
|
Battery Module
|
LFP 3000 / HV : 57.6V 50Ah
|
|
|
|
|
|
|
|
|||||||
|
Number of Modules
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|||||||
|
Nominal Voltage
|
172.8V
|
230.4V
|
288V
|
345.6V
|
403.2V
|
460.6V
|
518.4V
|
576V
|
|||||||
|
Operating Voltage Ranges
|
135-197.1V
|
180-262.8V
|
225-328.5V
|
270-394.2V
|
315-459.9V
|
360-525.6V
|
405-591.3V
|
450-657V
|
|||||||
|
Nominal Dis-/Charge Current
|
25 / 50A
|
|
|
|
|
|
|
|
|||||||
|
Max. Charge Voltage
|
197.1V
|
262.8V
|
328.5V
|
394.2V
|
459.9V
|
525.6V
|
591.3V
|
657V
|
|||||||
|
Weight
|
102kg
|
131kg
|
160kg
|
189kg
|
218kg
|
247kg
|
276kg
|
305kg
|
|||||||
|
Dimension(mm)
|
670*330*697
|
670*330*855
|
670*330*1013
|
670*330*1171
|
670*330*1329
|
670*330*1487
|
670*330*1645
|
670*330*1803
|
|||||||
|
Safety
|
CE,UN38.3,IEC62619,IEC63056,IEC62477
|
|
|
|
|
|
|
|
|||||||
