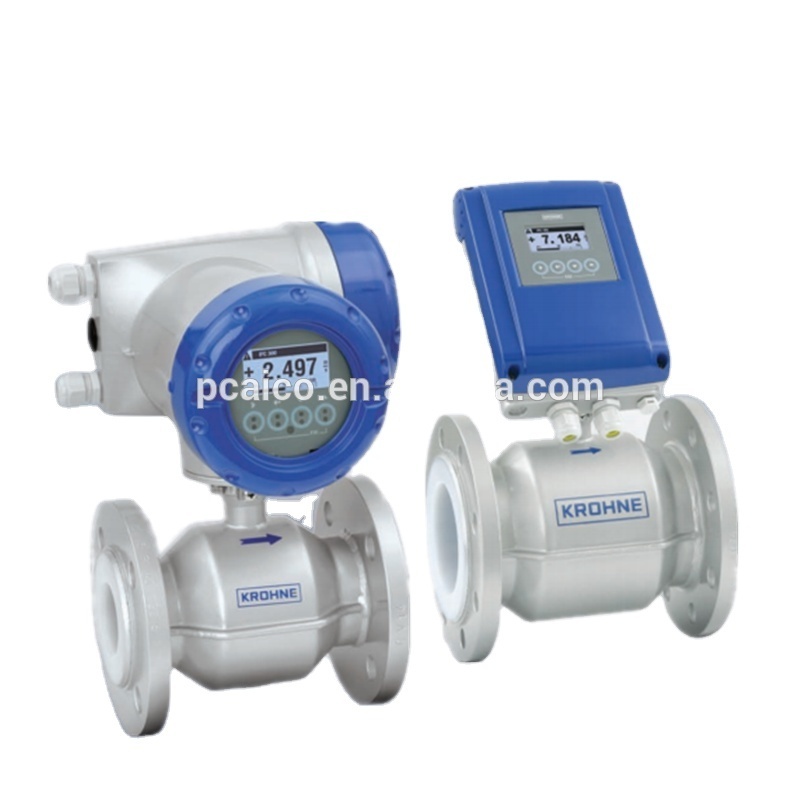

Krohne Krohne OPTIFLUX4300 Electromagnetic flow meter

Krohne OPTIFLUX4000 OPTIFLUX4100C OPTIFLUX4040C OPTIFLUX4300C Electromagnetic flow meter

1.Standard solution for the process industry

The OPTIFLUX4000 OPTIFLUX4100 OPTIFLUX4300 electromagnetic flow sensor isthe standard in the process industry and suitable even for demanding applications.

1 All hazardous area approvals

2 Housing and flanges available in stainless steel

3 Most dimensionally stable PFA liner with stainless steel mesh

2.Highlights Krohne OPTIFLUX4100 ,OPTIFLUX4300 Electromagnetic flow meter

• Standard device in the process industry

• Robust and reliable

• More than 300,000 units operating in the field

• Works reliably under demanding conditions: High temperatures (up to 180°C / 356°F) and low

conductivity (non-water from 1 µS/cm, water from 20 µS/cm)

• Quick and easy to install and operate

• Chemically resistant to alkaline solutions and acids

3.Industries Krohne OPTIFLUX4100 ,OPTIFLUX4300 Electromagnetic flow meter

• Chemicals

• Pulp & Paper

• Water

• Wastewater

• Minerals & Mining

• Iron, Steel & Metals

• Pharmaceuticals

• Oil & gas

4.Applications for Krohne OPTIFLUX4100 ,OPTIFLUX4300 Electromagnetic flow meter

For clean liquids
• For slurries and pastes with high solids content
• For abrasive and aggressive products

5.  The solution for any industry

Electromagnetic flowmeterscan be installed in
random locations, demanding the instrument to be
suitable for any kind of environment. These locations vary from indoor use (integrated in complex processes) to outdoor use (straight forward transport, but possibly buried or submerged). The ability to read the measured results on-site may be standard, but it does not always meet the current and actual needs ofthe user or operator. That is why this meter comes with optional, state-of-the-art bus communication systems. The stored data is transmitted by HART ® , Profibus, Fieldbus or Modbus, and then forwarded to a management system.

The OPTIFLUX4000 has been designed for
measuring any application in any industry and is
often referred to as "mother of all electromagnetic
flowmeters", suitable for all standard and special
applications, including "commercial" use according to European Directive MI-001 and -005. The level of precision complies with the industry demands, furthermore does the modular concept allow tailormade solutions. All meters are passing specific trials, measurements and tests that go beyond the legal specifications - and on which our customers can rely 100%. For example, we subject the converter electronics to a series of extensive temperature change tests, in which the converter is exposed to cyclical fluctuations ( -20...+65°C / -4...+149°F) Every meter that leaves our factory is first wetcalibrated on our officiallycertified calibration rigs (EN 17025). directly in the ground.

Custody transfer

I n combination with the IFC300 converter the

OPTIFLUX2000 is suitablefor custody transfer

applications. It meets the requirements of OIML R49

and can be verified according to Annex MI-001 of the Measuring Instruments Directive (MID). All water meters for legal metrolog y purposes in Europe require certification under the MID. The EC type examination certificate for the OPTIFLUX 2300 is valid for the compact and the remote version and applies for forward and reverse flow.

6. Technical data for Krohne OPTIFLUX4100 ,OPTIFLUX4300 Electromagnetic flow meter

Measuring system
